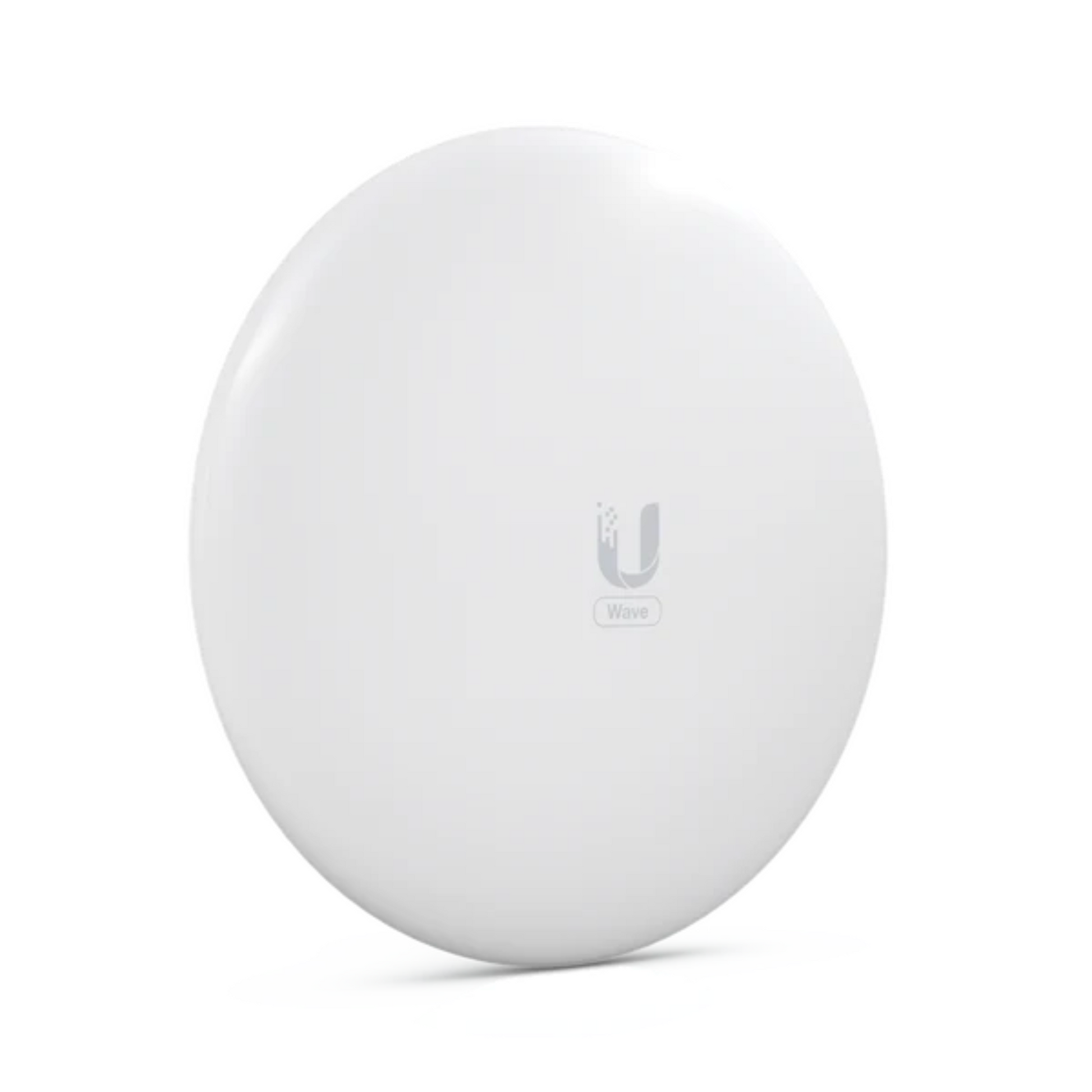

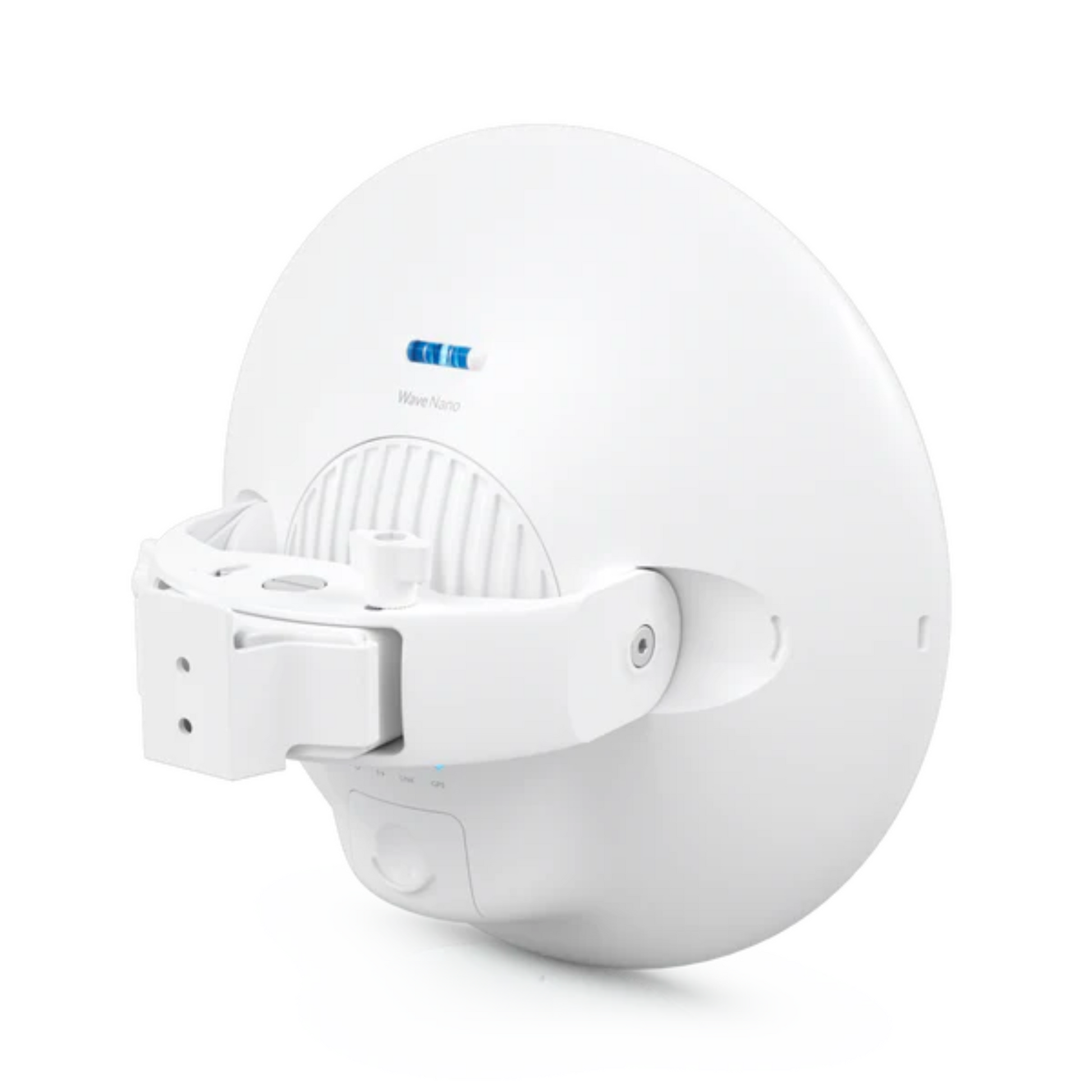

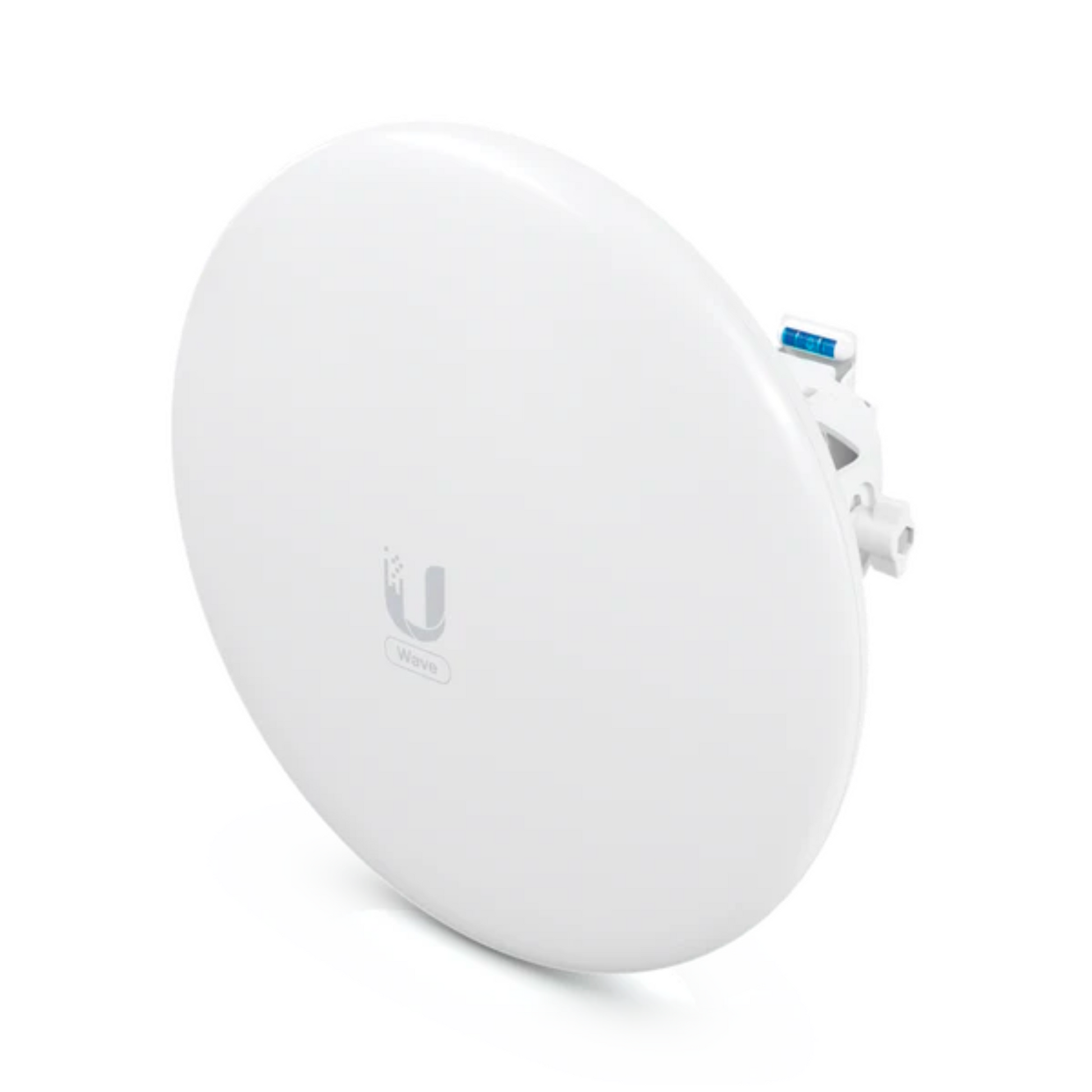

Ubiquiti Wave Nano US Version [Wave-Nano-US]

Out of stock
$279.00 USD

Product details

  • Type Outdoor Wireless
  • Vendor Ubiquiti
  • SKU Wave-Nano-US

Documentation

Share on Social Media:

Description

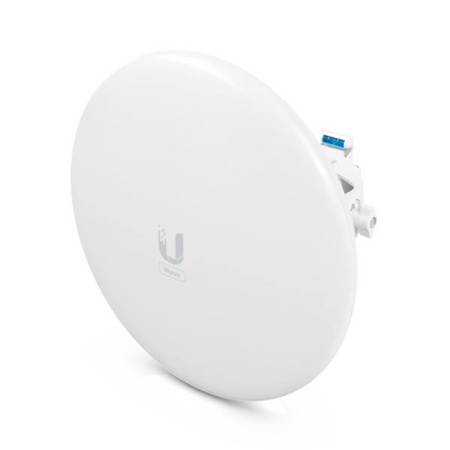

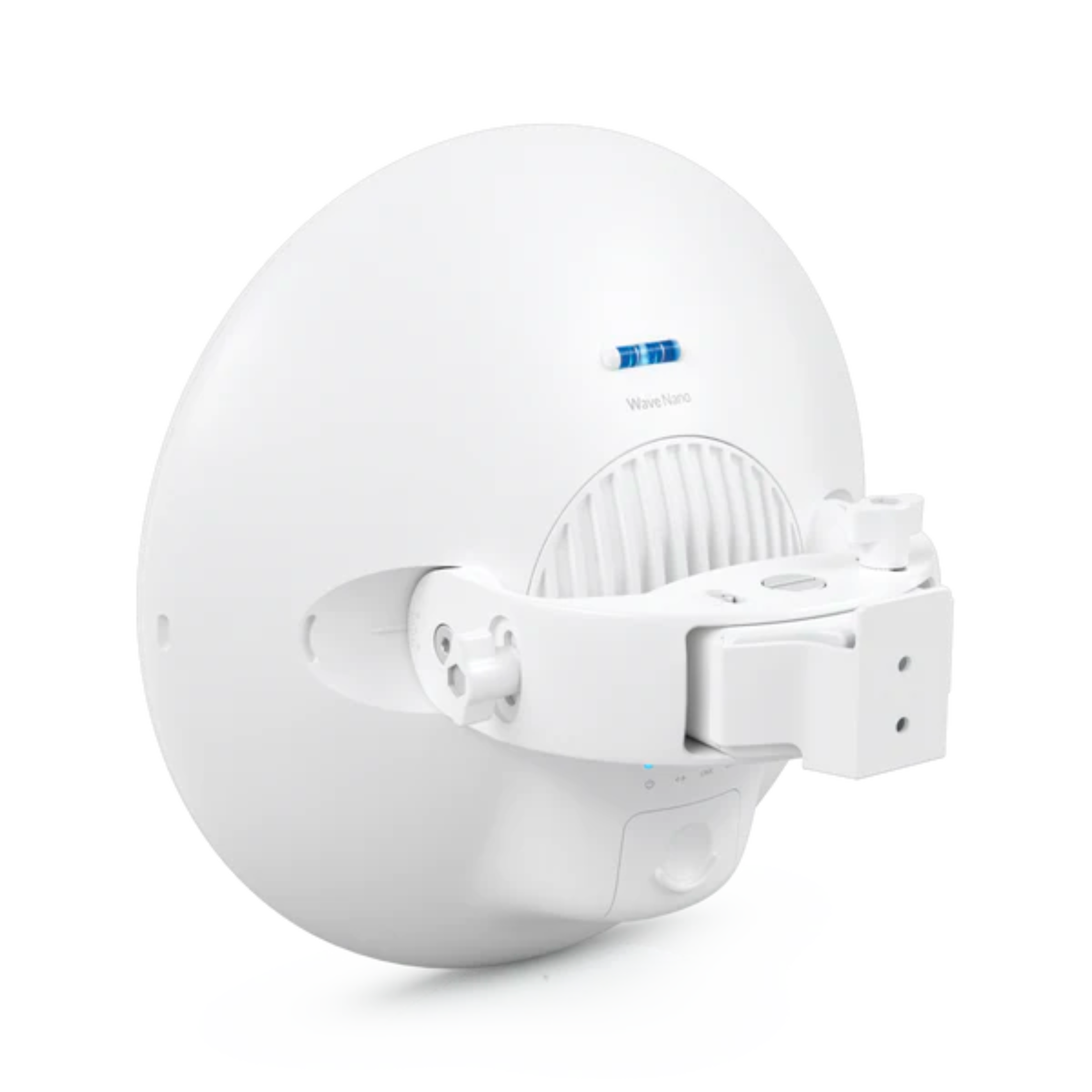

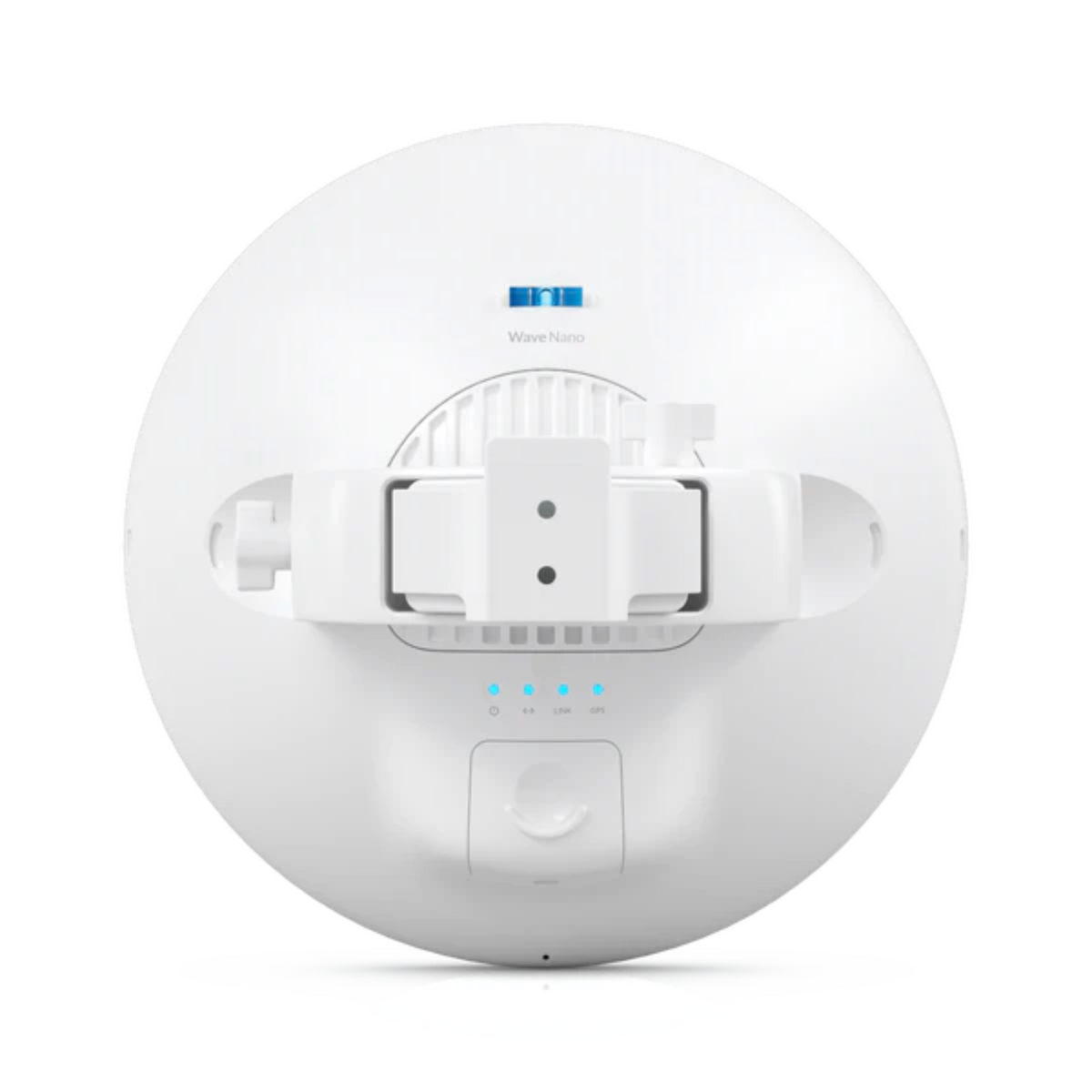

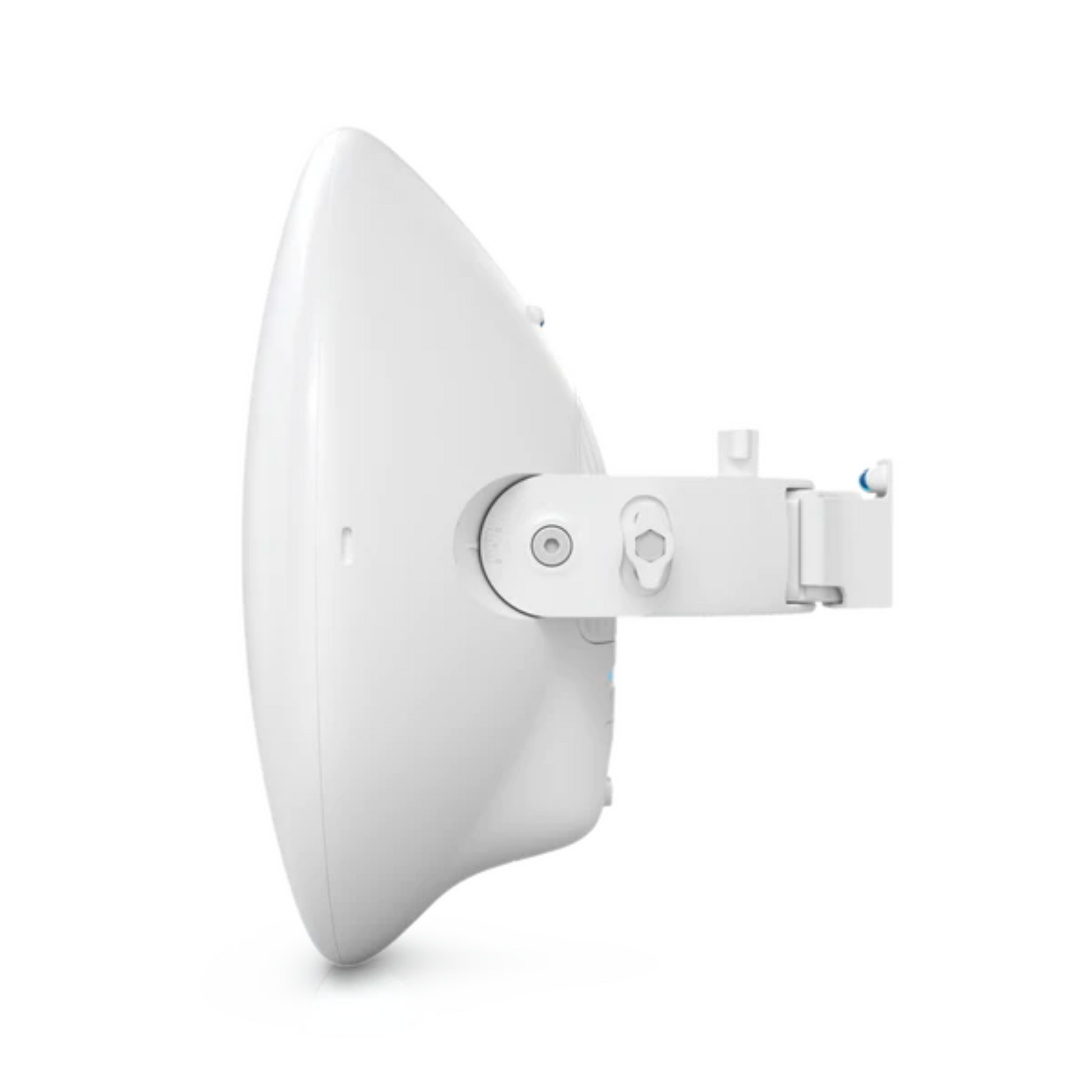

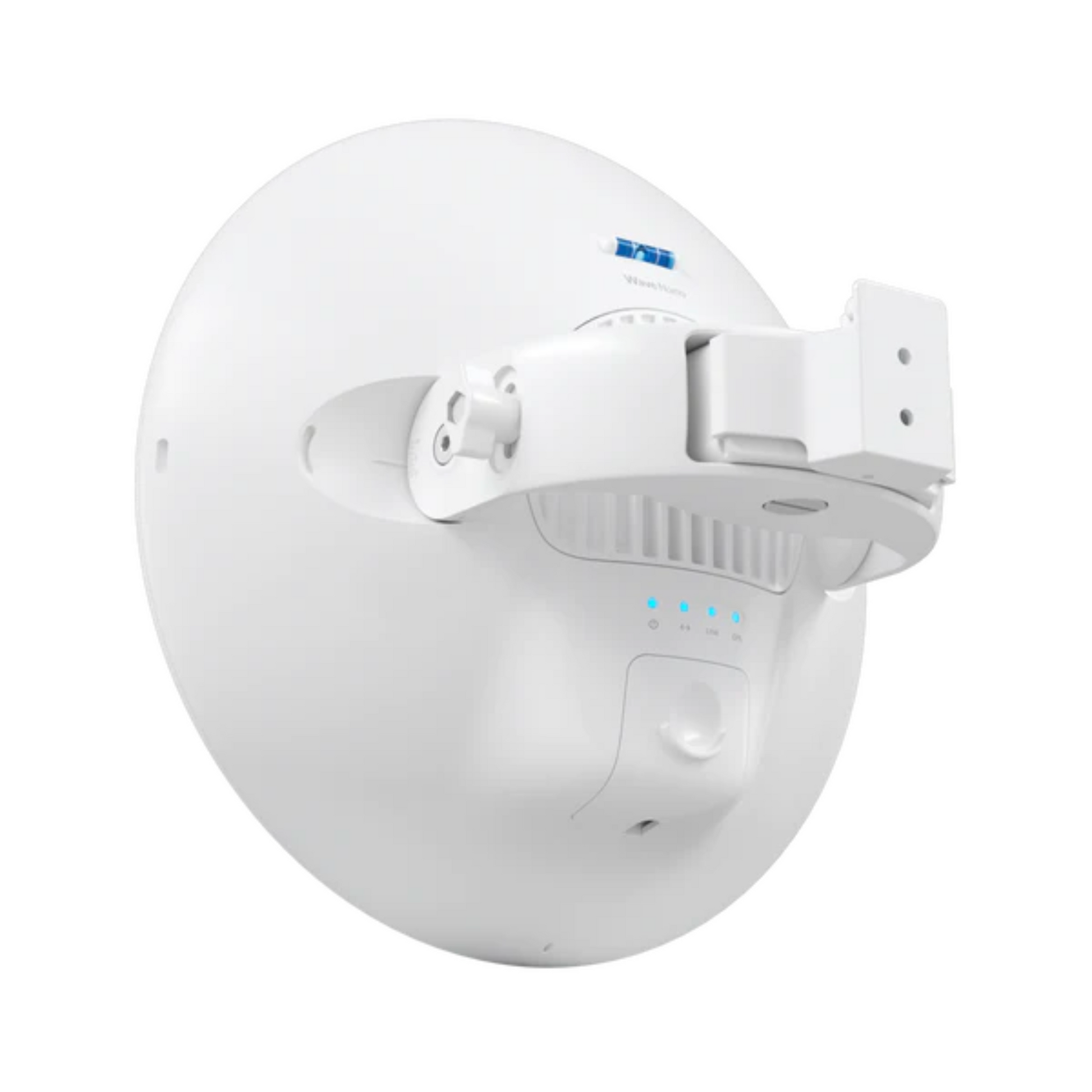

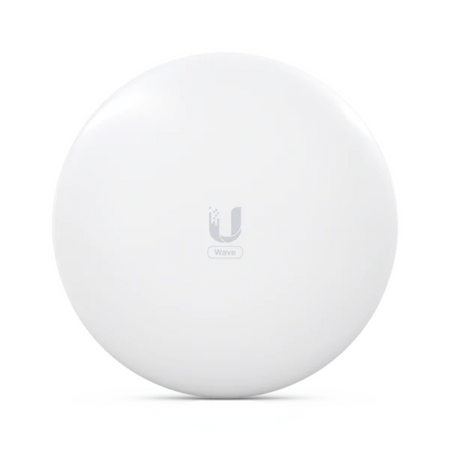

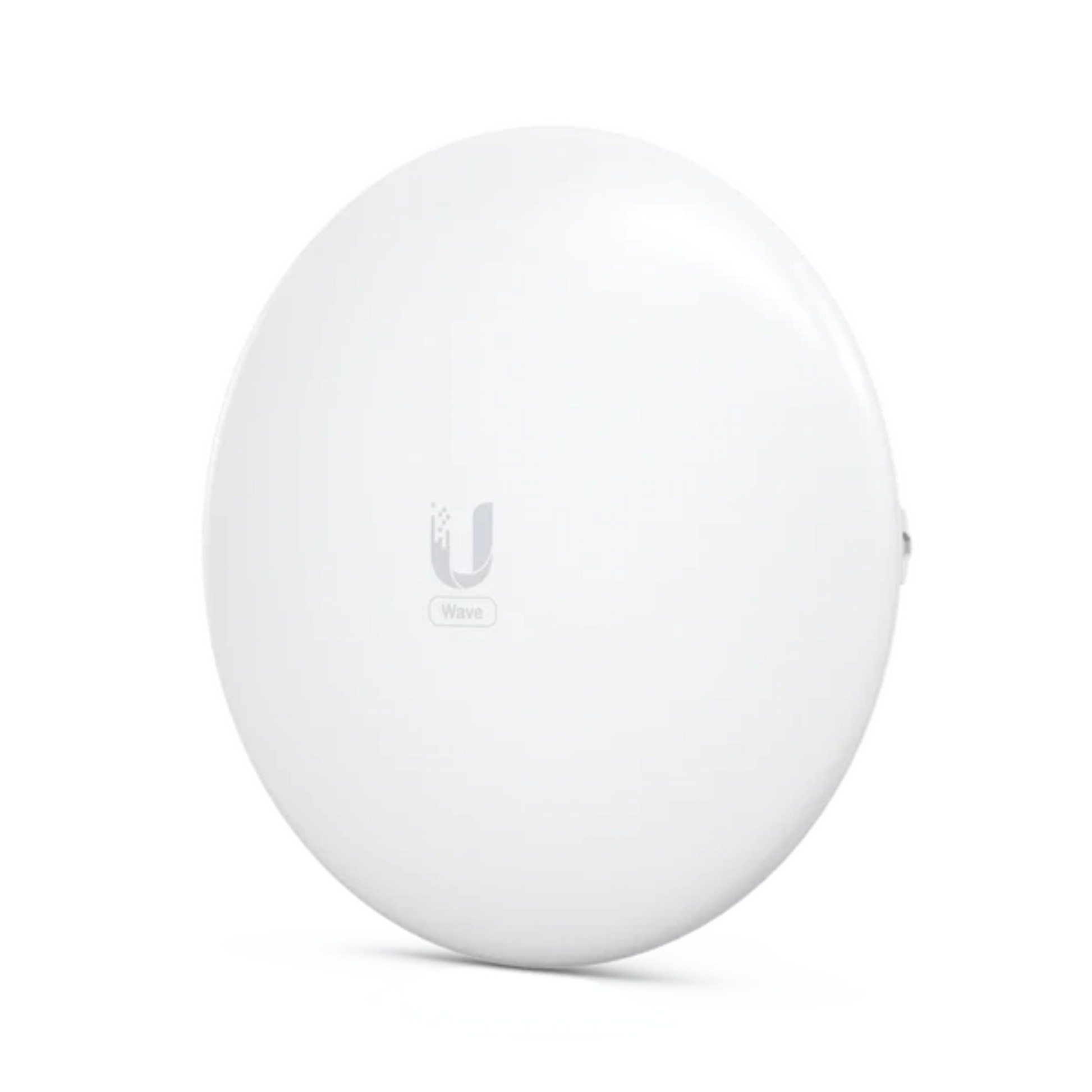

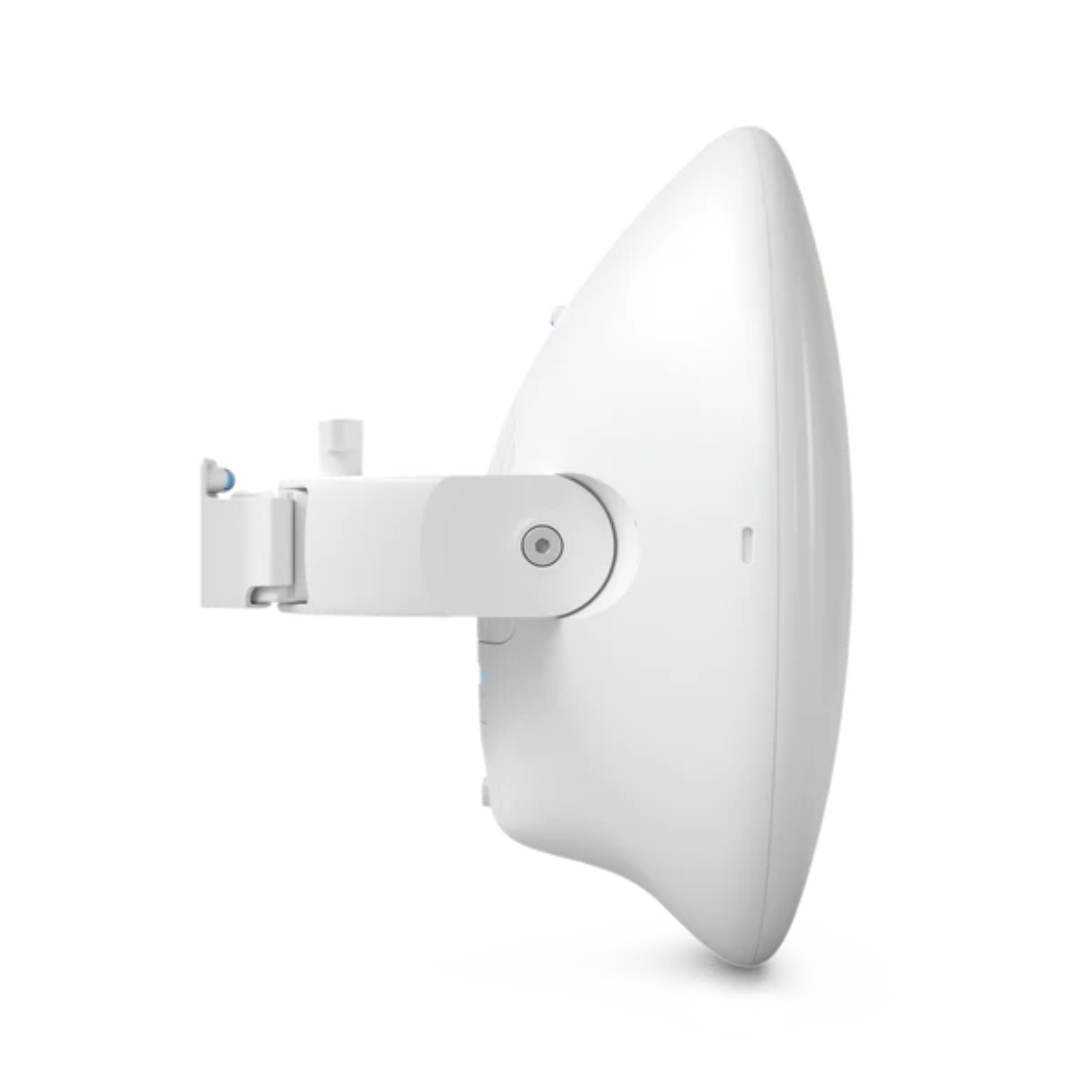

60 GHz PtMP station powered by Wave Technology.

Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Product Features:
  • 5 GHz backup radio
  • Link range: up to 5 km
  • Router mode support
  • Integrated GPS antenna
  • Link planning support via ISP Design Center

Managed with UISP application: Version 1.4.5 and later


Product Specifications:

Mechanical

  • Dimensions: Ø256.5 x 113.5 mm (Ø10.1 x 4.5")
  • Weight:
    • Without mount: 932 g (2.1 lb)
    • With mount: 1.2 kg (2.6 lb)
  • Enclosure materials: Aluminum alloy, UV stabilized plastic
  • Mount materials: Aluminum alloy, UV stabilized plastic
  • Pole mount diameter: 25 to 63.5 mm (1 to 2.5") on pipe outer diameter
  • Wind loading: 127 N at 200 km/h (28.6 lbf at 125 mph)
  • Weatherproofing: IPX6


Hardware

  • Processor: Dual ARM® Cortex®-A53 cores at 1 GHz
  • Memory: DDR3L 512 MB
  • Networking interface: (1) GbE RJ45 port
  • Max. power consumption: 18W
  • Power method
    • 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
    • 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
  • Power supply:
    • 48V DC, 0.65A gigabit PoE adapter (included)
    • Can be powered by a UISP Router or UISP Switch
  • GPS: Yes
  • Button: Factory reset
  • LEDs: Power, Ethernet, GPS, link
  • Operating temperature: -40 to 60° C (-40 to 140° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: FCC, IC, CE

Software

  • OS: airOS®
  • Operating mode: PtMP station
  • Ubiquiti specific features: Wave AI, discovery protocol
  • Services: UISP, ping watchdog, NTP client, SNMP
  • Tools: Antenna alignment, discovery utility, ping, trace route, speed test
  • Network: Bridge/Router mode
  • Software management: Bluetooth management for easy setup over UISP app WEB UI
  • Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone

System

  • Total throughput: 2 Gbps (1 Gbps duplex)
  • Maximum range: 5+ km
  • Encryption: WPA2-PSK (AES)
