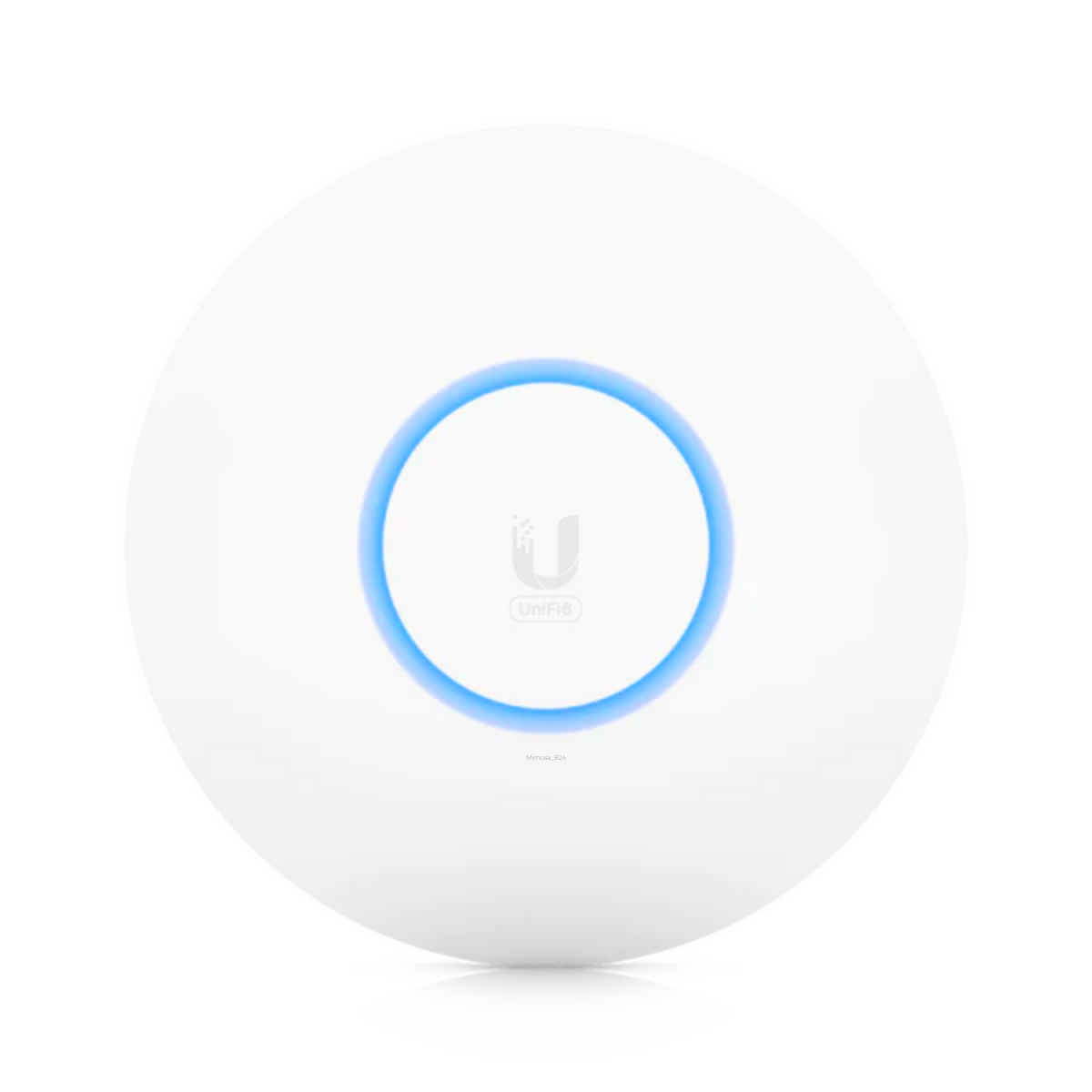

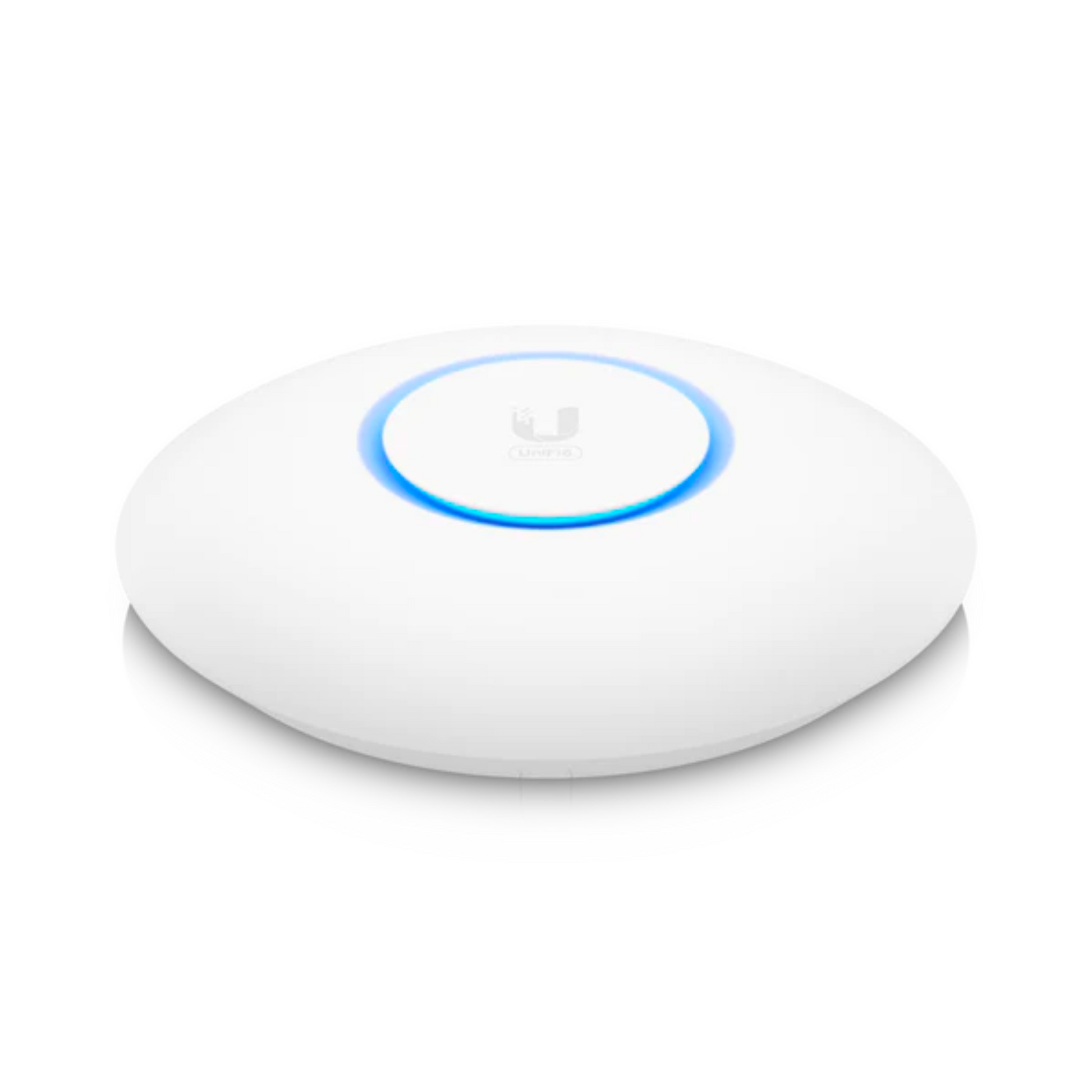

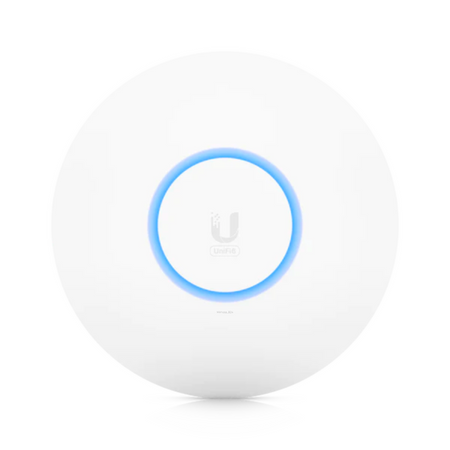

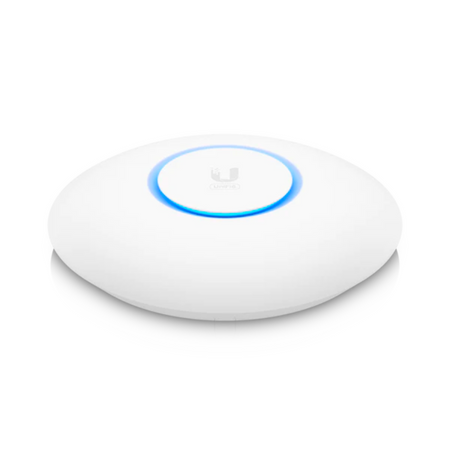

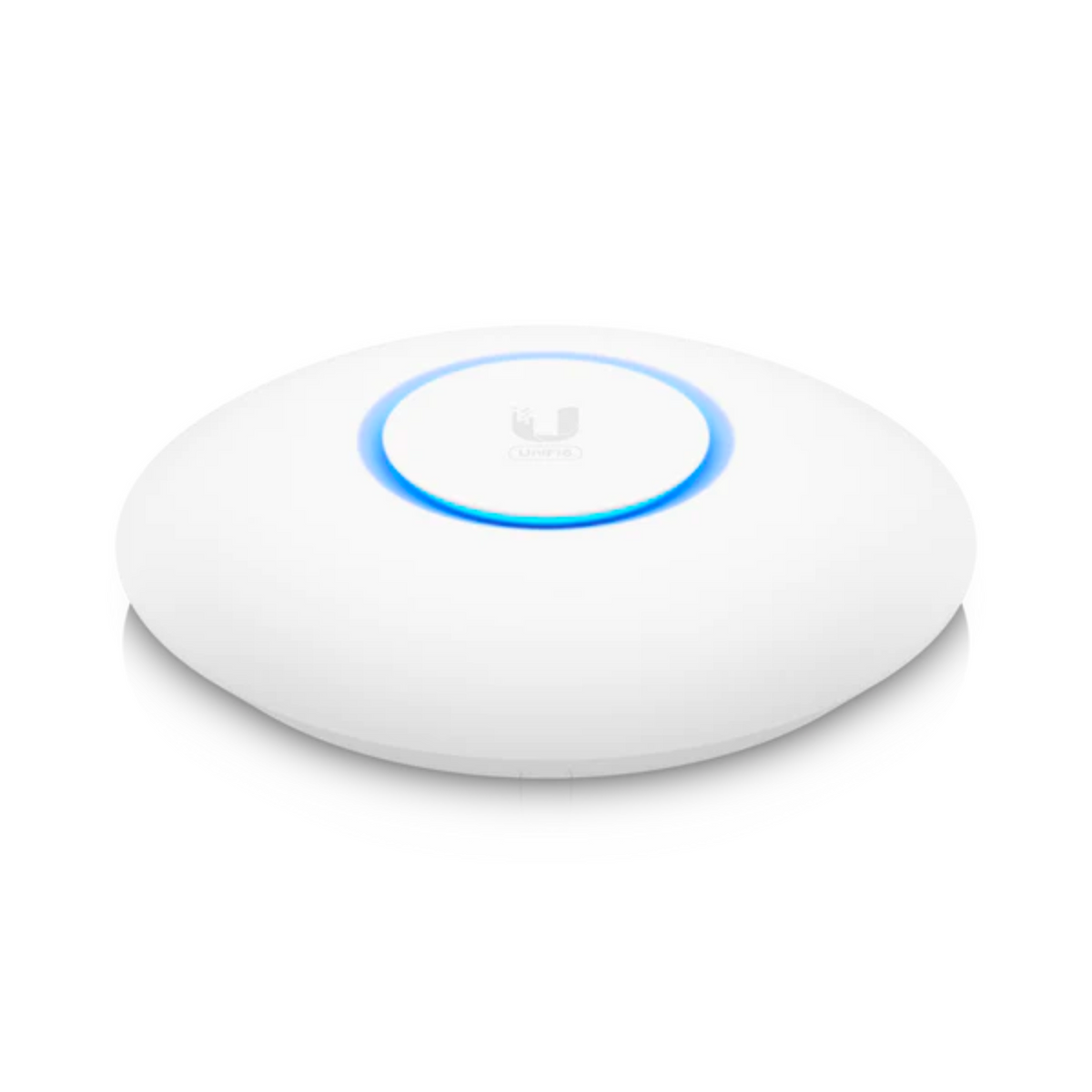

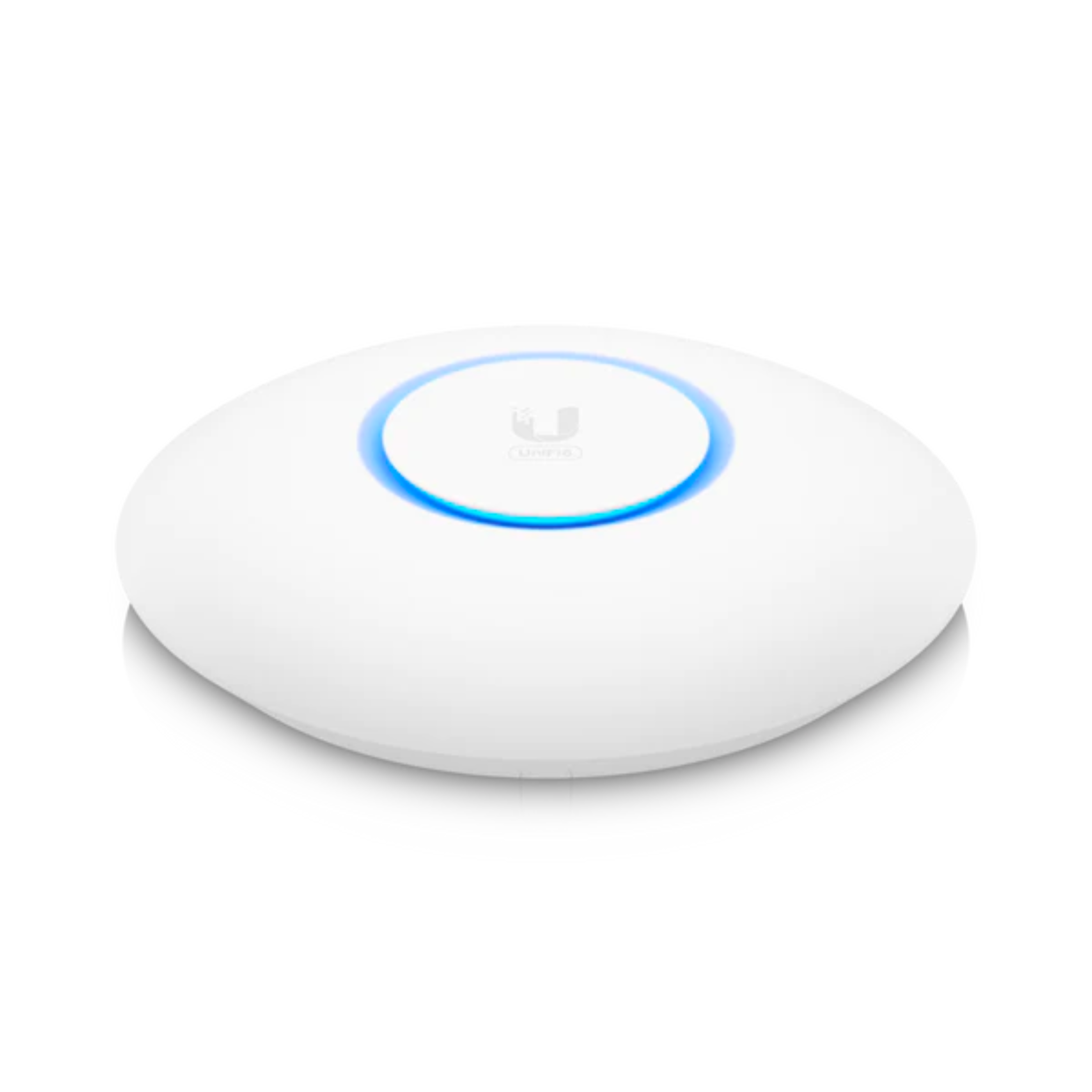

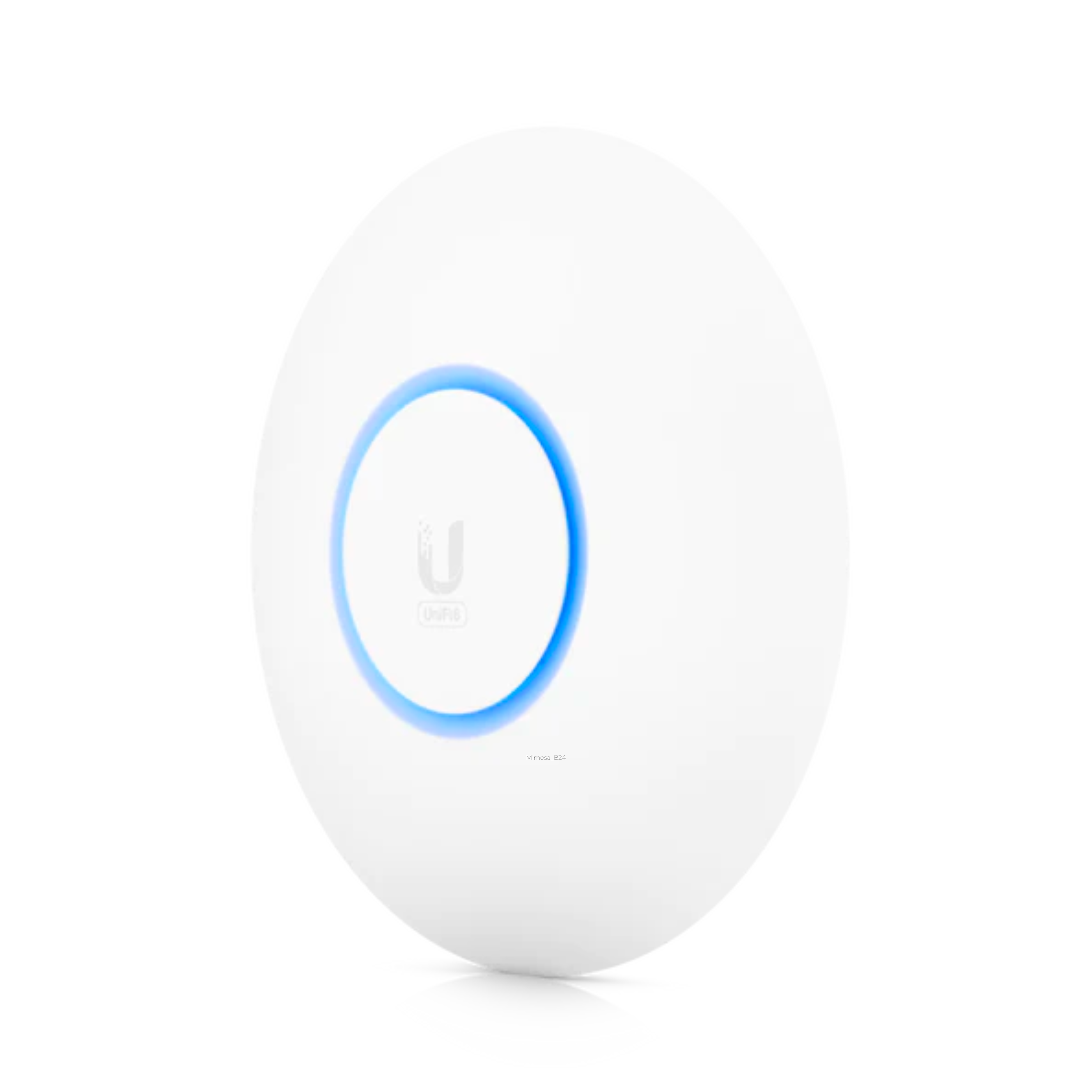

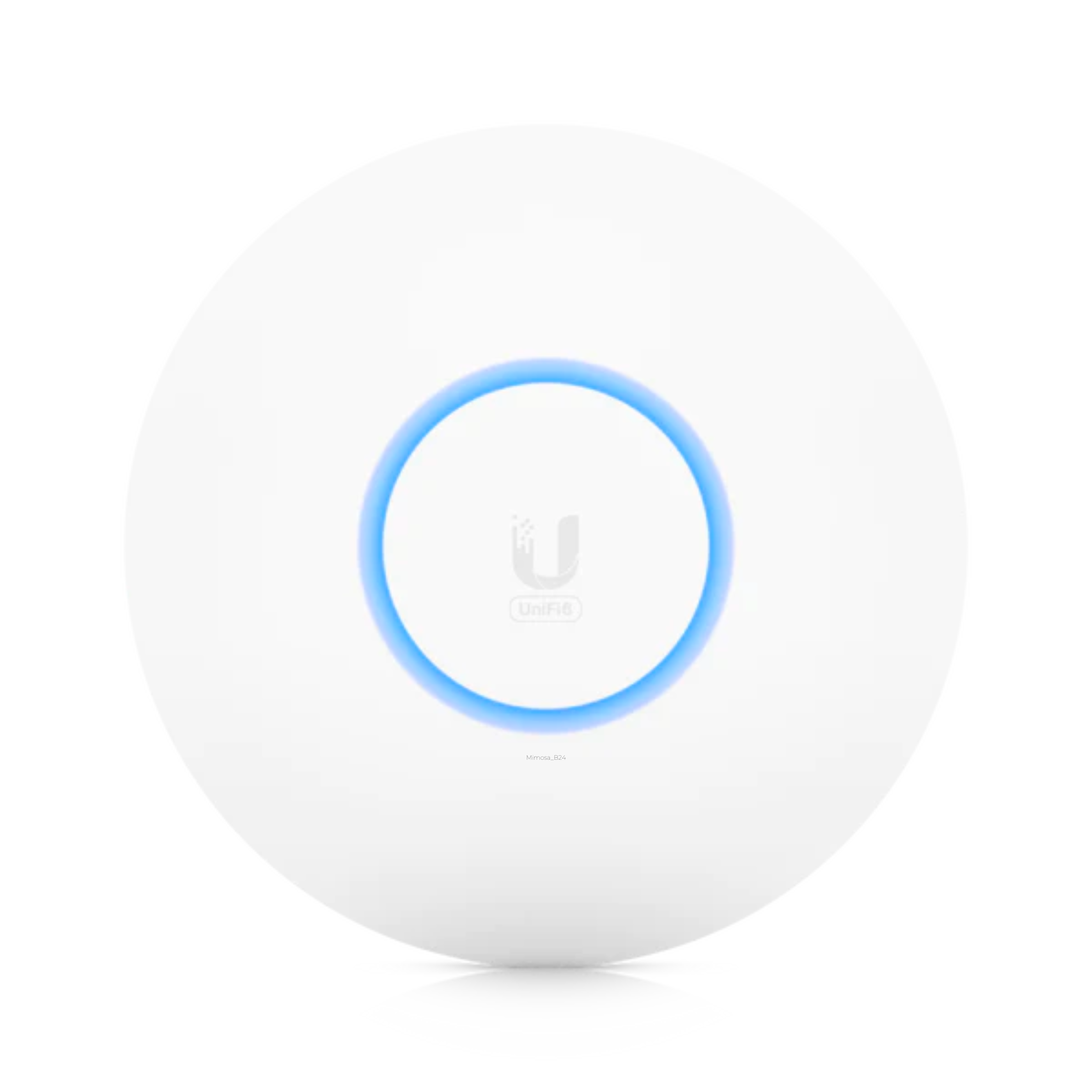

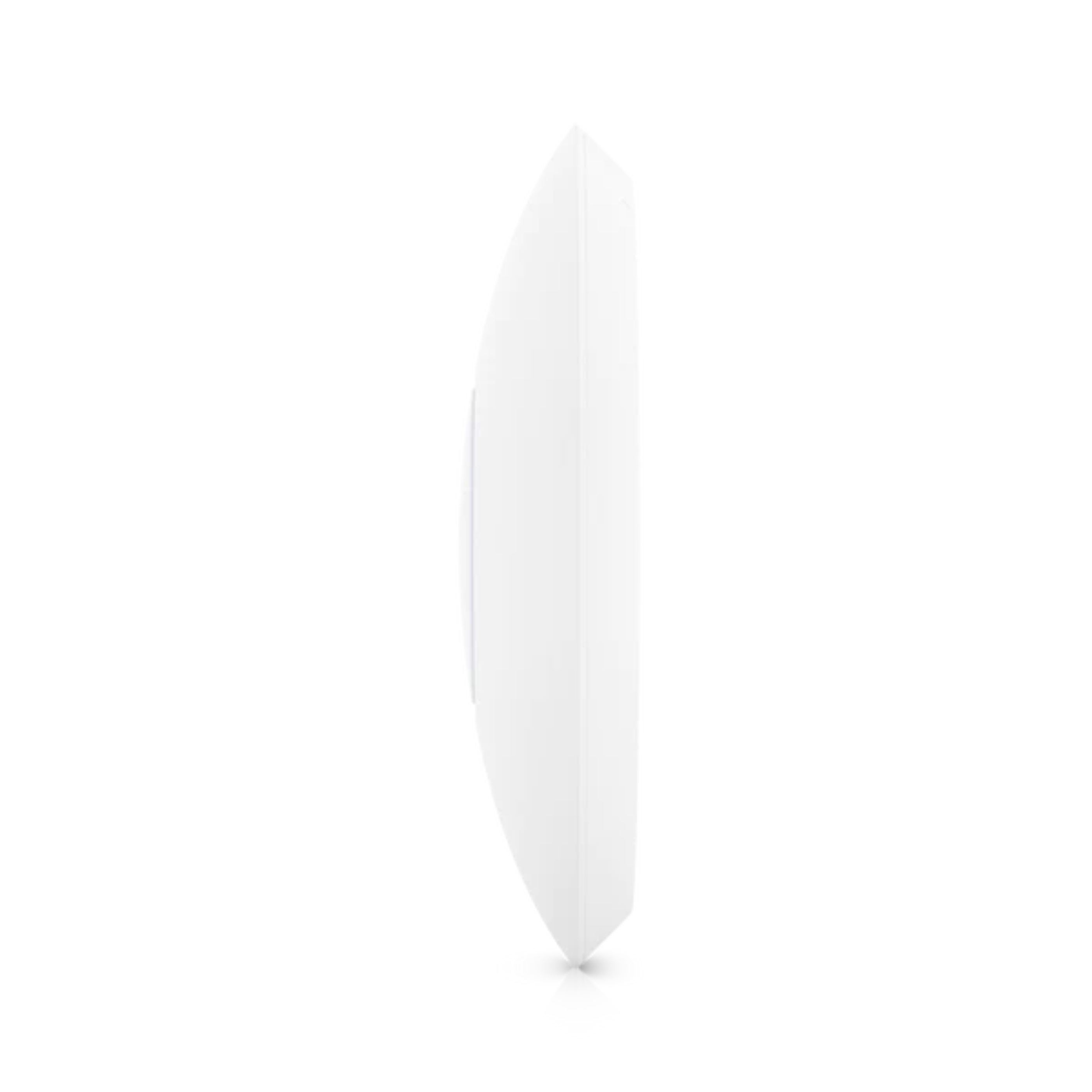

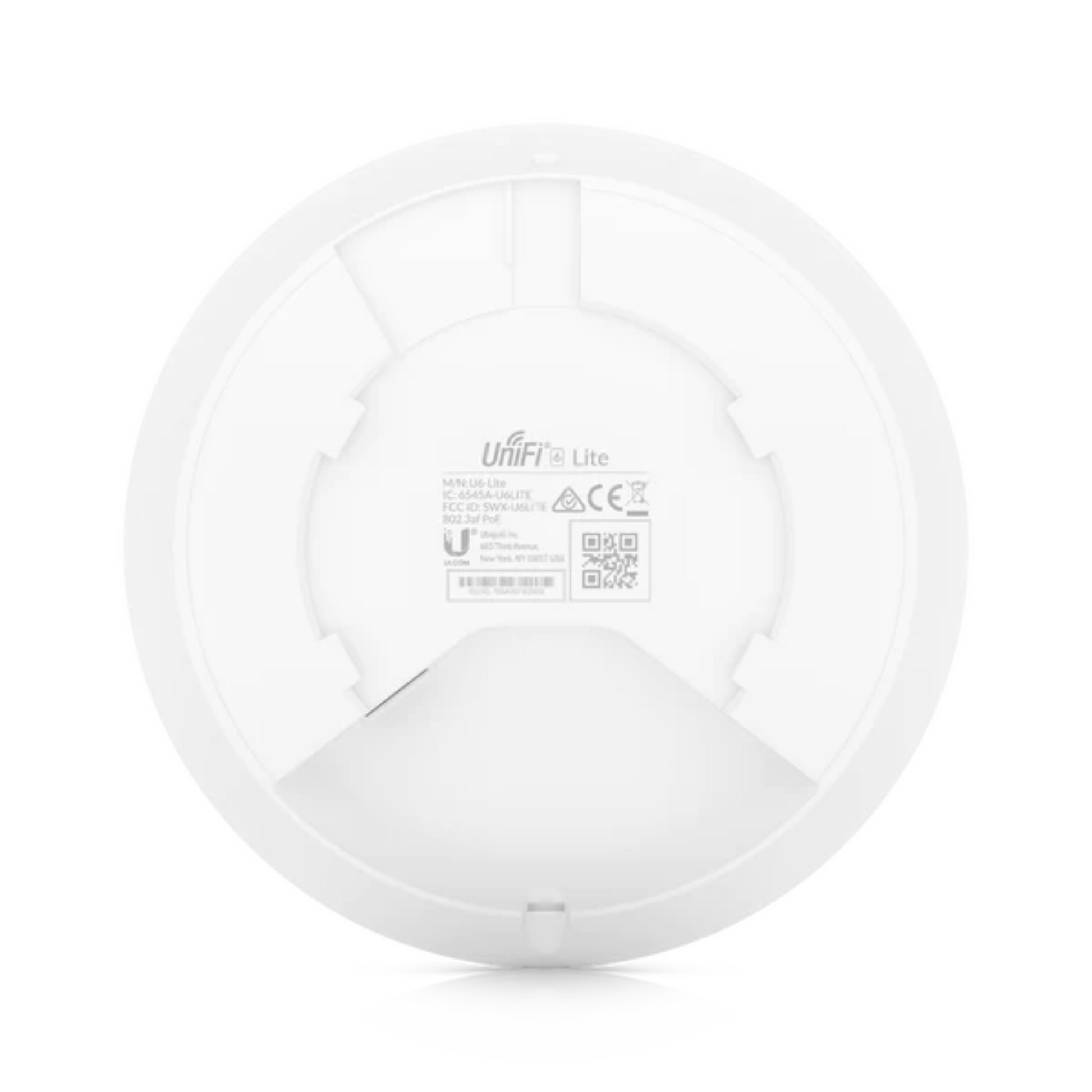

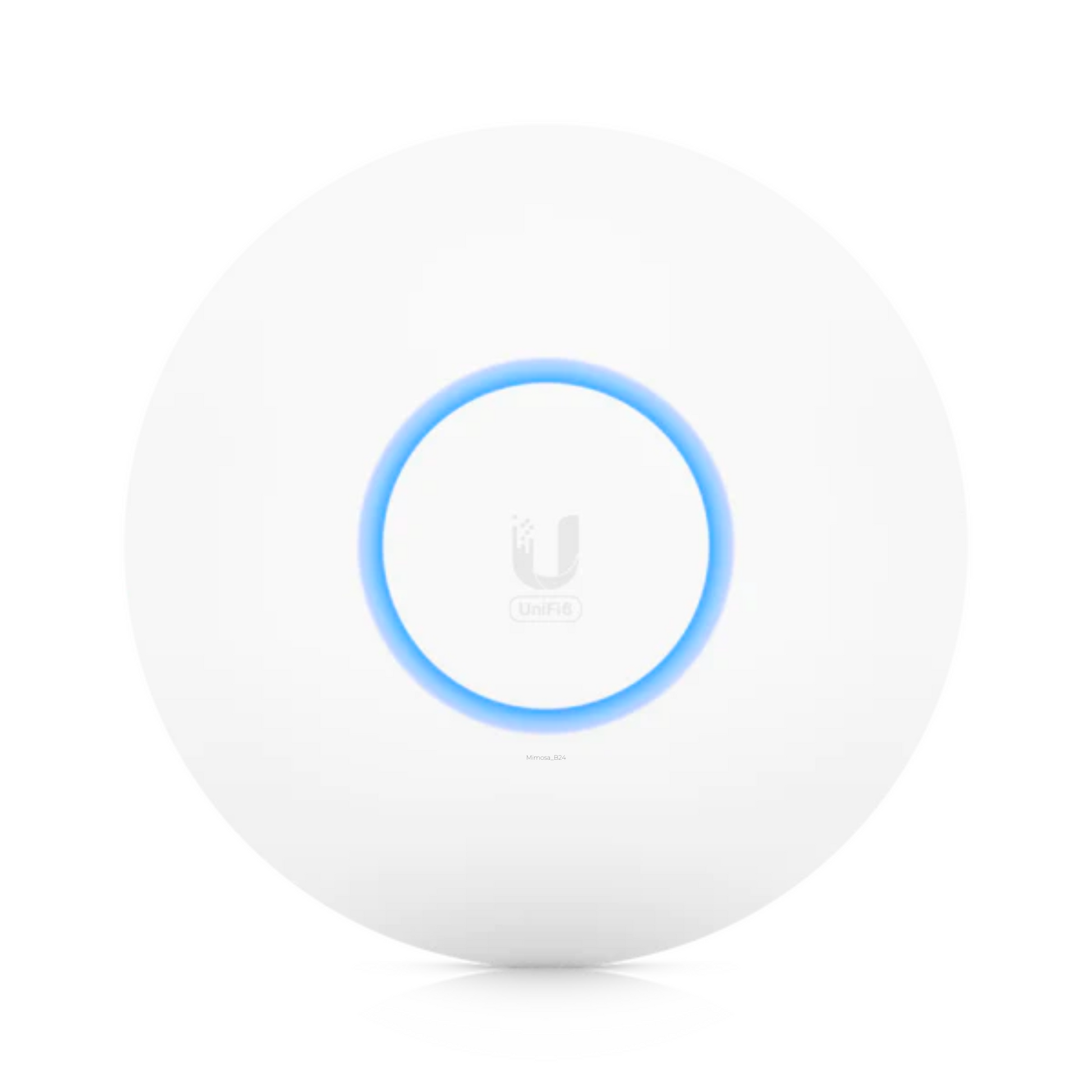

Ubiquiti UniFi U6 Lite Access Point US [U6-Lite-US]

Out of stock
Regular price $99.00 USD

Product details

  • Type WiFi
  • Vendor Ubiquiti Networks
  • SKU U6-Lite-US


The Ubiquiti UniFi 6 Lite is a 2x2MIMO Wi-Fi 6 access point that delivers up to 1.5Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD mounting accessories.

Product Features:
  • 2x2 high-efficiency Wi-Fi 6
  • 5GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2Gbps
  • 2.4GHz band 2x2 MIMO with radio rate of 300Mbps
  • Gigabit Ethernet, powered with 802.3af PoE
  • Compatible with UAP-nanoHD covers and recessed mounting bracket
  • Enclosure Characteristics: Polycarbonate 110 and ADC12 Die Casting
  • Mounting Characteristics: Polycarbonate, SGCC Steel
  • Managed by UniFi Network Controller version: 5.14.3 or higher
Product Specifications:

  • Processor Specs 880MHz MIPS 1004 KEc
  • Memory Information: 256MB
  • Management Interface: Ethernet In-Band

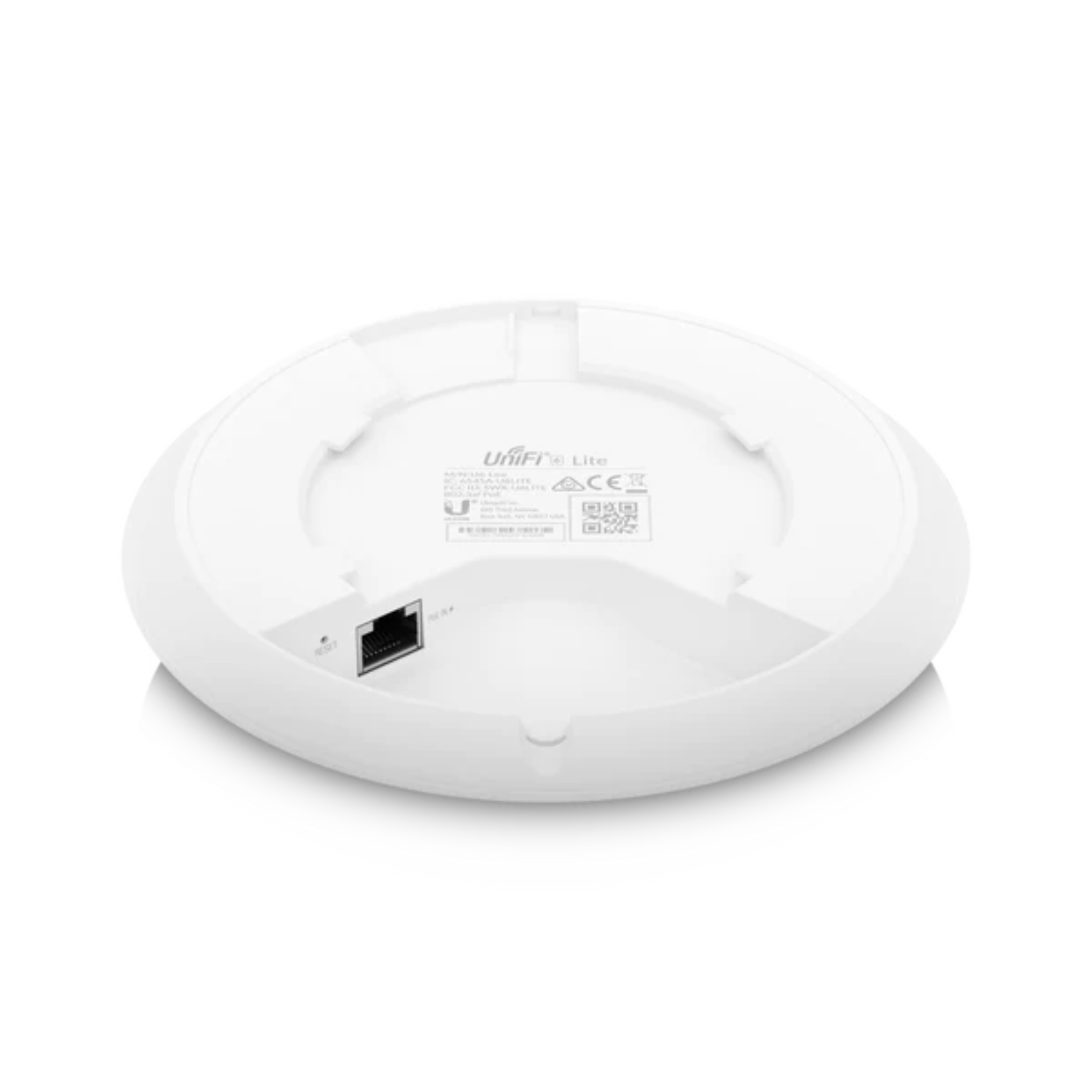

  • Networking Interface: (1) 10/100/1000 Mbps Ethernet RJ45
  • Buttons: Factory Reset
  • LEDs: White/Blue
  • Power Method: 802.3af PoE, Passive PoE (48V)
  • Power Supply: 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
  • Supported Voltage Range: 44 to 57VDC
  • Max. Power Consumption: 12W
  • Max. TX Power: 2.4GHz: 23dBm, 5GHz: 23dBm
  • MIMO: 2.4GHz: 2x2, 5GHz: 2x2
  • Throughput Speeds: 300Mbps, 5GHz: 1201Mbps
  • Antenna Gain: 2.4GHz: 2.8dBi, 5GHz: 3dBi
  • Operating Temperature: -30 to 607deg; C (-22 to 140° F)
  • Operating Humidity: 5 - 95% Non-condensing
  • Certifications: CE, FCC, IC


  • Wi-Fi Standards: 802.11a/b/g, Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
  • BSSID: 8 per Radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • Concurrent Clients: 300+

Product Includes:

(1) UniFi Lite Access Point

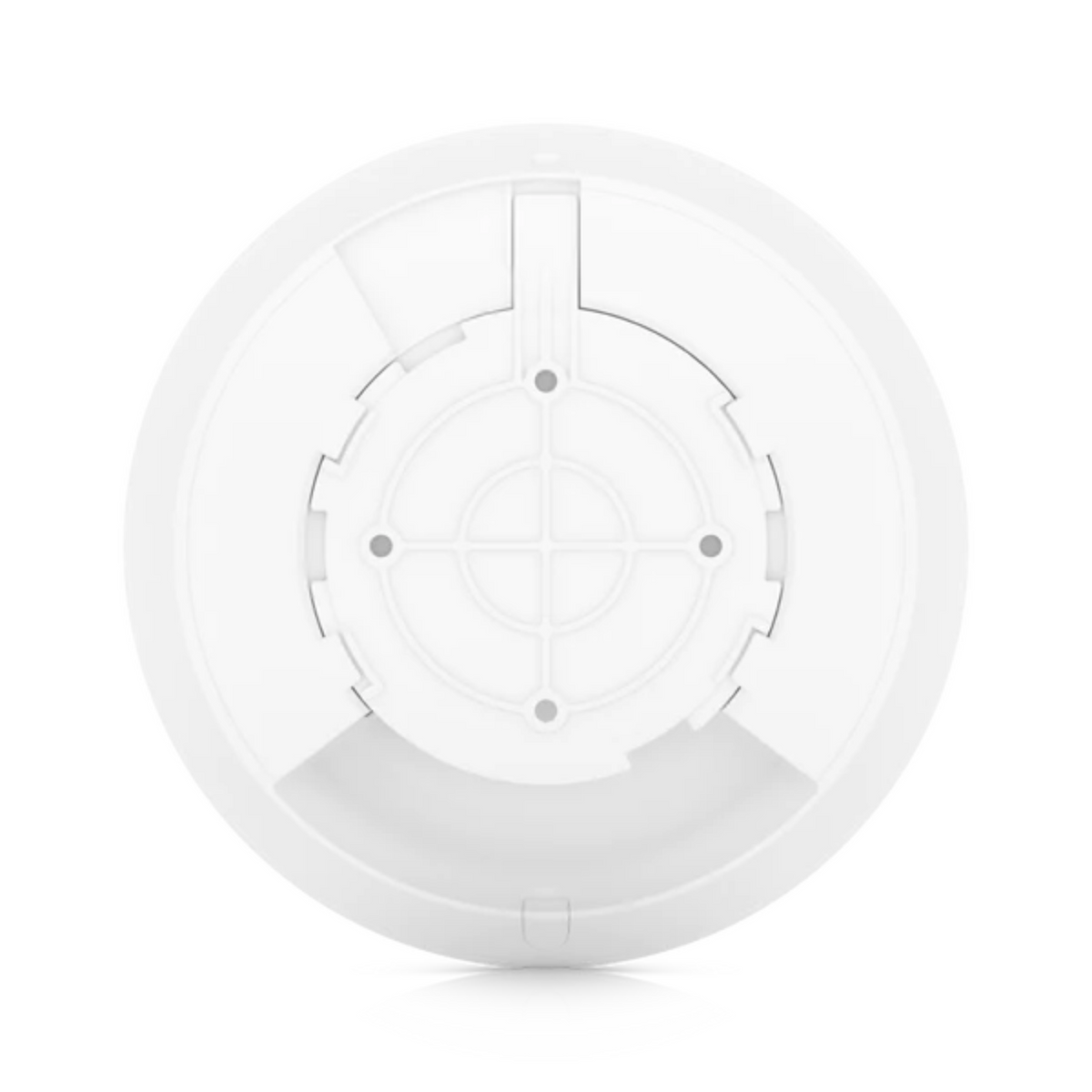

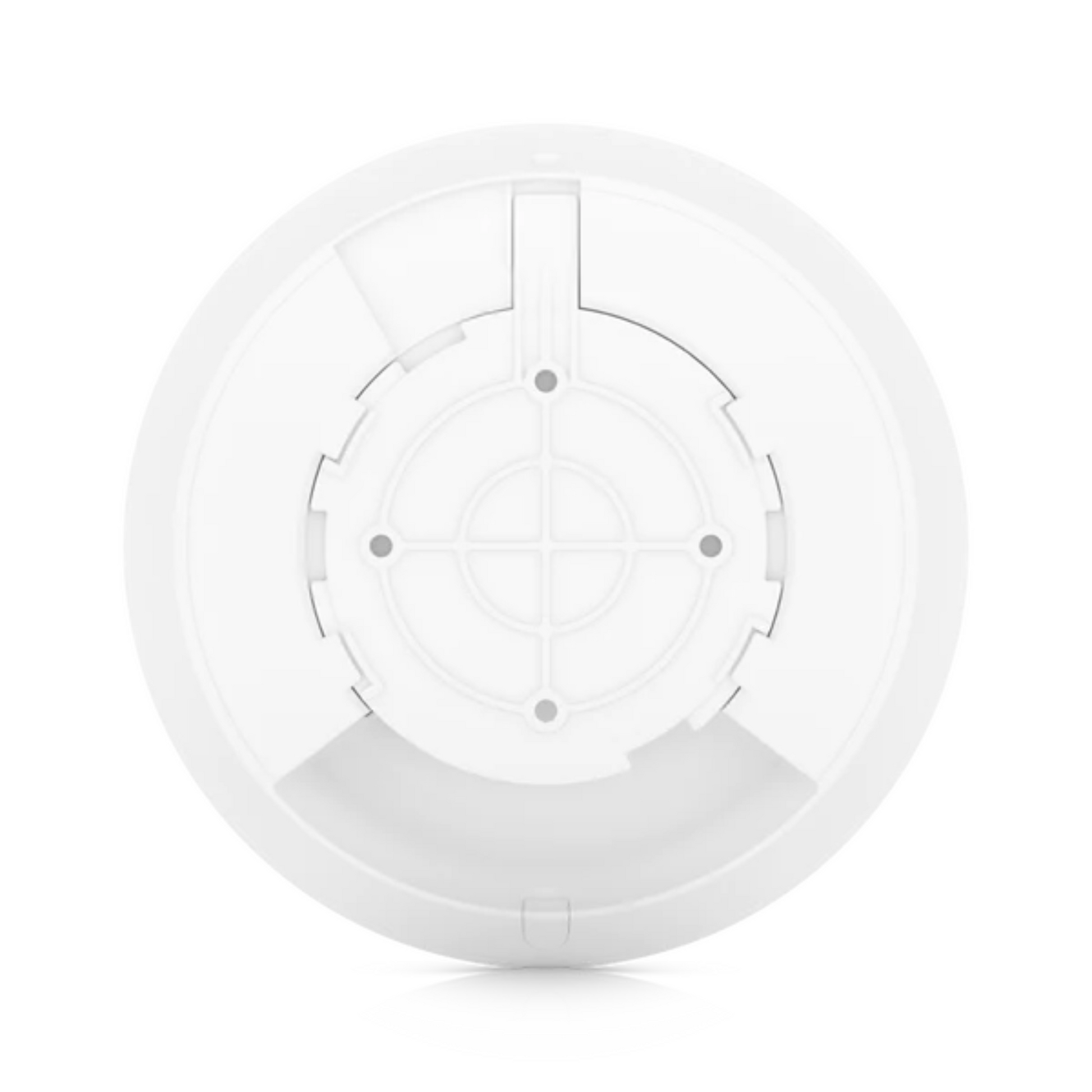

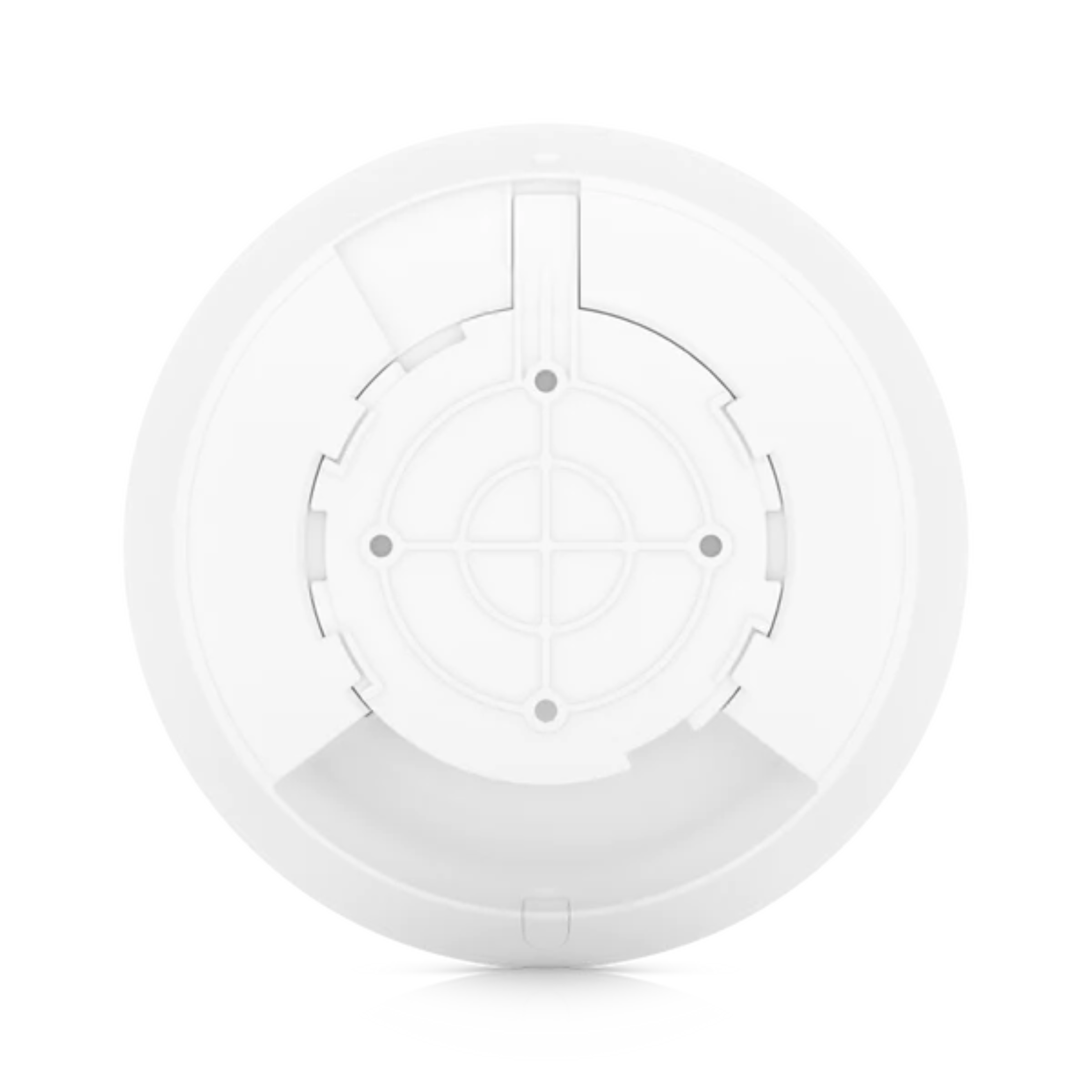

(1) Mounting Plate

(1) Allen Wrench

(1) Set of Screws
