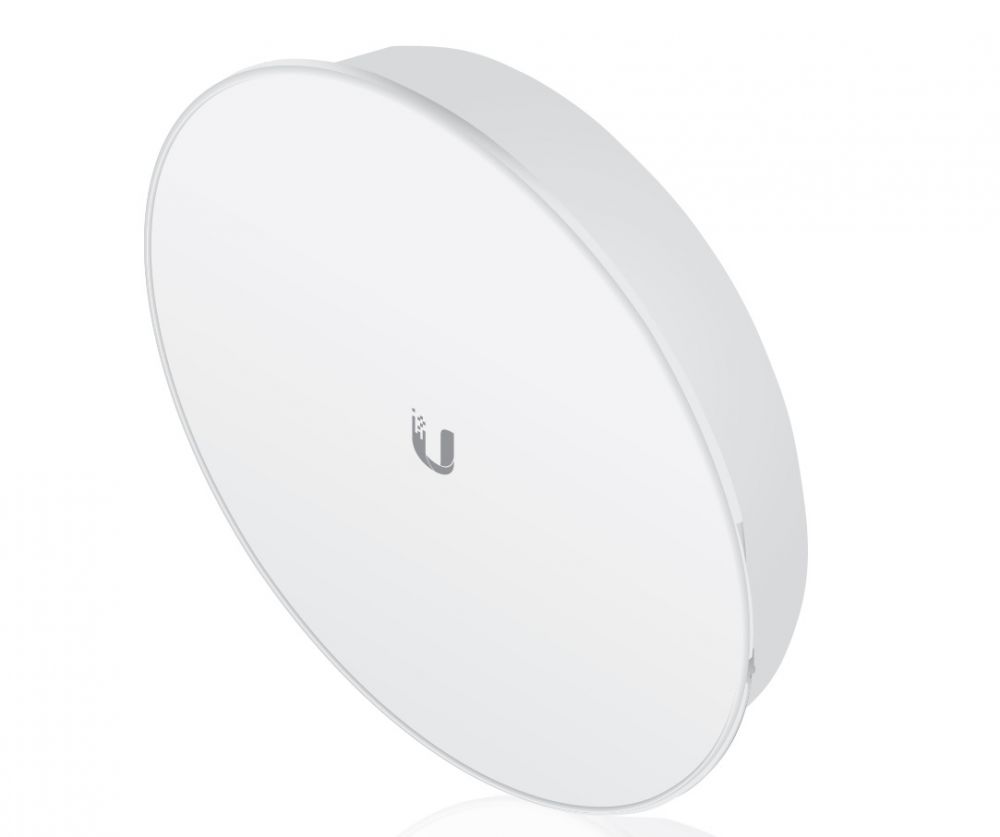

Ubiquiti PowerBeam 400mm AC Bridge with RF Isolated Reflector US [PBE-5AC-400-ISO-US]

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 5150-5250 MHz*, 5250-5350 Mhz*, 5470-5725 Mhz*, 5725-5850 Mhz*.

This product is half-link, you need two units to make a bridge link.

The Ubiquiti Networks PowerBeam ac ISO is an airMAX ac Bridge that is ideal for deployments requiring maximum performance and RF isolation. The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. This combination of focused beam directivity and RF isolation, the PowerBeam ac ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency. Ubiquiti has an InnerFeed technology that integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high performance and innovative mechanical design at a low cost, the PowerBeam ac ISO is extremely versatile and cost‑effective to deploy.

Product Features:

• Innovative Mechanical Design
• Superior RF Isolation
• Advanced Software Technology
• airMAX Technology Included

Product Specifications:

• Processor: Atheros MIPS 74Kc, 560MHz
• Memory: 64MB DDR2, 16MB Flash
• Networking Interface: 1 x 10/100/1000 Ethernet Port
• Power Supply: 24V, 0.5A PoE
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range: 20-26VDC
• Max. Power Consumption: 8.5W
• Gain: 25dBi
• Operating Frequency: 5150-5250 MHz*, 5250-5350 Mhz*, 5470-5725 Mhz*, 5725-5850 Mhz* ( *Some frequencies may require activation; visit: here )
• Wind Loading: 210 N @ 200 km/h (47 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• LEDs (1) Power, (1) LAN, (4) WLAN
• Channel Sizes: PtP Mode: 10/20/30/40/50/60/80MHz; PtMP Mode: 10/20/30/40MHz
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Operating Temperature -40 to 158deg F (-40 to 70deg C)
• Operating Humidity: 5 to 95% Non-Condensing

Product Includes:

(1) Reflector

(1) Radome

(1) Antenna Feed

(1) Rear Housing

(1) Mounting Bracket

(1) Adjustment Bracket

(1) Pole Clamp

(4) Hex Bolts with Washer Set

(2) Flange Nuts

(2) Carriage Bolts

(1) PoE Adapter (24V, 0.5A)

(1) Power Cord

(1) Quick Start Guide
