Regular price
$109.00 USD
Couldn't load pickup availability
Product details
- Type Outdoor Wireless
- Vendor Ubiquiti
- SKU IS-M5-US
Documentation
- Datasheet Link
Share on Social Media:

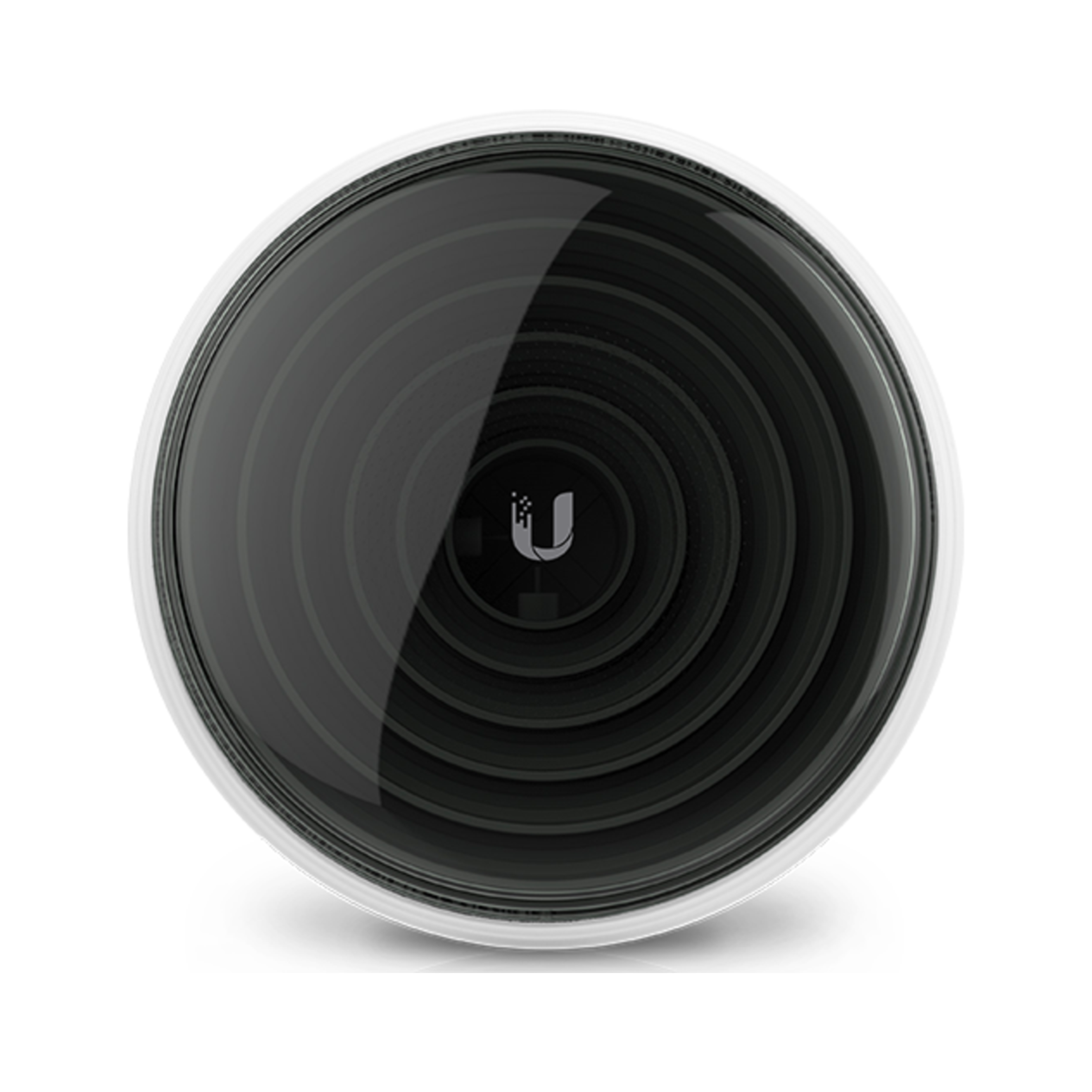

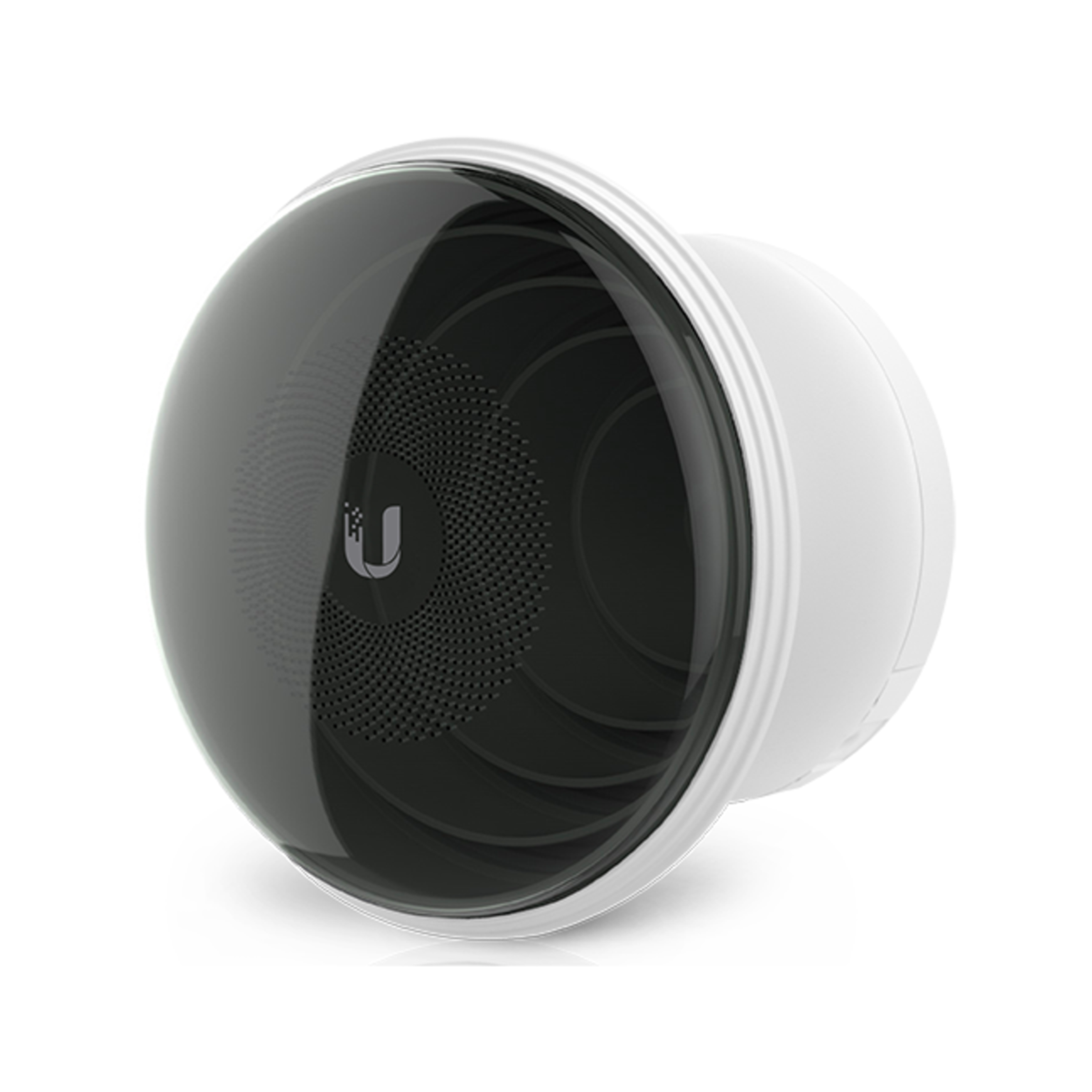

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment) with dedicated Wi-Fi management, the IsoStation™ M5.
The interchangeable antenna improves beam‑shaping for specific deployment needs. By default, the IsoStation M5 includes the symmetrical horn antenna with 45° beamwidth.
Improved Noise Immunity
The IsoStation M5 provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation M5. This feature is especially important in an increasingly congested RF environment.
Modular Design
The interchangeable antenna improves beam‑shaping for specific deployment needs. By default, the IsoStation M5 includes the symmetrical horn antenna with 45° beamwidth.
Scalability
Horn antennas increase co-location performance without sacrificing gain. Symmetrical horn antennas (30° and 45° versions) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
Enhanced Co-Location
Asymmetrical horn antennas (60° and 90° versions) are designed to have attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Extended Performance
A robust dish antenna, model U‑OMT‑Dish, offers excellent beam directivity with 27 dBi of gain. It can be paired with the IsoStation M5 to extend radio performance for a greater number of WISP customers. Providing high throughput and an innovative form factor, the IsoStation M5 is versatile and cost‑effective to deploy
