Regular price
$299.00 USD
Couldn't load pickup availability
Product details
- Type Outdoor Wireless
- Vendor Ubiquiti
- SKU PS-5AC-US
Documentation
- Datasheet Link
Share on Social Media:
This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 5150-5250 MHz*, 5725-5850 MHz.

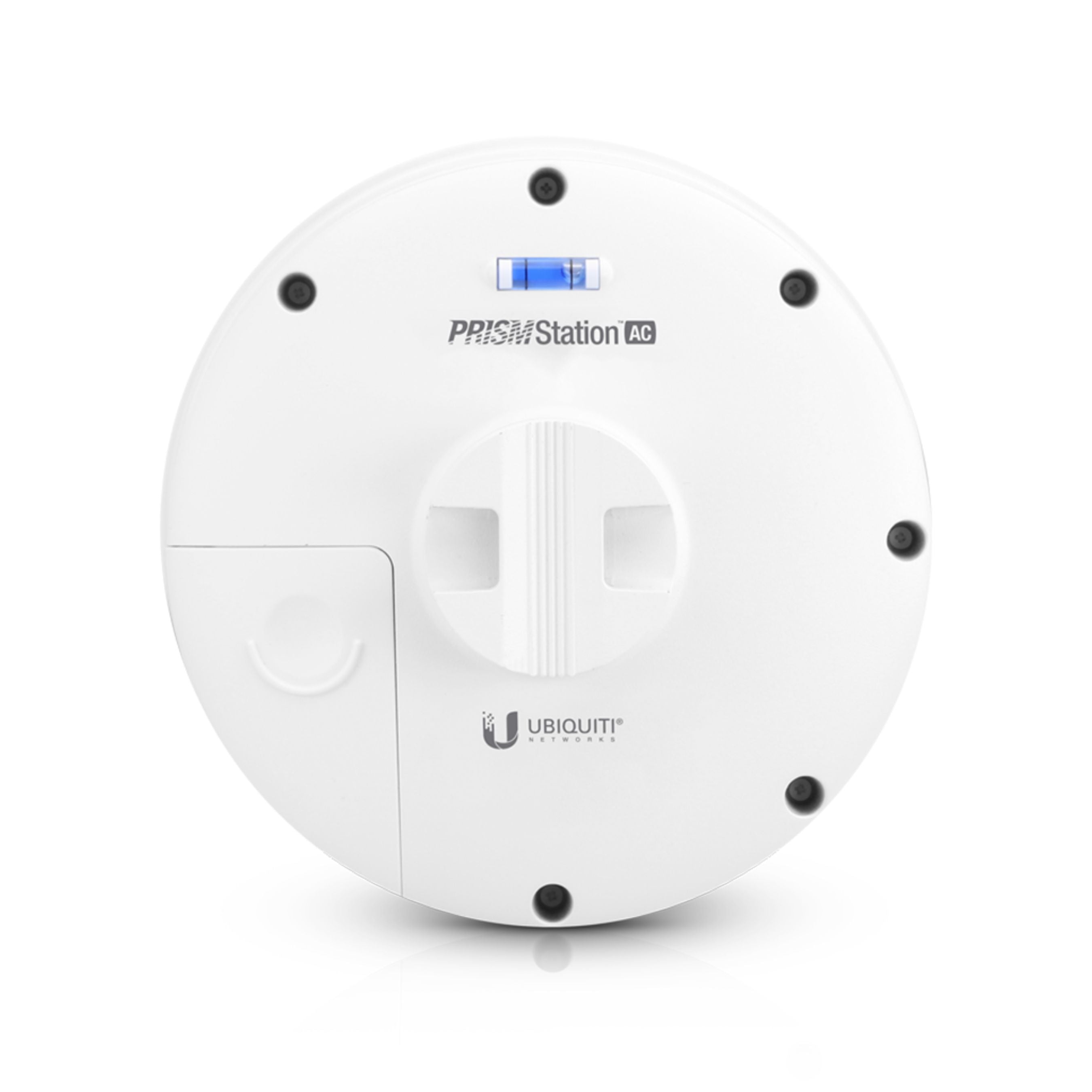

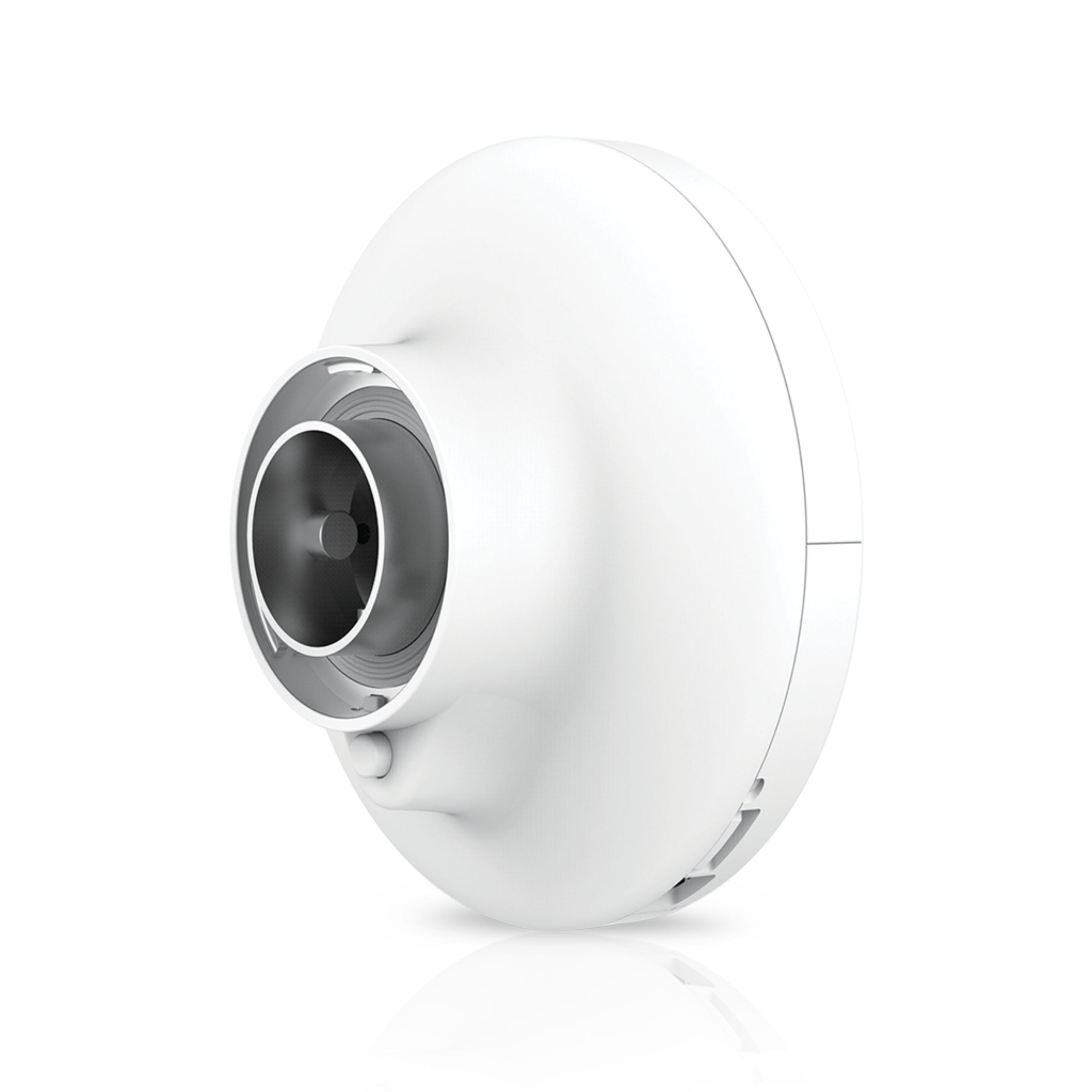

Ubiquiti airMAX Prismstation AC Shielded Radio Base operates on a 5GHz frequency.
The Ubiquiti airMAX Prismstation AC Shielded Radio Base runs on air OS 8. Ubiquiti airMAX protocol allows each client to send and receive data using per-designed time slows scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency.
Ubiquiti airMAX Prismstation uses proprietary customized performance for your network which isolates beam communications between your devices. The Prismstation delivers strong throughput speeds of up to 500+ Mbps and signal ranges of up to 5+km. Specifically used for densely populated areas with other RF signals of the same or similar frequency.
Product Specifications:
- Dimensions: 174 x 174 x 184mm (6.85 x 6.85 x 7.24"), Mounting Hardware Only: 83 x 117 x 69mm (3.27 x 4.61 x 2.72")
- Weight: 1.07kg (2.36lbs), Without Horn Antenna: 0.77kg (1.70lbs), Mounting Hardware Only: 0.79kg (1.74lbs)
- Networking Interface: (1) 10/100/1000 Ethernet Port
- RF Connector: (1) GPS
- LED: (1) Power
- Max. Power Consumption: 10W
- Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
- Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
- Supported Voltage Range: 20 to 26VDC
- Processor Specs: MIPS 74 Kc
- Memory: DDR2 128MB
- Max. VSWR: 2:1
- Polarization: Dual-Linear
- Wind Loading: 31N @ 200km/h (7lbf @ 125mph)
- Wind Survivability: 200km/h (125mph)
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Operating Humidity: 5 to 95% non-condensing
- Mounting: Pole-Mount (Kit Included)
- ESD/EMP Protection: ±24kV Contact/Air
- Certifications: FCC, IC, CE
- Operating Frequencies: 2412 - 2462MHz, USA U-NII-1: 5150 - 5250MHz, USA U-NII-3: 5725 - 5850MHz
(1) PrismStation AC Radio base only
(1) GPS Antenna
(1) Metal Strap

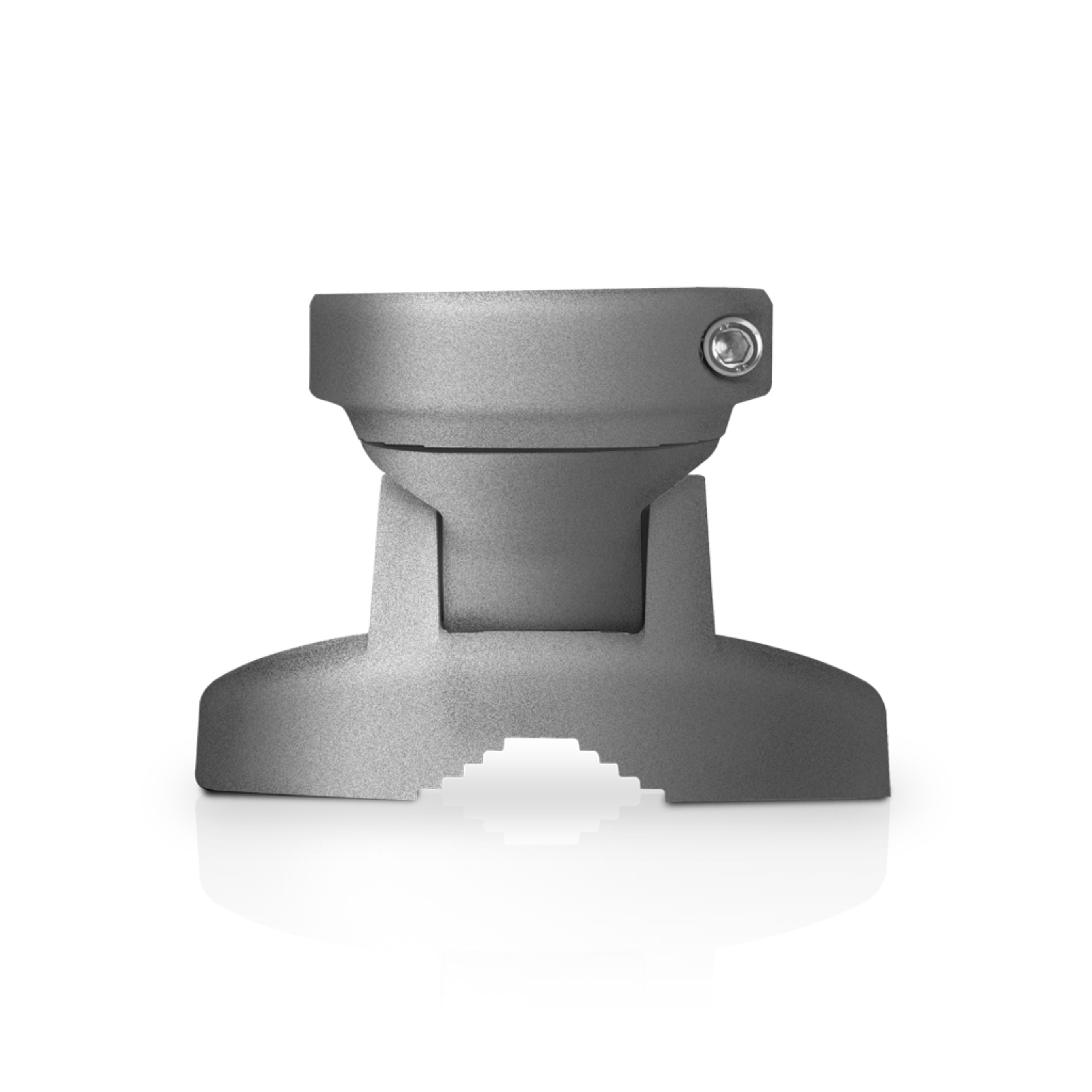

(1) Universal Mount Kit
(1) Pole Clamp
(1) Carriage Bolts (Qty. 2)
(1) Flange Nuts (Qty. 2)
(1) Allen Wrench
(1) Power Cord
(1) Gigabit PoE (24V, 1A) with Mounting Bracket
(1) Quick Start Guide
