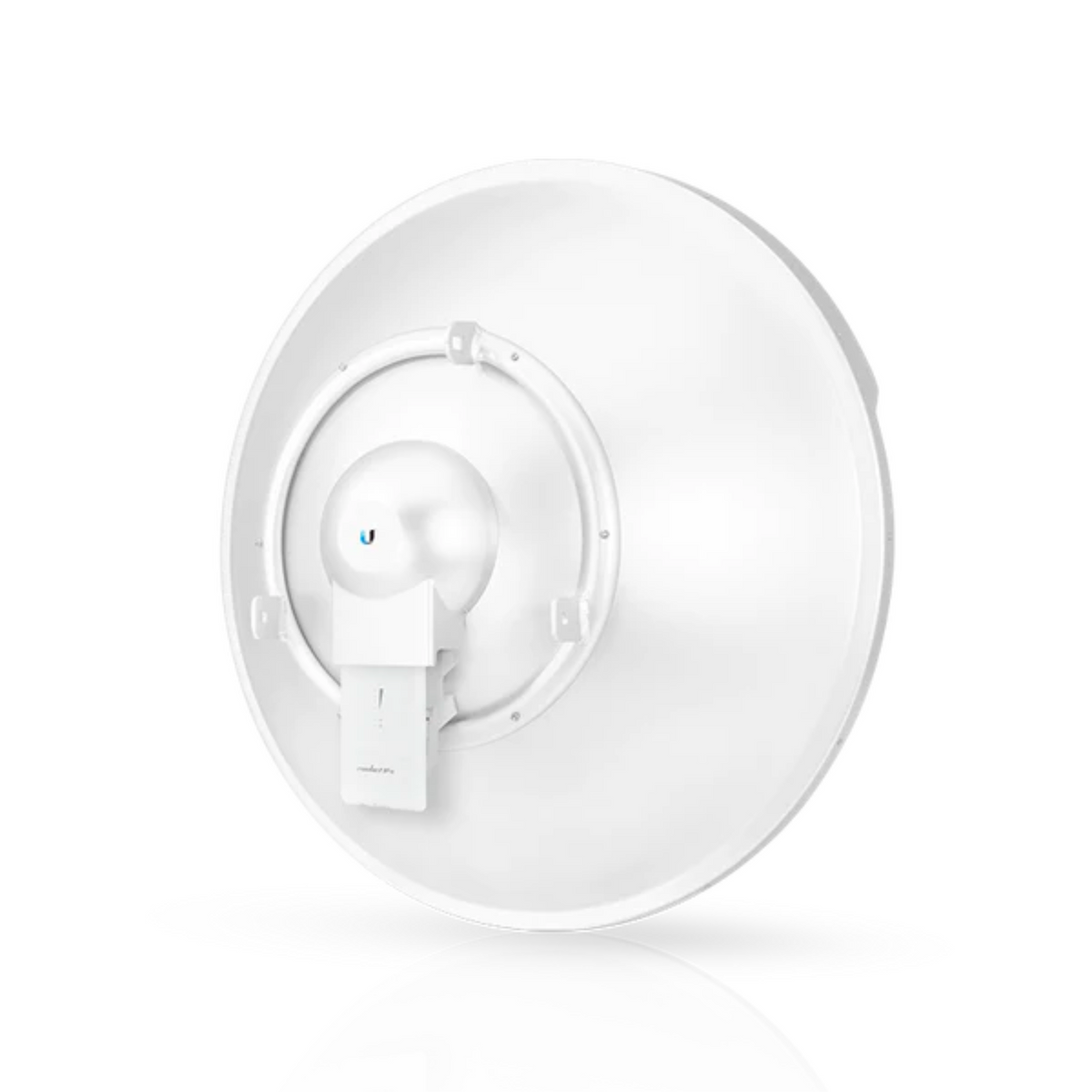

Ubiquiti airMAX AC 5 GHz, 31 dBi RocketDish Antenna [RD-5G31-AC]

Out of stock
$339.00 USD

Product details

  • Type Antennas
  • Vendor Ubiquiti
  • SKU RD-5G31-AC

Documentation

Share on Social Media:

Description
Ubiquiti Networks RD5G-31-AC
airMAX® ac 2x2 PtP Bridge Dish Antenna The RocketDish™ AC Antennas feature significant advances in scalability, noise isolation, and beam performance. Complement the Rocket™ 5AC radios for Point‑to‑Point (PtP) bridging and backhauls. They are compatible with the RocketM5; however, optimal performance requires the Rocket5AC.

Product Specifications:
  • Frequency Range: 5.1-5.8 GHz
  • Gain: 31dBi
  • Polarization: Dual Linear
  • Cross-pol Isolation: 35dB min
  • Max VSWR: 1.4:1
  • ETSI Specification: EN 302 326 DN2
  • Dimensions: 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in)
  • Weight: 7.6 kg (16.76 lb) (Mount Included)
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 1,028 N @ 200 km/h (231 lbf @ 125 mph)
  • Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Include
Product Includes:
(1) Dish Antenna with Radome
(1) Mounting Bracket
(1) Protective Shroud
(2) Pole Clamps
(2) Stabilizer Brackets
(2) RF Cables
(1) Elevation Rod
(4) M10x170 Carriage Bolts
(2) M10x100 Bolts
(3) M10x25 Carriage Bolts
