Ubiquiti 5 GHz PtMP LTU Long-Range CPE US [LTU-LR-US]

Out of stock
Regular price $129.00 USD

Product details

  • Type Outdoor Wireless
  • Vendor Ubiquiti Networks
  • SKU LTU-LR-US

Documentation

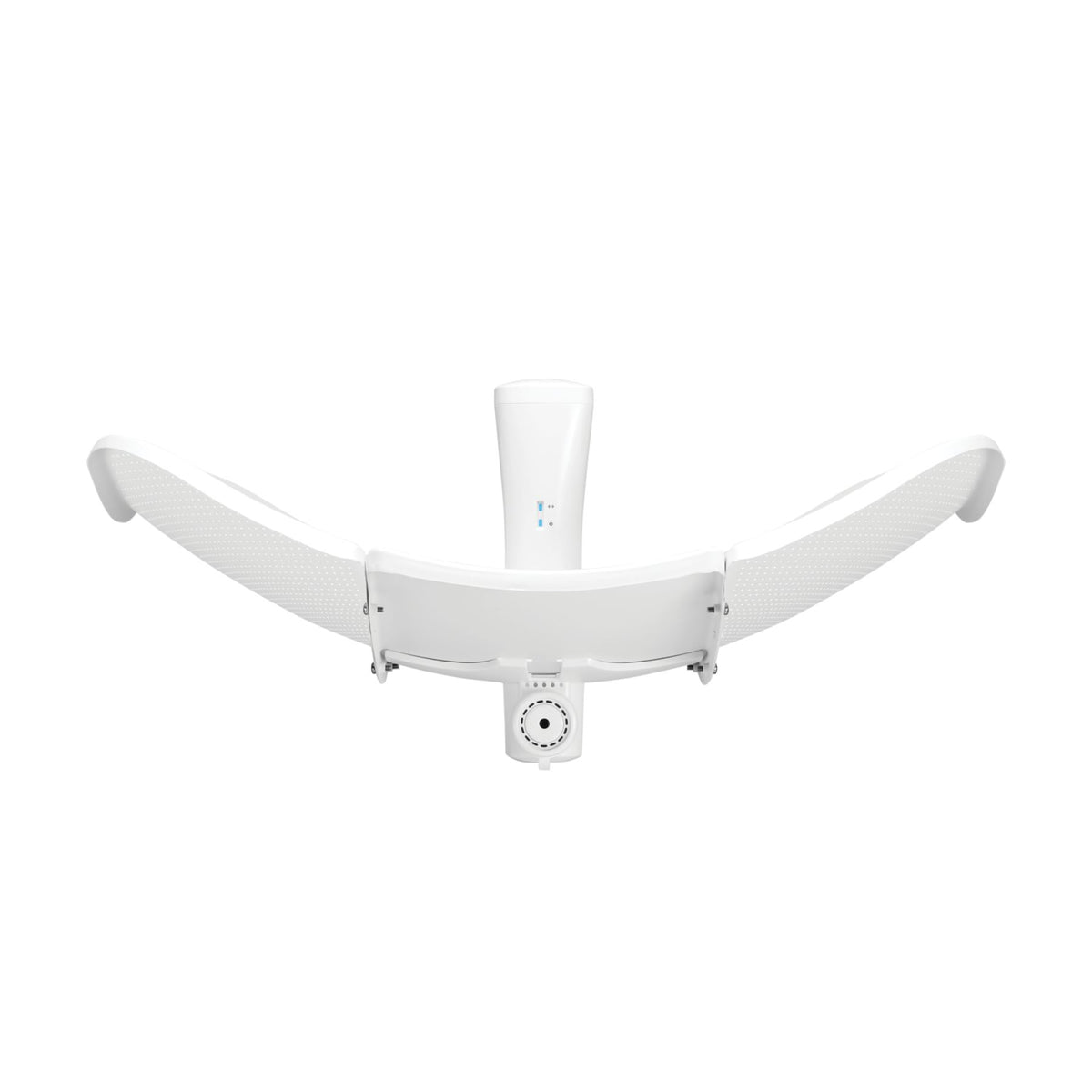

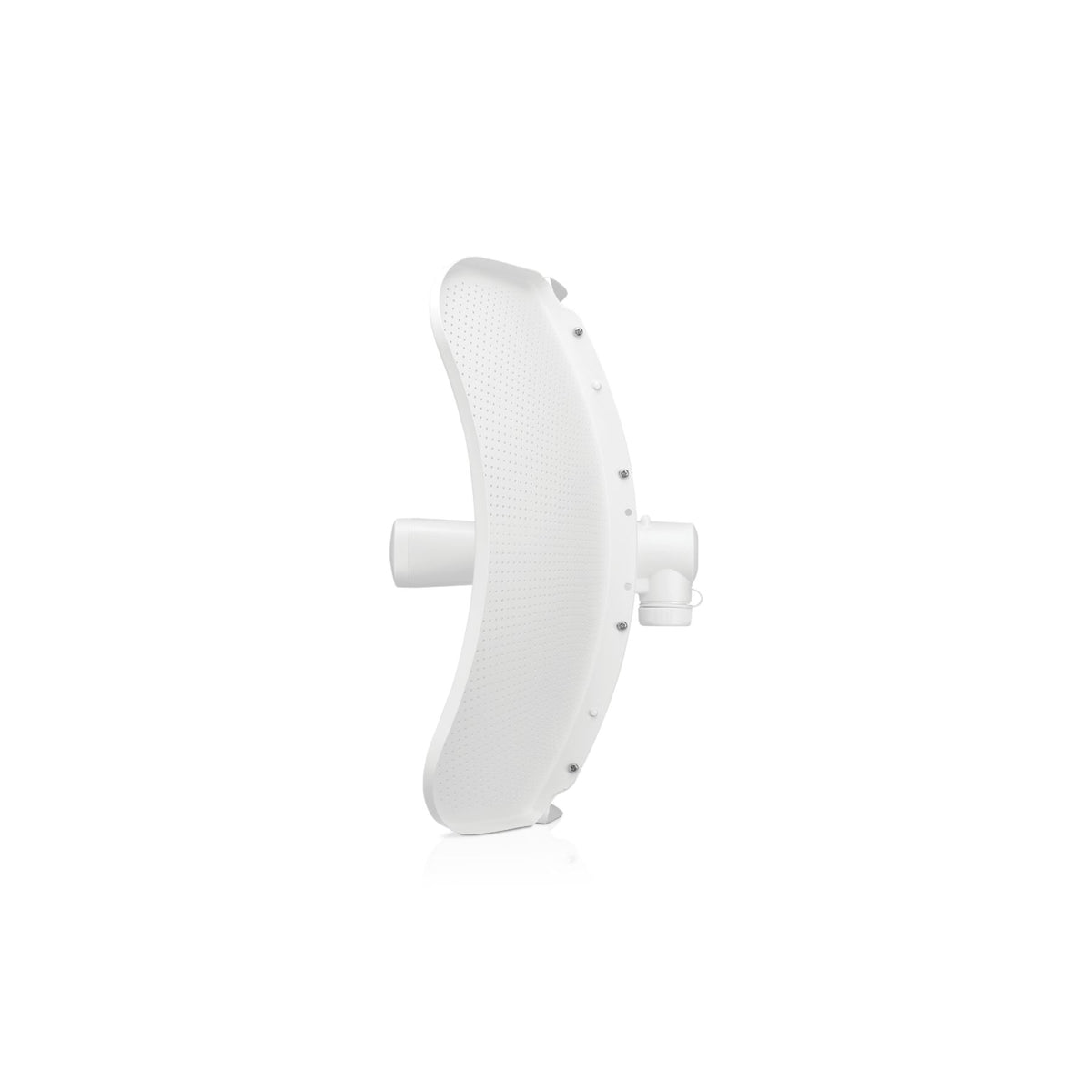

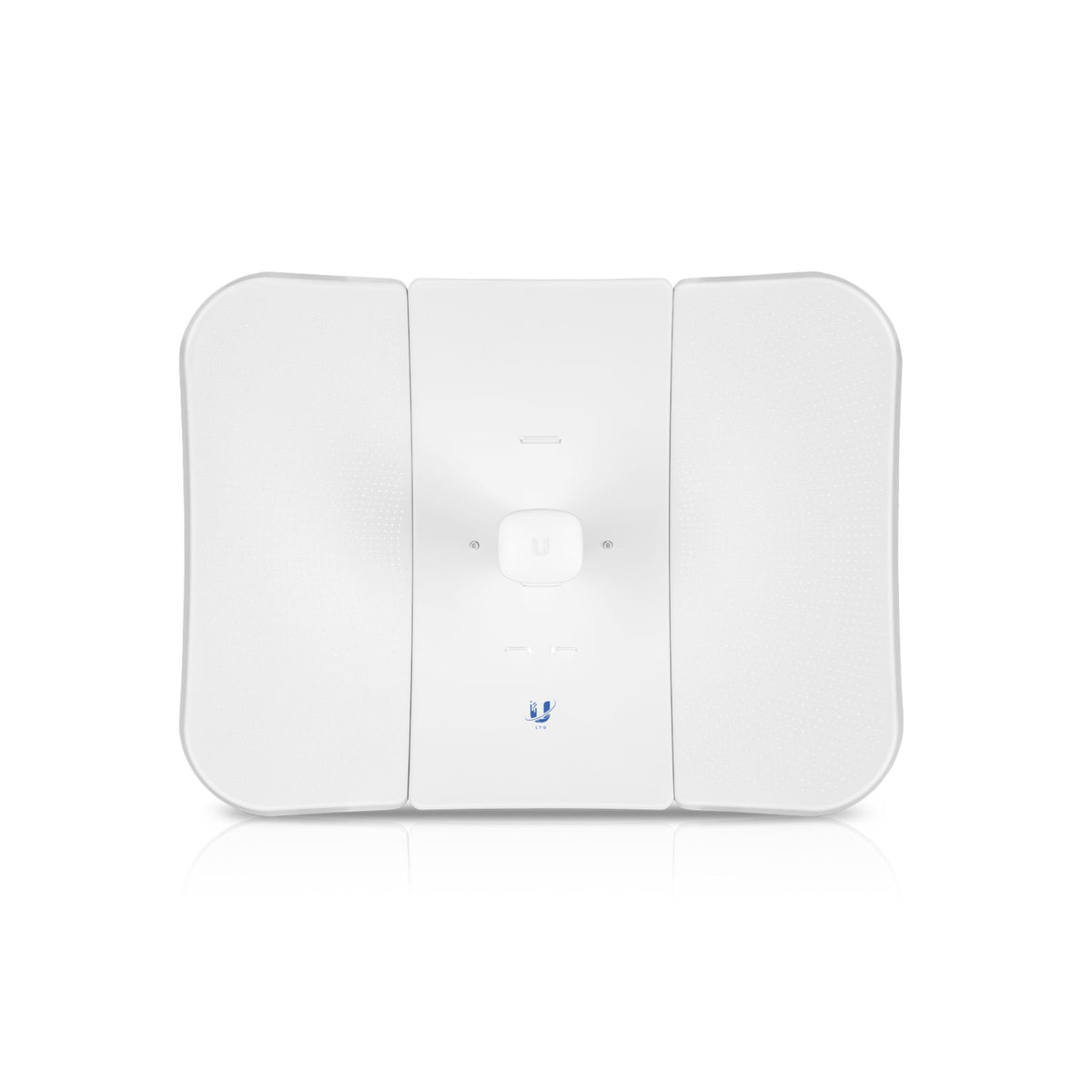

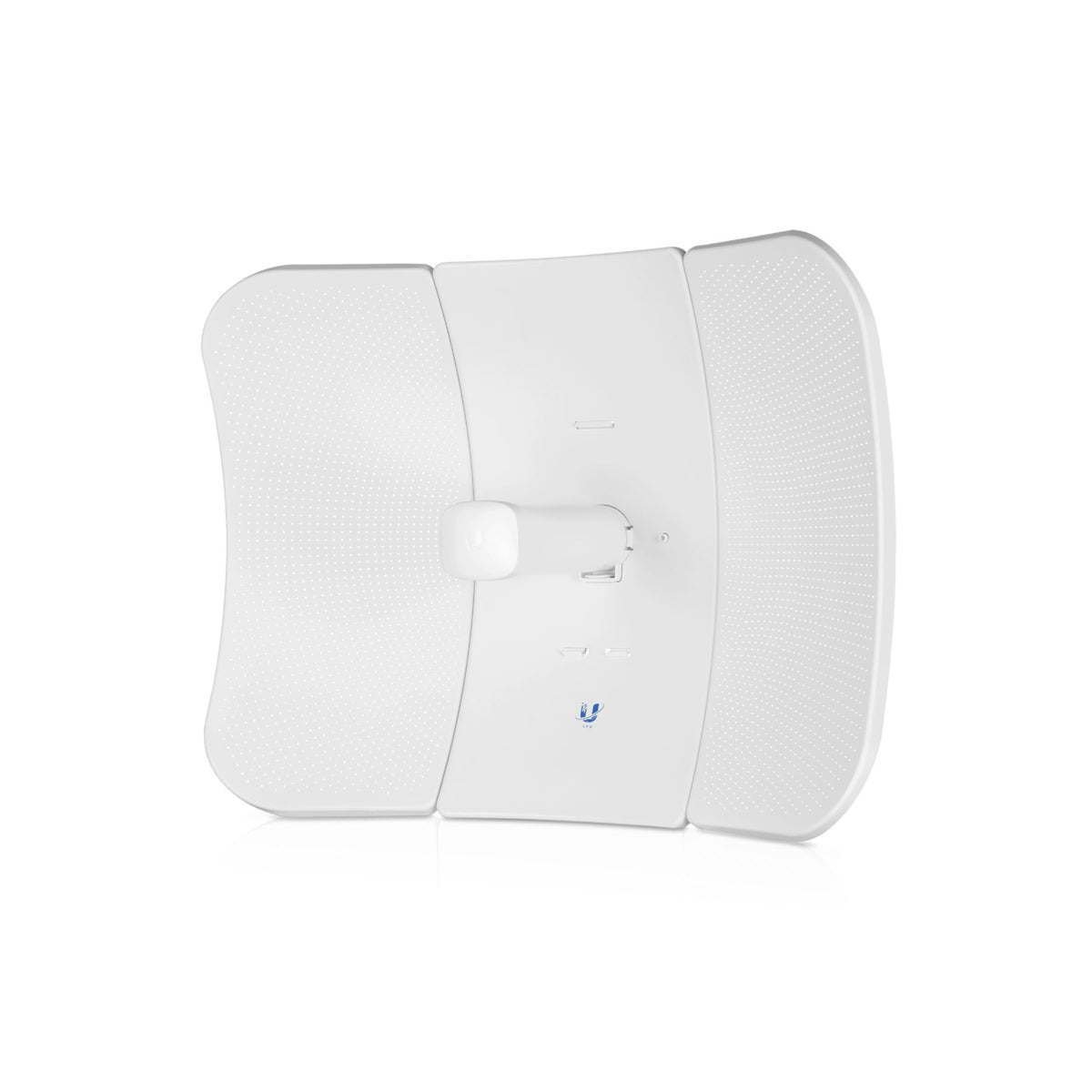

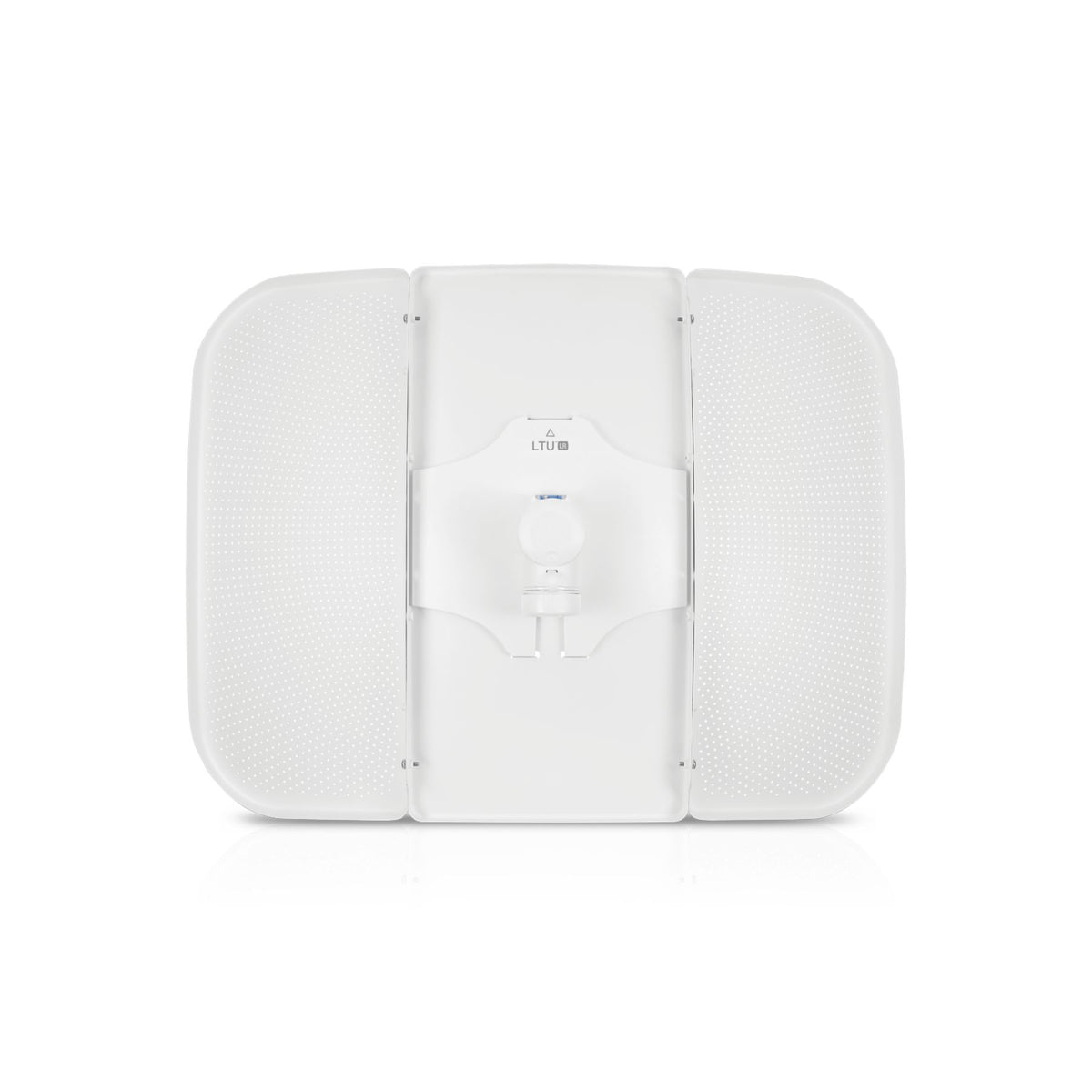

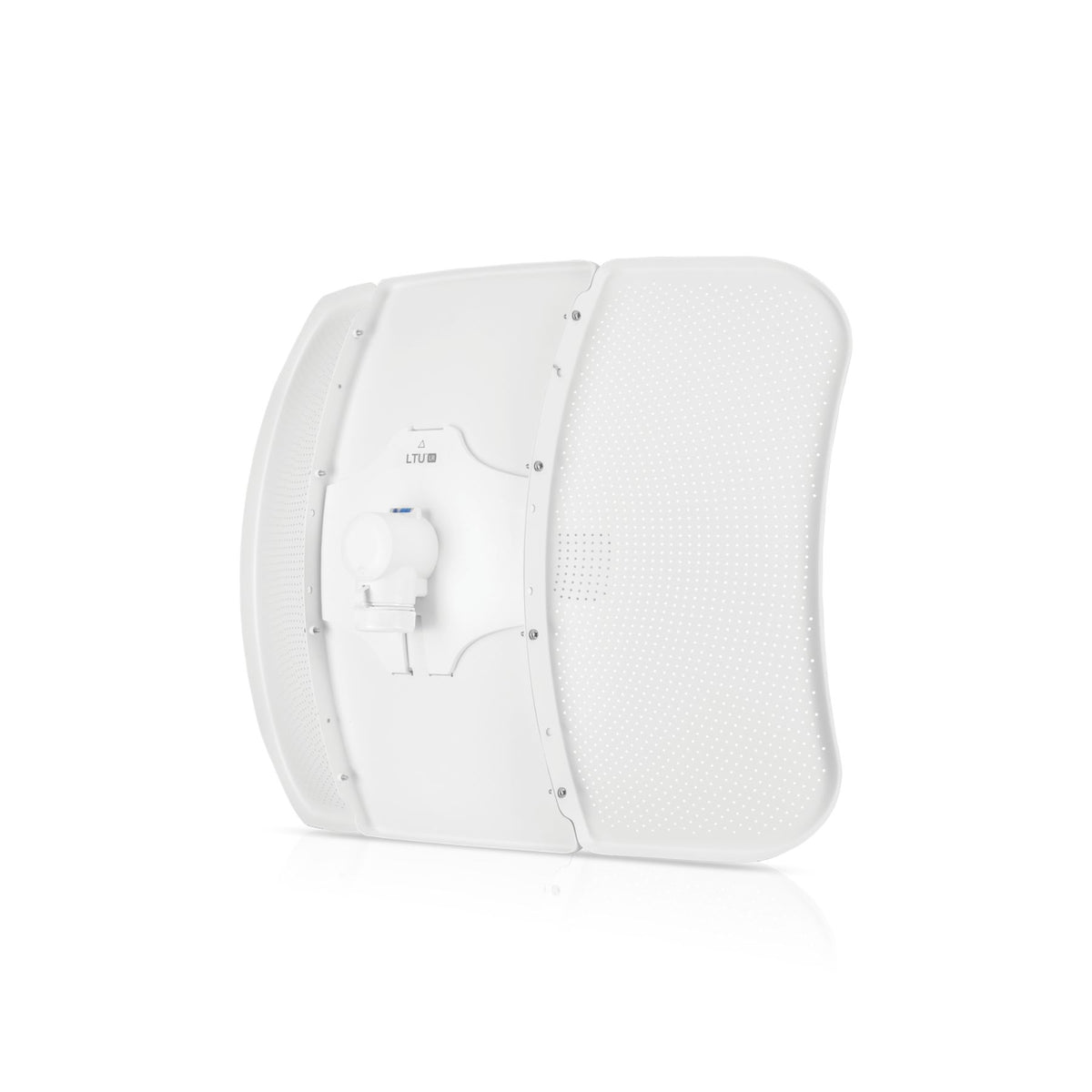

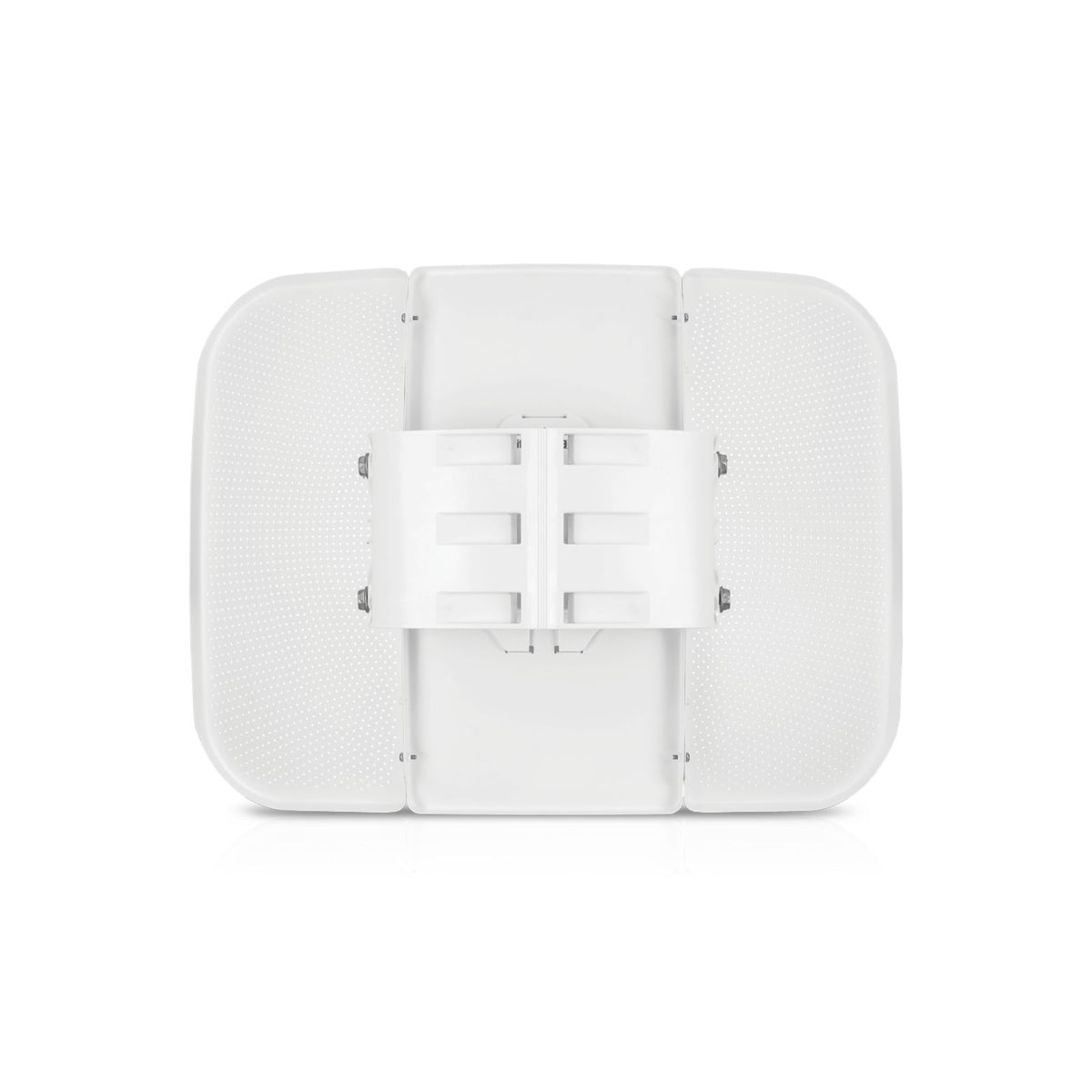

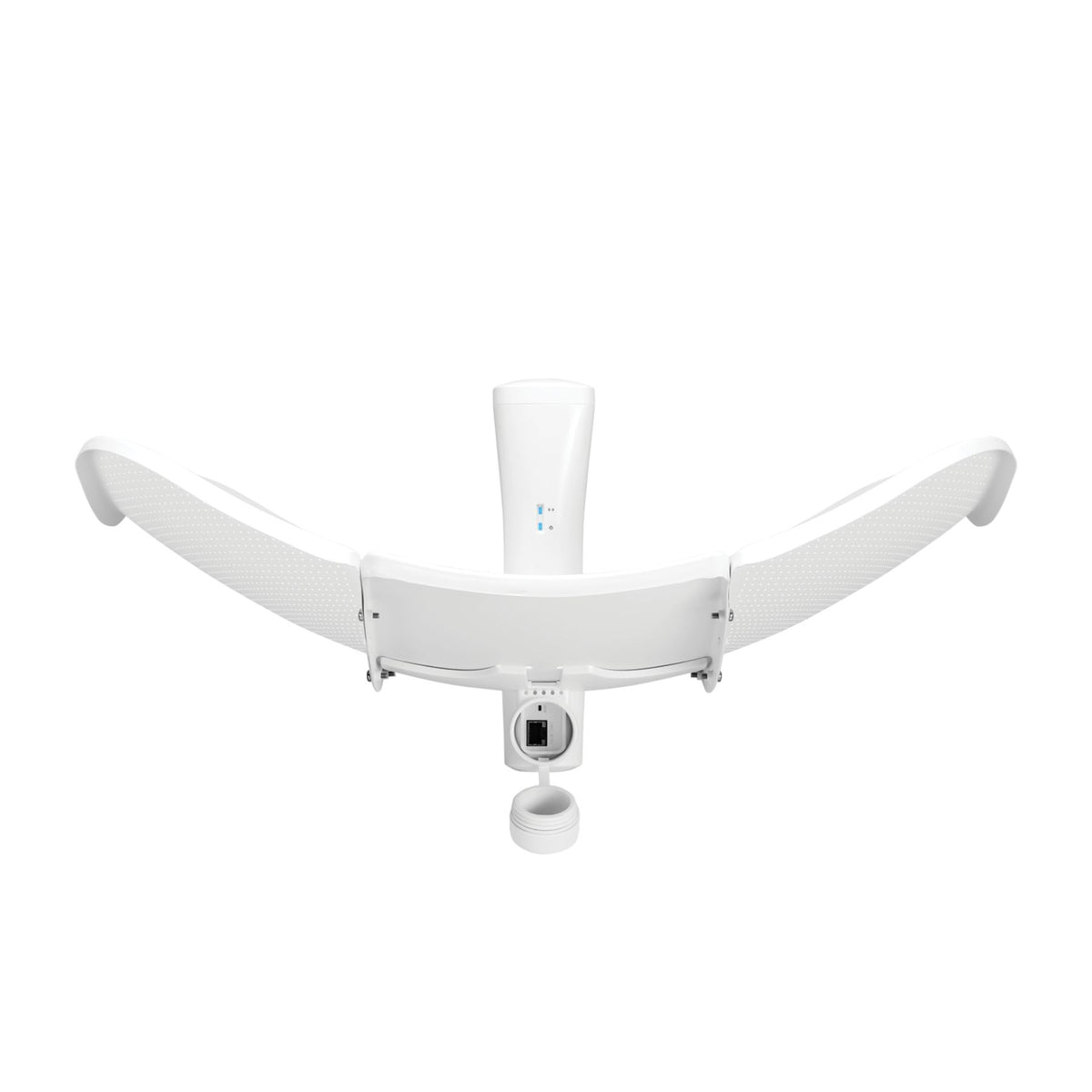

Incorporating innovative industrial design with advanced technology, the Ubiquiti LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.


Product Features:
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Automatic power adjustments
  • Router mode support
  • Enclosure: Outdoor UV Stabilized Plastic
  • Networking Interface: (1) 10/100/1000 Ethernet Port
Product Specifications:
  • Max. Power Consumption: 8.5W
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
  • Voltage Range: 22-26V
  • Max. Conducted TX Power: 22 dBm (per Chain)
  • Gain: 26 dBi
  • Mounting: Pole-Mount (Kit Included)
  • Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
  • Wind Survivability: 200 km/h (125 mph)
  • ESD/ EMP Protection: ±24kV Contact/ Air
  • Operating Temperature: -40 to 60°C (-40 to 140°F)
  • Operating Humidity: 5-95% Non-condensing
  • Certifications: CE, FCC, IC
Product Includes:
(1) Antenna Feed
(1) Center Reflector Panel
(2) Side Reflector Panels
(1) Mounting Bracket
(1) Rear Housing
(2) Pivot Panels
(8) M4 SEM Screws
(4) M8 SEM Screws
(3) Metal Straps
(1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
(1) Power Cord
