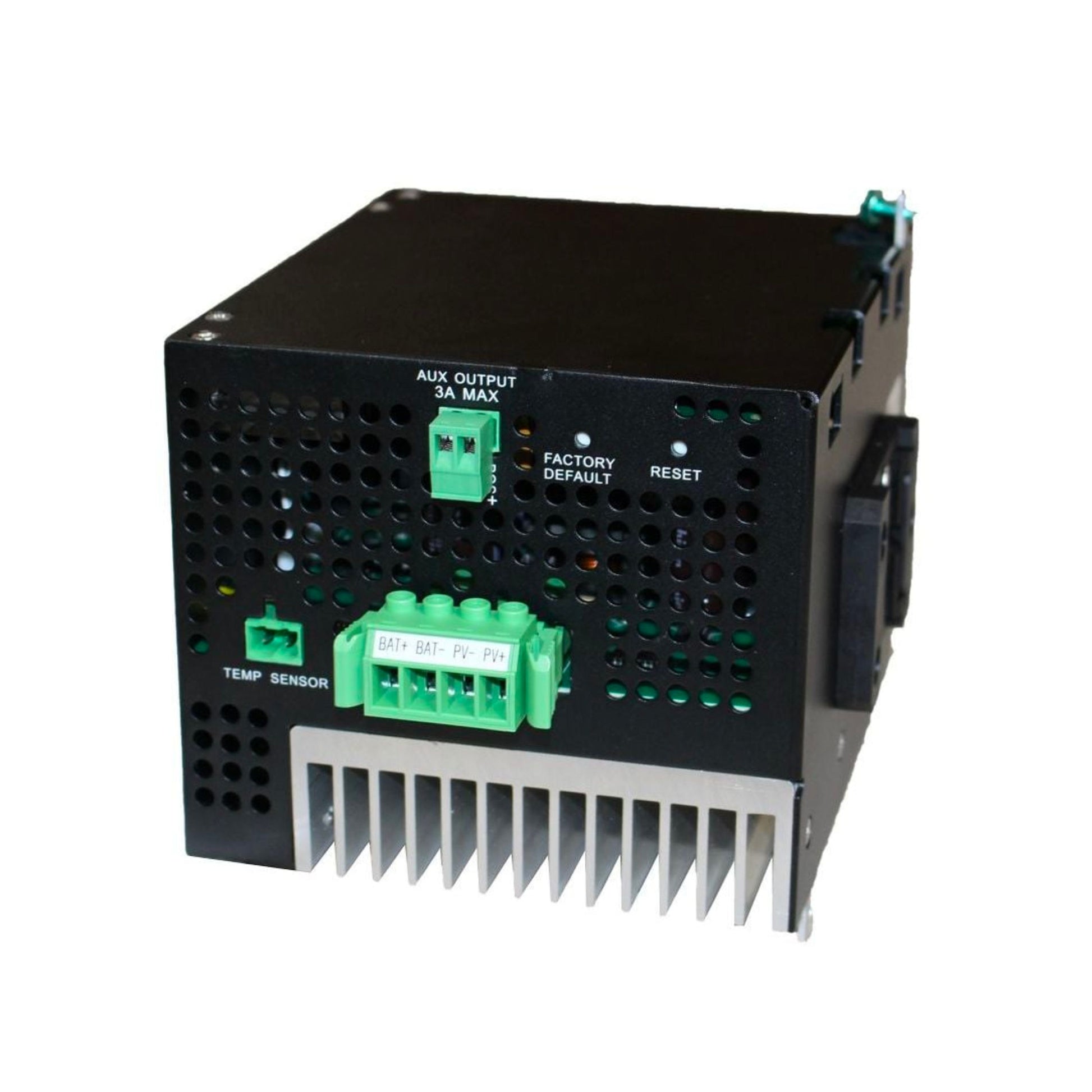

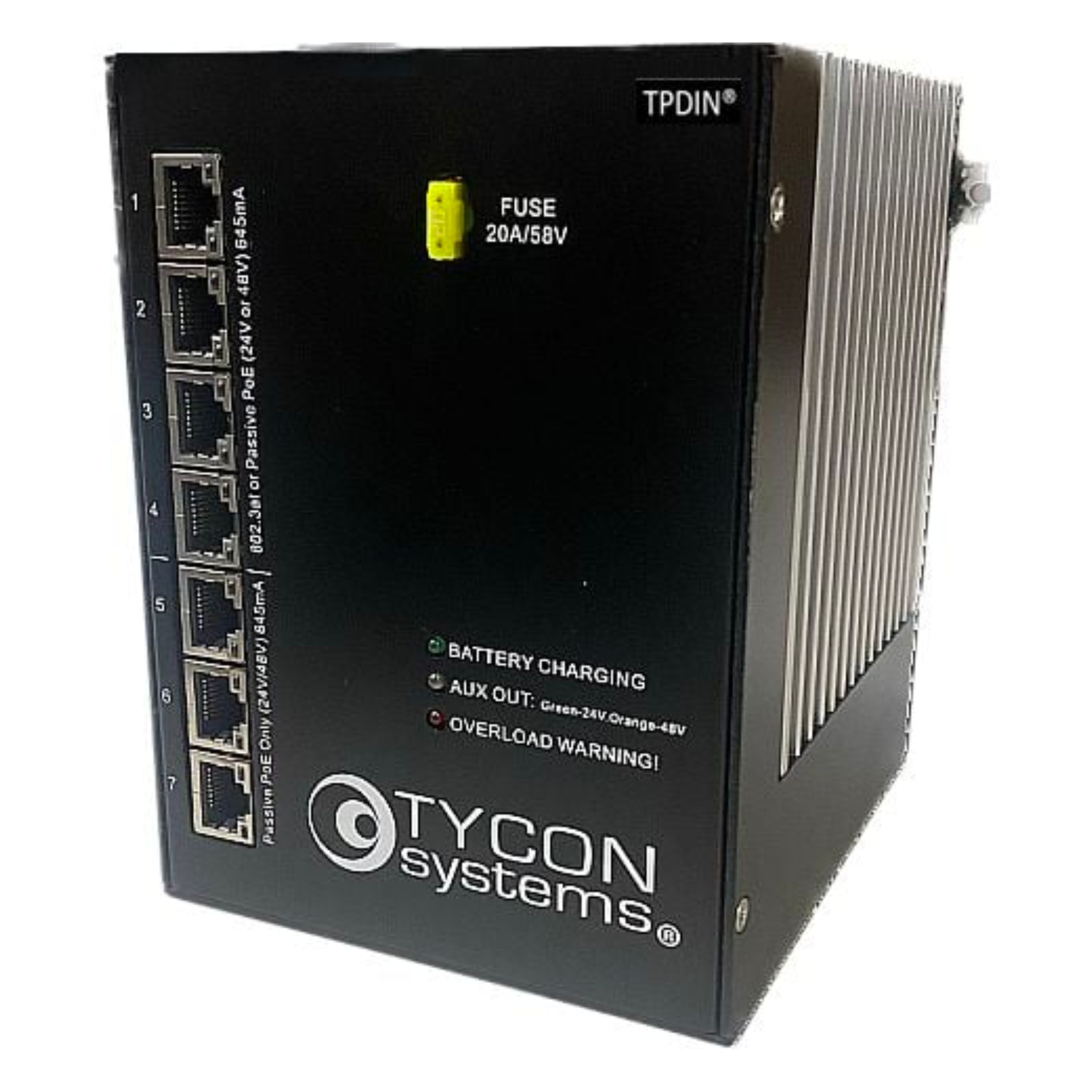

Tycon Solar MPPT Solar Controller w/ Monitor and 7-Port Gigabit PoE Switch [TPDIN-SC48-20]

Out of stock
Regular price $679.95 USD

Product details

  • Type Switches
  • Vendor TYCON Systems
  • SKU TPDIN-SC48-20

The Tycon Solar TPDIN-SC48-20 is a web manageable MPPT Solar Controller with built-in 7 Port Gigabit Passive PoE switch. The controller uses temperature compensated smart battery charging to properly charge GEL or AGM batteries and extend their life. It has a balance charge mode for periodic battery bank maintenance. There are 3 Gigabit Passive PoE+ 35W and 4 Gigabit Passive PoE 18W ports. There is a wire terminal auxiliary output capable or 2.25A maximum. Total from all outputs is set at 150W at 48VDC and 72W at 24 VDC for a max total of 222W. Outputs can be switched by user between 48VDC and 24VDC or OFF through the web interface.


Product Features

  • MPPT 47V 20A Solar Controller
  • Temperature Compensated Smart Battery Charging
  • 7 Port Gigabit Passive PoE Switch

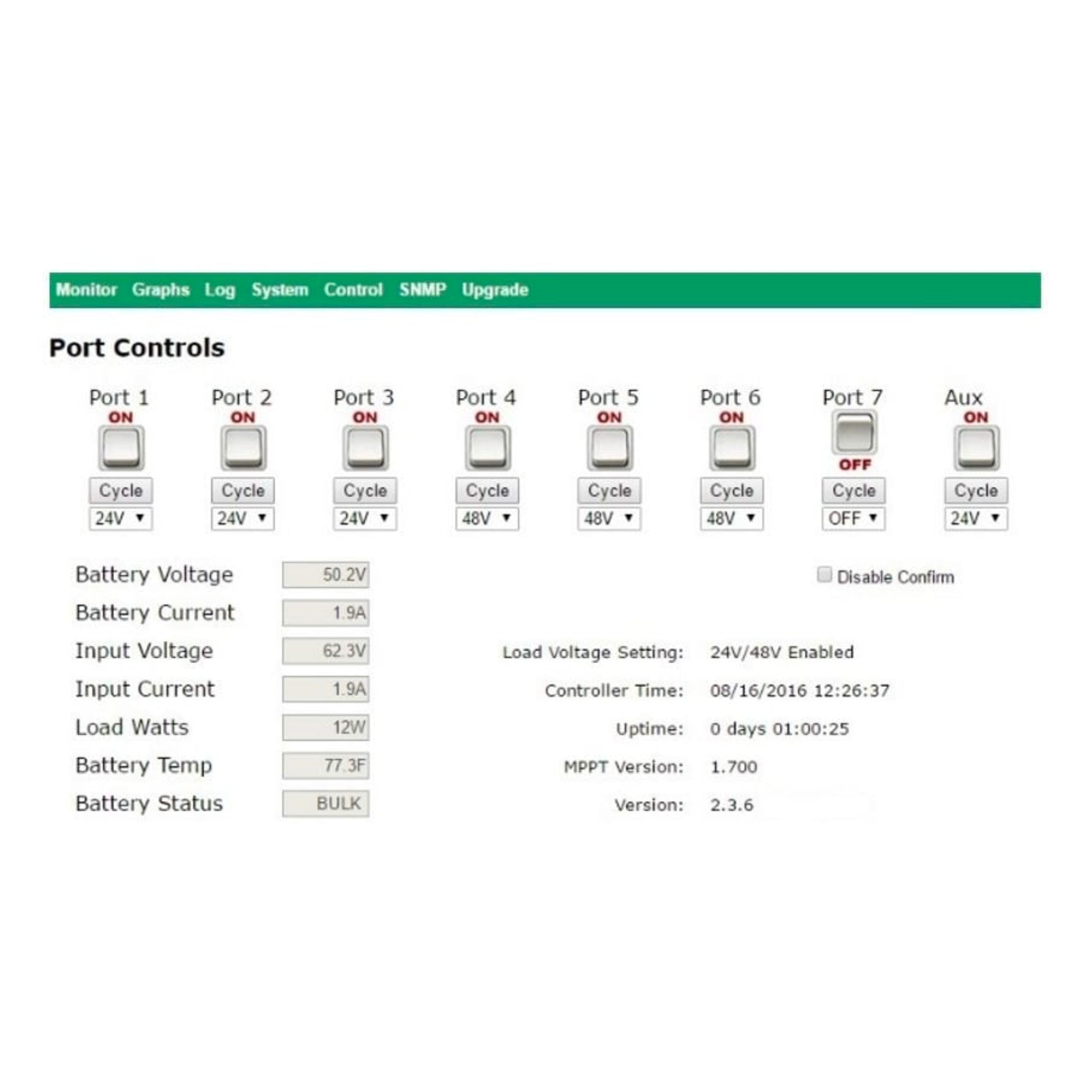

  • Remote Monitor and Control
  • 48V or 24V User Selectable Output Voltage
  • 2.25A Auxiliary Wire Terminal Output
  • Total 200W Power Output
  • Automatic Low Voltage Battery Disconnect

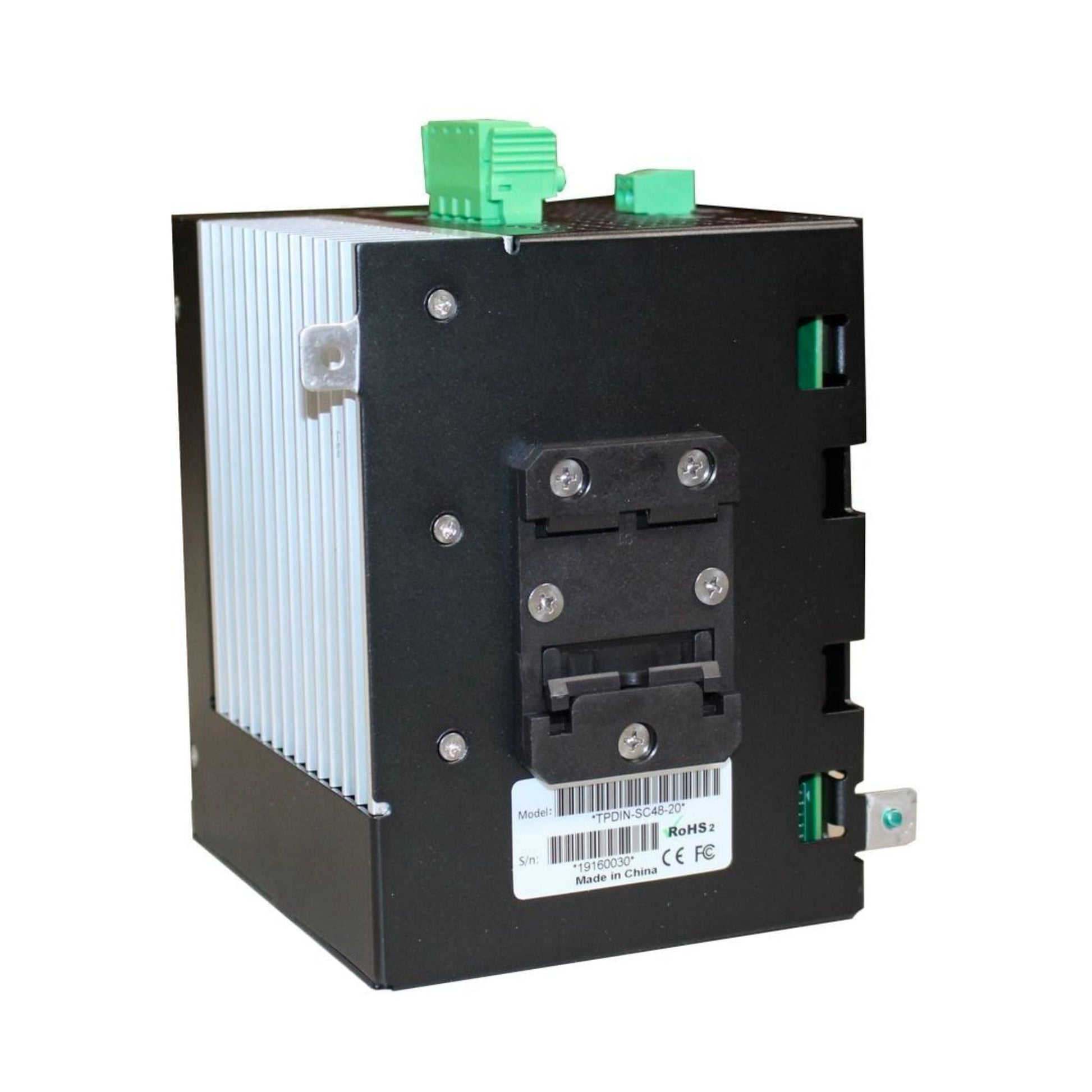

  • DIN Rail or Screw Tab Mounting
