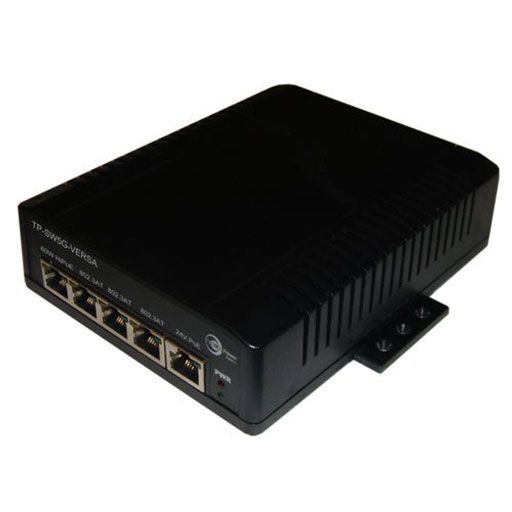

Tycon Power Versatile 44-57Vin 5-Port 60W 802.3at Output Gigabit PoE Switch

Out of stock
Regular price $279.95 USD

Product details

  • Type Switches
  • Vendor TYCON Systems
  • SKU TP-SW5G-VERSA

Documentation

Tycon Power TP-SW5G-VERSA Power over Ethernet (PoE) 5 Port Gigabit switches offered by Tycon are fully automatic high speed Layer 2 Ethernet switches with multiple function ports. Port 1 is a 60W 4pair High PoE port; Port 2,3,4 are 48V 30W 802.3at compatible ports; Port 5 is a 24V 12W Passive PoE port. This allows a customer to power up multiple PoE devices with different power requirements. The switch requires a 48-56VDC power input. The units are compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.


Product Features
  • One 60W High PoE, Three 802.3at PoE and one 24V Passive PoE port
  • Gigabit Compatible
  • Built-in Surge Protection
  • Automatic MDI/MDI-X Crossover
  • Automatic Speed and Duplex Sensing
  • Low Self Power and High Temperature Operation
  • DIN Rail Adapters included
Specifications
  • Ports
        Port 1: 60W 4Pair High PoE ; 1,2,4,5( V+), 3,6,7,8 (V-)
        Port 2,3,4: 48V 30W 802.3AT Mode B
        Port 5: 24V 12W Passive PoE ; 4,5 (V+), 7,8 (V-)
  • Transmission Speed 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation
  • Connections Shielded RJ45, Grounded to FG connection
  • Input Vin 44VDC to 57VDC on Wire Terminal and/or 4Pin Mini DIN Connector
  • LED’s
        Right Hand LED: Gigabit Link (Green On), Activity (Green Blinking) 10/100Mb/s Link (Yellow On), Activity (Yellow Blinking)
        Left Hand LED: PoE Power ON (Yellow On)
  • PoE Protections Over Temperature, Over Current, Short Circuit
  • Surge Protection IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns)
  • Self Consumption < 3W Typical
  • Switch Technology Store and Forward
  • Protocol CSMA/CD
  • Flow Control IEEE802.3x(full-duplex), Back Pressure(half-duplex)
  • Data Transmission Rate 1488000pps , 148800pps, 14880pps
  • Address Table 1K MAC, self-learning
  • Operating Temp -30°C to +70°C (-22°F to 158°F)
  • Operating Humidity (RH) 5% - 90% (non condensing)
  • Storage Temperature -40°C to +85°C (-40°F to +185°F)
  • Dimensions (L x W x H) 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)
  • Weight 318g (11oz)
  • Warranty 3 Years
Product Includes
(1) Tycon Power TP-SW5G-VERSA PoE Switch
(1) User Manual
