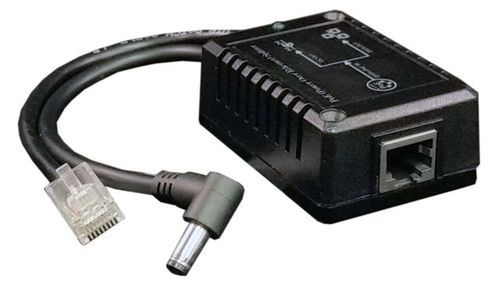

Tycon Systems 48V Passive PoE In 5V 12W PoE Splitter [POE-MSPLT-4805]

The POE-MSPLT line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output voltage.

The DC output is provided on a standard 5.5mm/2.1mm barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6” cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.

The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network switches or PoE injectors.

• Very compact size
• Converts an active PoE input to a DC output
• Various output voltages and USB available
• Output power up To 15W
• Short circuit, over current protection
