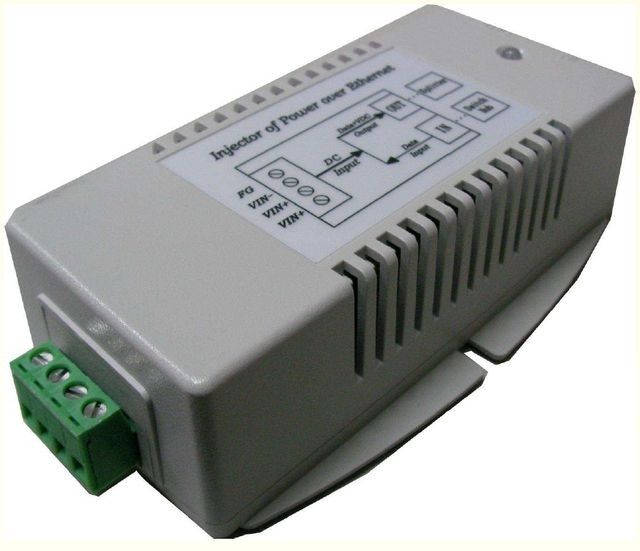

Tycon Power High Power DC to DC Converter 18-36VDC In, 56VDC 70W 2 Ch 802.3at Out DCDC

Out of stock
Regular price $149.95 USD

Product details

  • Type Power
  • Vendor TYCON Systems
  • SKU TP-DCDC-2456GD-VHP

Documentation

The Tycon Power DCDC converter supplies 35W per POE channel. One POE channel is using pins 4,5,7,8 and the other POE channel utilizes pins 1,2,3,6. By splitting the power onto separate POE channels, the device can achieve 70W total supplied power to the end device. The TP-DCDC-2456GD-VHP has separate LED indicators for indicating which 802.3at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2.


The TP-DCDC-2456GD-VHP has been qualified by Axis to be used with their Q60 series of PTZ cameras. The Tycon DC to DC Converter can be used with any 802.3at device as it will supply 35W to any 802.3at POE channel detected. If two channels are detected on the client then 70W power will be supplied.

They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.


Features
  • Qualified for Axis Q60 Series PTZ Cameras
  • Input Voltage 18-36VDC; Output 2 Channel 56VDC 802.3at
  • Integrated POE Inserter
  • High Power 70W (35W per Channel>
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation
  • Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5in)

Weight: 255g (9oz)
