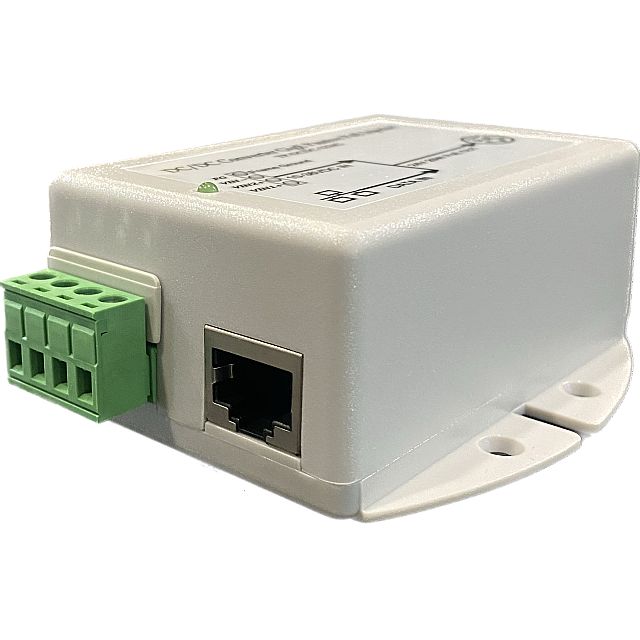

Tycon Power GIGABIT 9-36VDC In, 48VDC Out 24W DC to DC Converter and POE Inserter

Out of stock
Regular price $49.95 USD

Product details

  • Type Power
  • Vendor TYCON Systems
  • SKU TP-DCDC-1248G

TP-DCDC-1248G is a low cost and high efficiency solution for those requiring IEEE802.3af Power Over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle.


The output voltage is regulated at 48VDC, and it has two isolated inputs for connecting 2 power sources (like a primary and backup power source).


Product Features
  • Input Voltage 9-36VDC; Output 48VDC
  • Integrated Gigabit POE Inserter
  • Output Power 24W
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation
  • Removable Wire Terminal Input for up to 12AWG wires
Product Specifications
  • DC Output Voltage: 48V (Passive)
  • Data in & Data/POE Output Connector: RJ45 (Shielded)
  • Output Current (max): 0.4A
  • Output Power (max) 19W
  • Self Consumption Power: 1W
  • Efficiency (min): 75%
  • Line Regulation: 1%
  • Load Regulation: 5%
  • Ripple: 1%
  • Noise: 1%
  • Operating Temps: -30 to +60deg C (-40 to +176deg F)
  • Operating Humidity: 5% - 90%
  • Dimensions: 85 x 76 x 36 mm (3.4 x 3 x 1.4 in)
  • Weight 134g (4.7oz)
