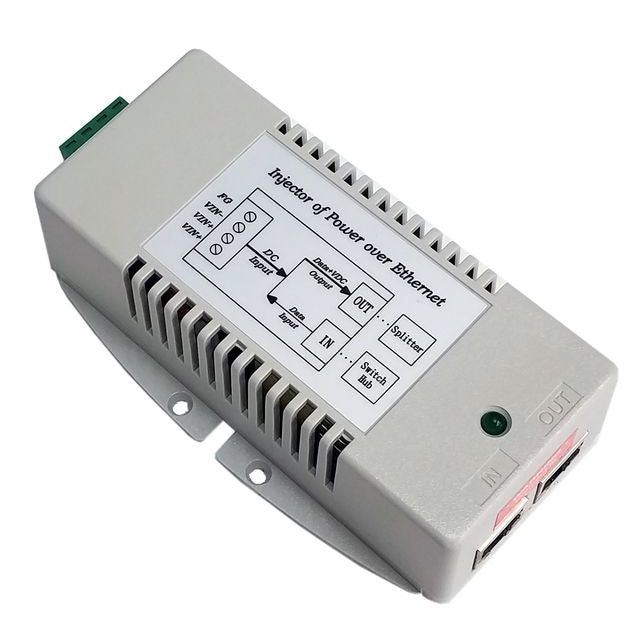

Tycon Power GIGABIT 10-15VDC In, 56VDC Out Passive 50W High Power DC to DC Converter/PoE Inserter

Out of stock
Regular price $64.95 USD

Product details

  • Type Power
  • Vendor TYCON Systems
  • SKU TP-DCDC-1248G-HP

The TP-DCDC-1248G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a +/-12V battery system.

Product Features

• Input Voltage 12VDC or 24VDC or 48VDC

• IEEE 802.3af/at Compliant or Passive PoE Output

• Dual Inputs for Connecting 2 Power Sources

• Integrated 10/100/1000MB PoE Inserter

• High power up to 50W

• Low Self Consumption Power

• Short Circuit, Over Current and Reverse/Over Voltage Protect

• High Temperature Operation• Compact Size - Maximize Available Space


• 12V / 24V / 48C Battery Systems, Vehicle Applications

• Wireless Access Points, and Client Devices

• IP Phone and Security Camera Systems

Product Specifications

• DC Input Voltage: 10VDC - 15VDC

• DC Output Voltage: 56V (Passive)

• Data in & Data/POE Output Connector: RJ45 (shielded)

• Output Current (max): 0.9A

• Output Power (max): 50W

• Self Consumption Power: 1W

• Efficiency (min): 75%

• Operating Temp: -30 to +60deg C (-22 to +140deg F)

• Operating Humidity: 5% - 90%

• Dimensions: 125 x 75 x 38 mm (4.9 x 3 x 1.5 in)

• Weight: 300g (10.6oz)
