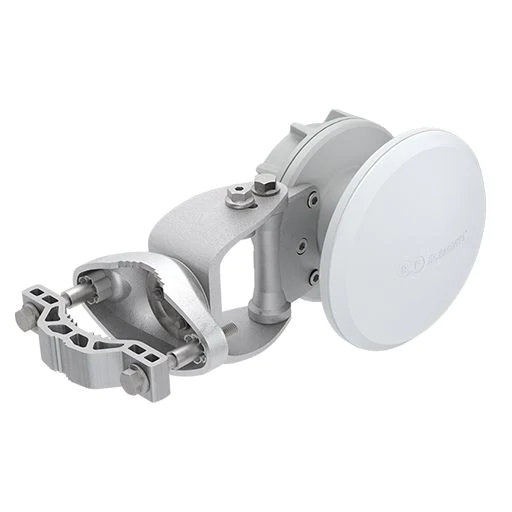

RF elements 80° Symmetrical Horn Antenna with TwistPort Connector [HG3-TP-S80]

The 80 Degree Symmetrical Horn TwistPort Antenna Gen2 features multiple improvements on RF performance and industrial design, including optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.

Product Features:

• Antenna Connection: TwistPort- Quick Locking Waveguide Port
• Antenna Type: Horn
• Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminum, Stainless Steel
• Environmental: IP55
• Flame Rating: UL 94 HB
• Pole Mounting Diameter: 30-80mm (RF Elements recommends as close as possible to 80mm)
• Temperature: -30°C to +55°C (-22°F to +131°F)
• Wind Survival: 160 Km/Hour
• Wind Loading: 22 N at 160 Km/Hour
• Mechanical Tilt: ±25°
