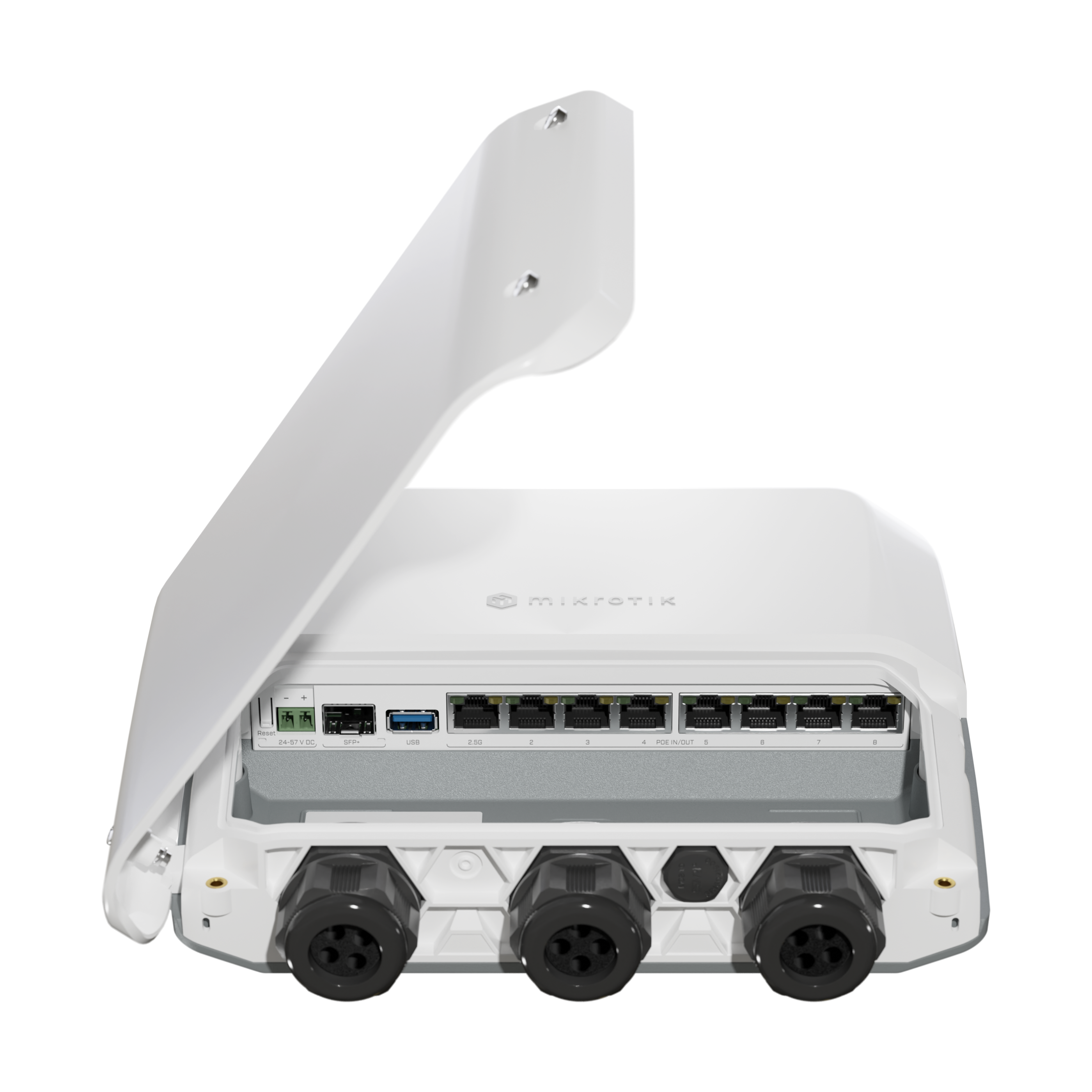

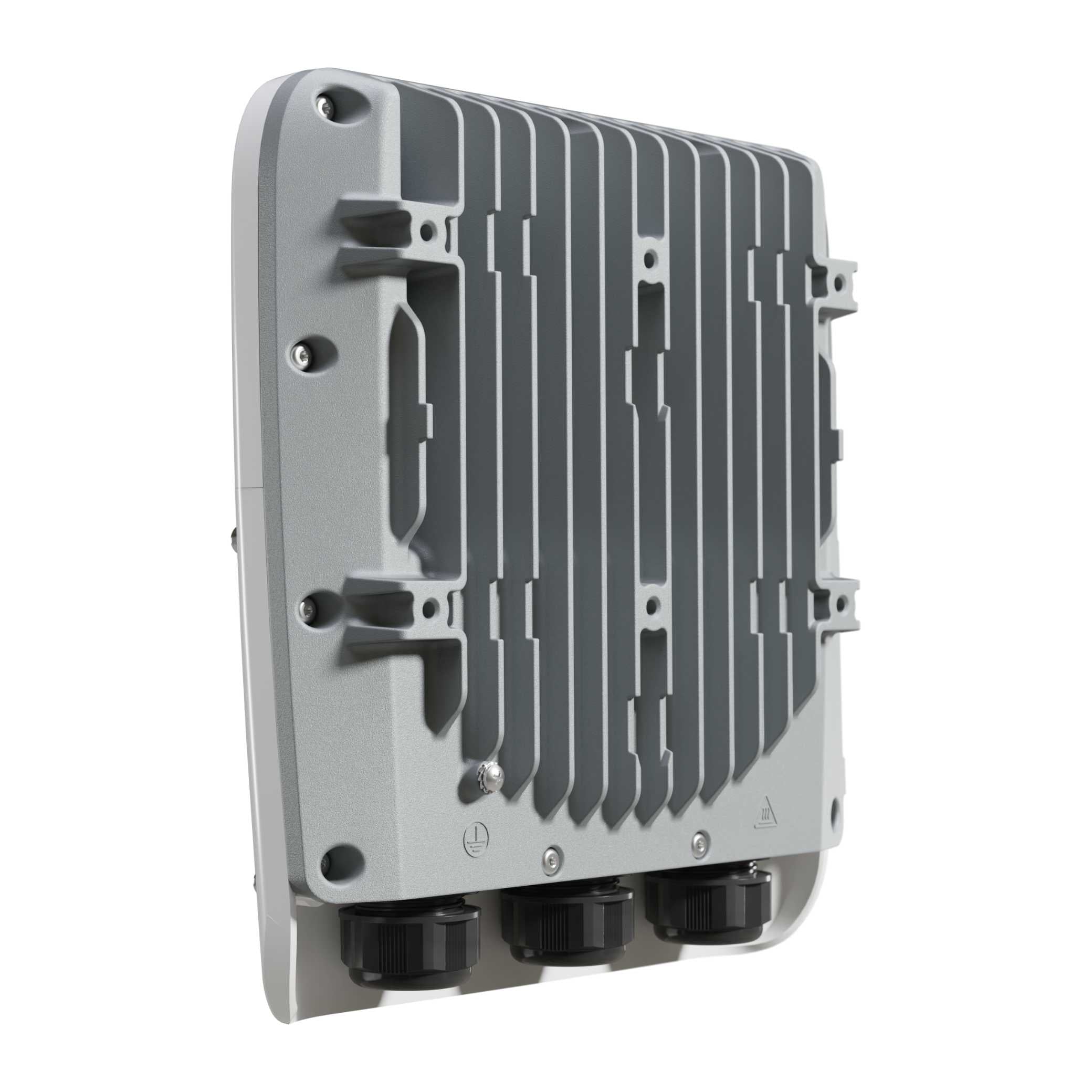

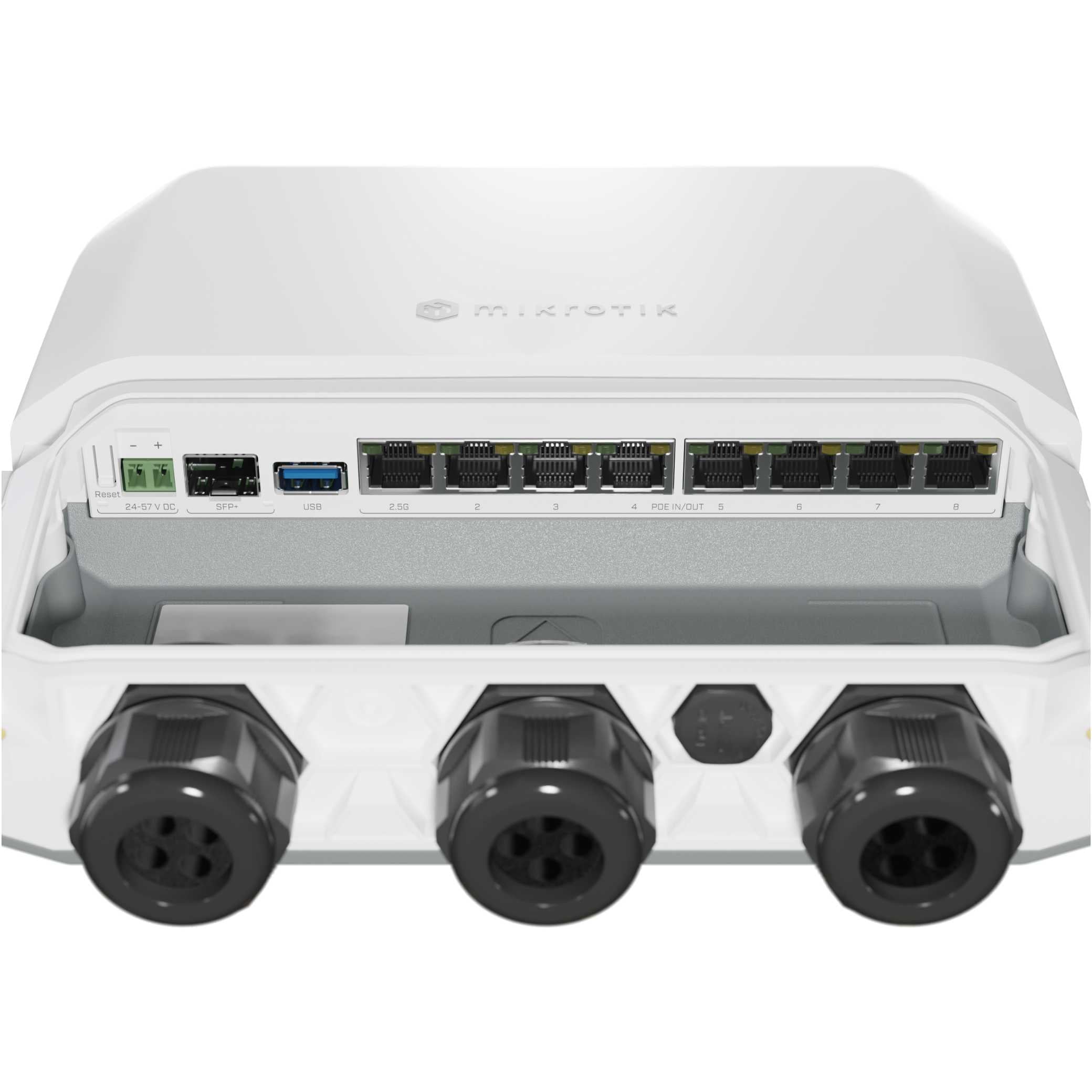

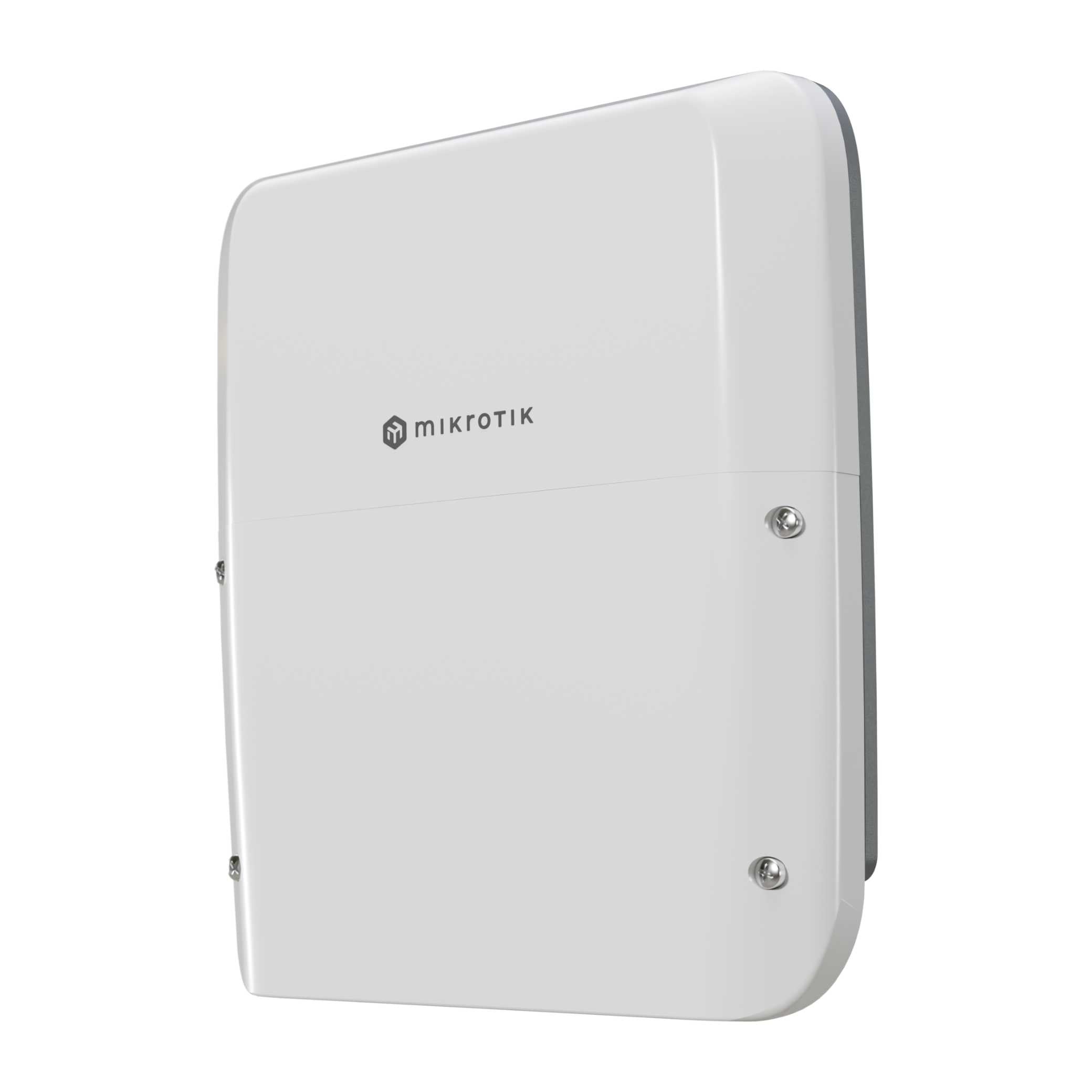

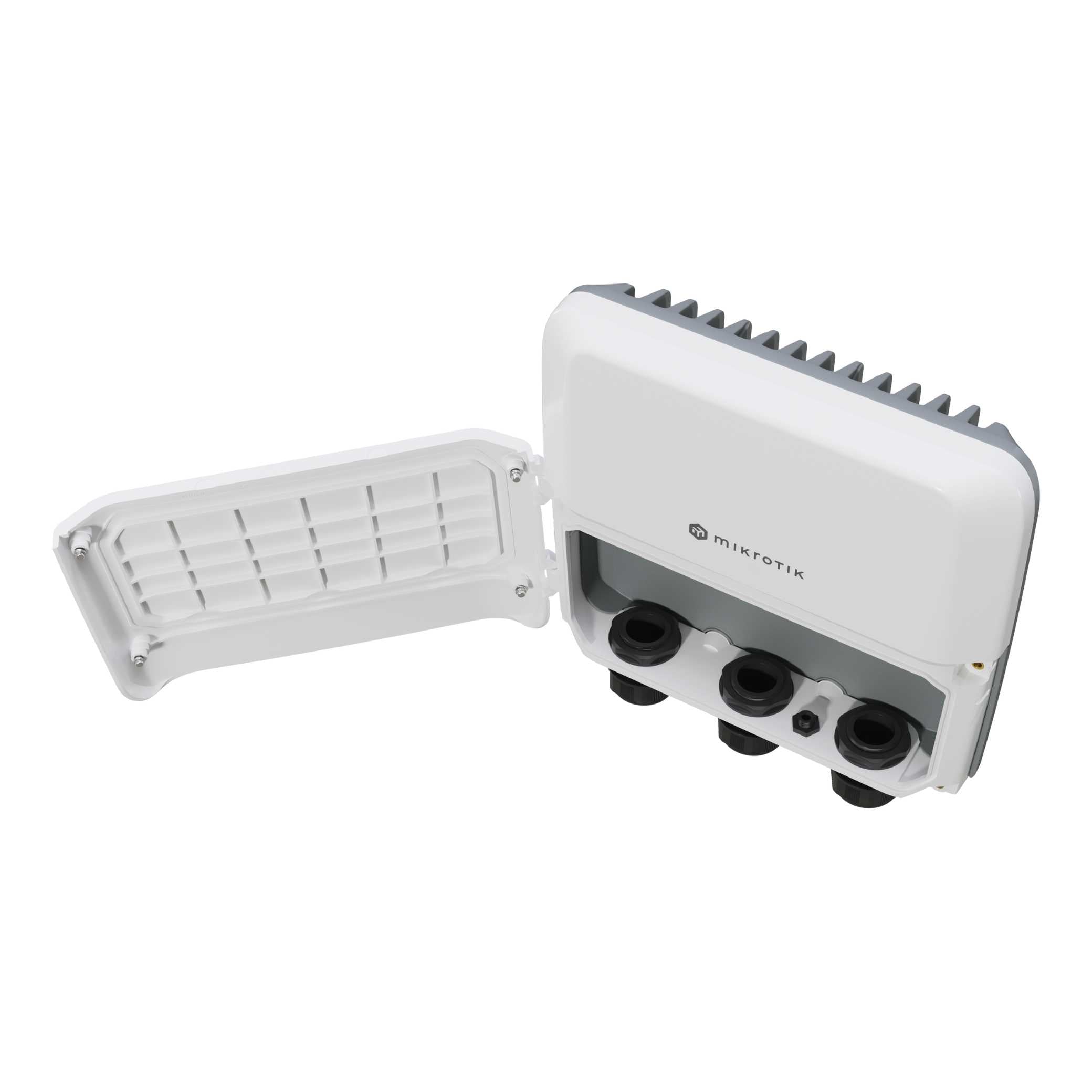

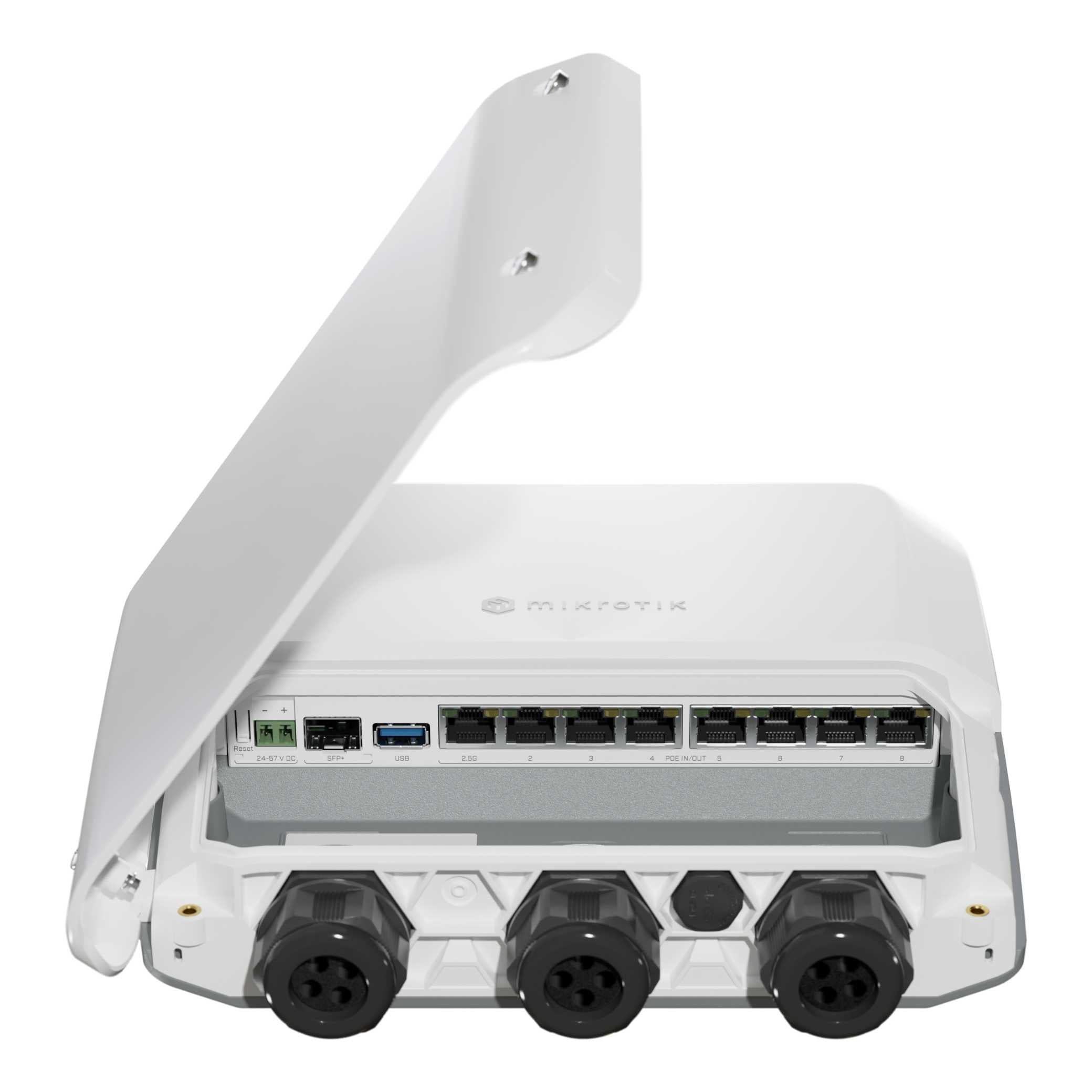

MikroTik RB5009 10G SFP+ 7x Gigabit Quad Core PoE-in PoE-Out Router [RB5009UPr+S+IN]

An outdoor version of our best-selling heavy-duty PoE router. Extensive power redundancy for the best price! 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet, 10G SFP+, 1GB of RAM, 1GB NAND, modern quad-core CPU, 9 (!) powering options, durable IP67 waterproof enclosure.

Adding an IP66-rated waterproof enclosure to the RB5009 series allowed MikroTik to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You’re getting one of the most powerful outdoor networking devices for the best price on the market!

When we say “extensive power redundancy”, we really mean it: the unit offers 9 possible ways of powering. There’s a 2-pin power connector on the front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the one with the highest voltage when multiple sources are available. RB5009 takes up to 21W to power itself. If you’re using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. Unprecedented redundancy!

All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages.

Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.

This product also features single voltage PoE-out – it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.

When it comes to processing power and available use-cases, this router can do it all:

• PPPoE termination
• DHCP to customers
• Local Queuing
• MPLS Push/Pop/Swap and MPLS Forwarding
• VPLS/VXLAN Termination
• Hardware bridging, and so much more!


Compatible with the MTP250 26V and 53V outdoor power supplies!

The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!

Product Features:

• 7X Gigabit Ethernet Ports
• 1 2.5 Gigabit Ethernet
• Powerful Quad-Core CPU
• 9 Powering Options (including 1 2-pin terminal)
• 10G SFP+
• 1G DDR4 RAM
• 1GB NAND
• RouterOs V7

Product Specifications:

• CPU: Quad-Core 88F7040 1.4 GHz
• CPU architecture: ARM 64bit
• Size of RAM: 1 GB
• RAM type: DDR4
• Storage: 1 GB, NAND
• Number of 1G Ethernet ports: 7
• Number of 2.5G Ethernet ports: 1
• Number of 10G SFP+ ports: 1
• USB: 1 USB 3 type A
• Operating system: RouterOS v7, License level 5
• Switch chip model: 88E6393
• Dimensions: 222 x 239 x 57 mm
• Operating temperature: -40°C to +70°C

Powering:

• PoE-in: 802.3af/at
• PoE-Out: 02.3af/at Same voltage as supplied via 2-pin terminal - Passive PoE or
• 802.3af/at Compatible (if 44–57V PSU used)
• PoE-Out ports: Ether1 - Ether8, max out per port output (input < 30 V): 620 mA,
• max out per port output (input > 30 V): 420 mA
• Smart PoE: Controller
• Max total out: 2.59 A
• Total output power: 130 W
• Total output current: 2.28 A
• Number of DC inputs: 2
• Supported input voltage: 24-57 V (PoE in) 24-57 (2-pin terminal)
• Max power consumption (without attachments): 15 W
• Max power consumption: 150 W

Product Includes:

• RB5009UPr+S+OUT

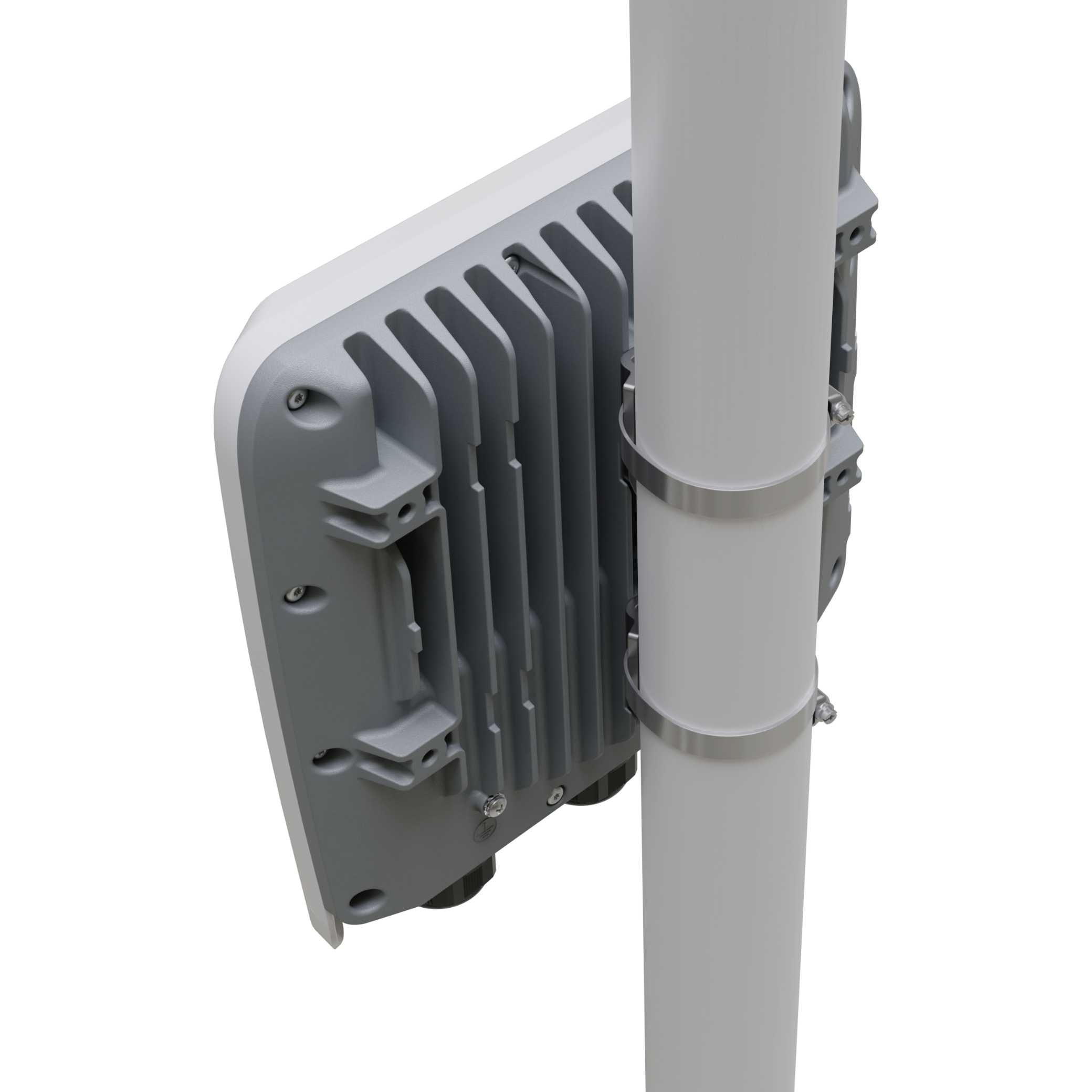

• Hose clamp

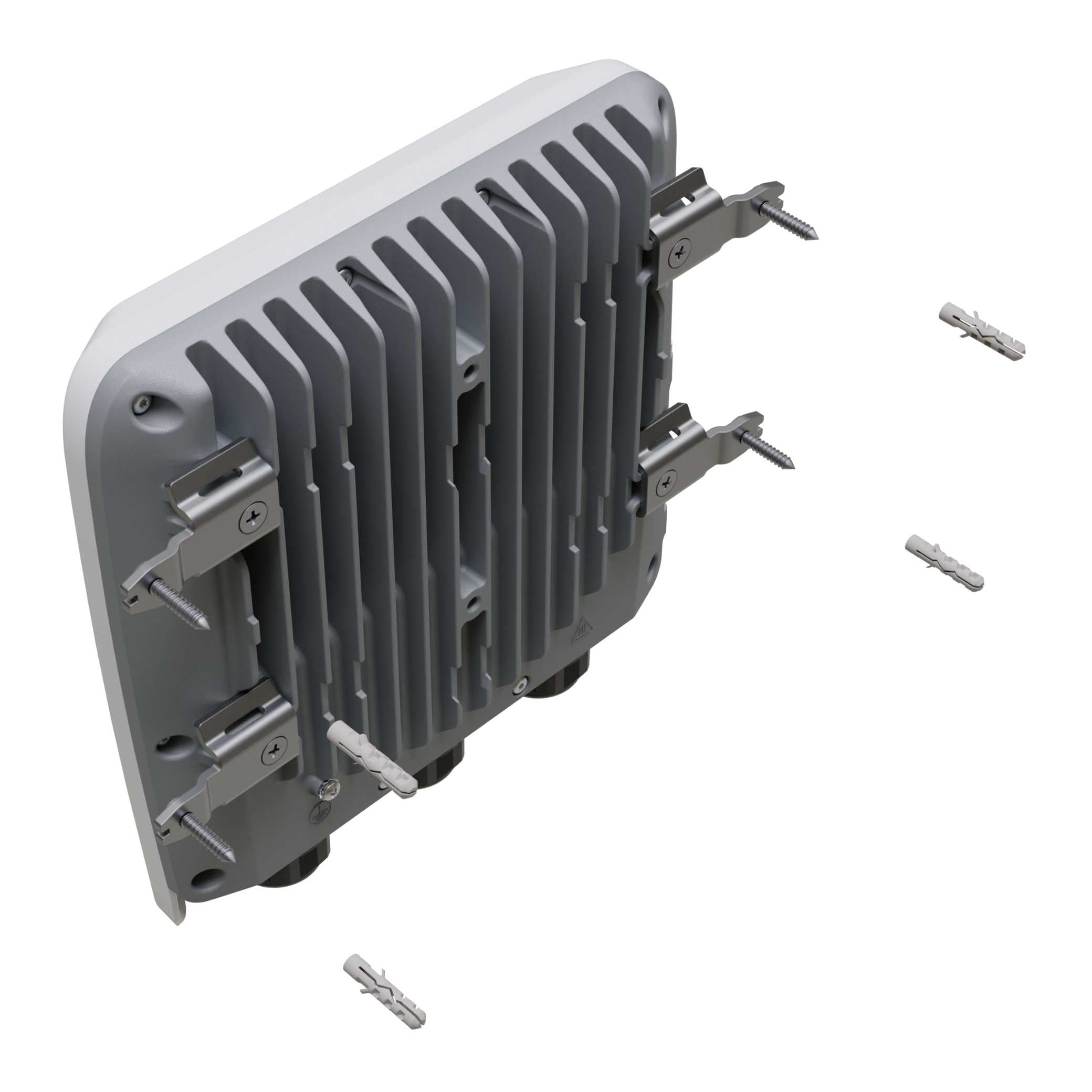

• Fastening set
• Screw set
