Product details
- Type Accessories
- Vendor MikroTik
- SKU QMP-LHG
Documentation
- Datasheet Link
Share on Social Media:

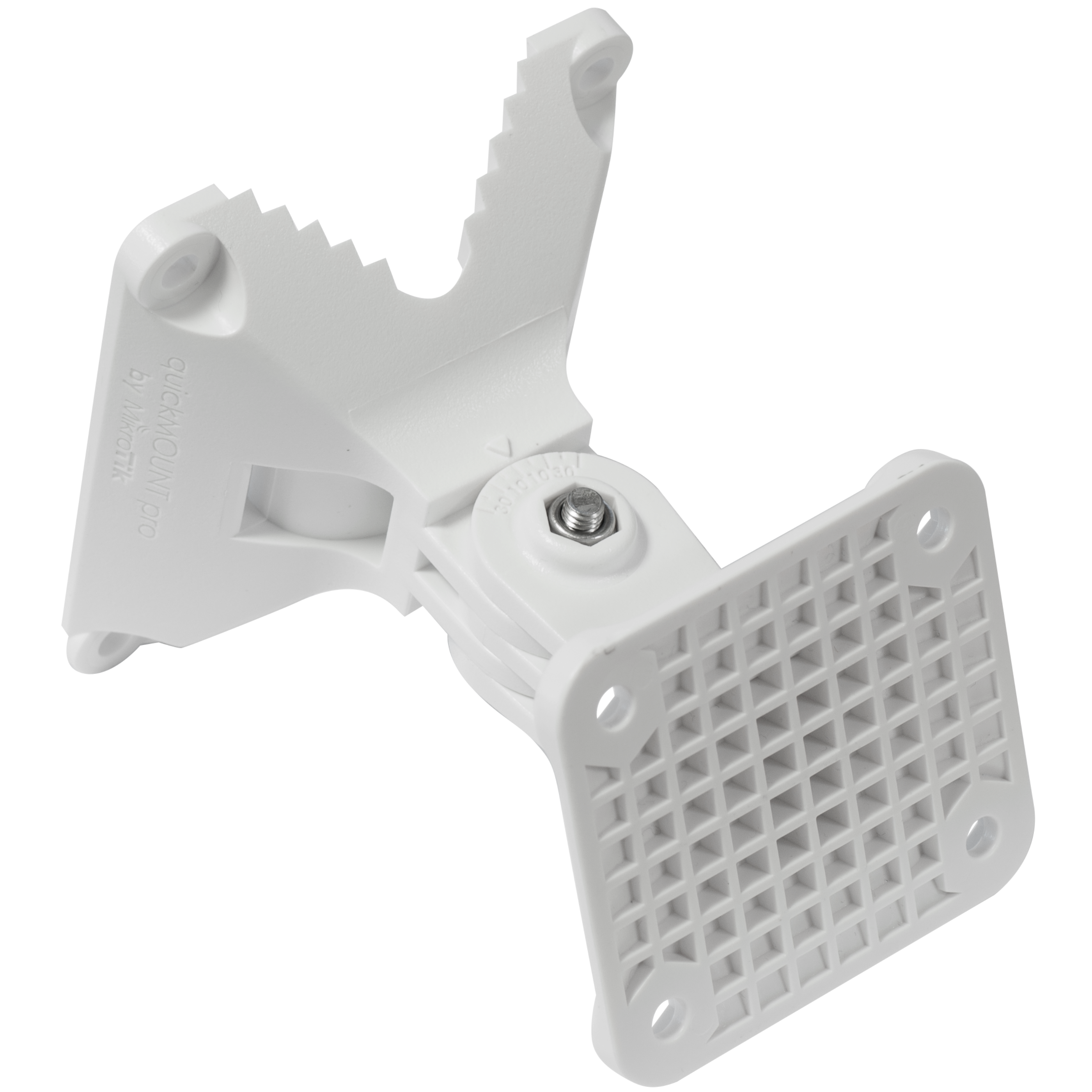

The quickMOUNT pro is an advanced wall or pole mount adapter for small point to point and sector antennas. It gives the possibility to turn antenna within 140° both in horizontal and vertical plane. With the quickMOUNT pro it is possible to perfectly set antenna alignment using integrated graduated scale.
- It's simple and low cost
- Adjustable horizontally and vertically
- Wall or pole mountable
- Durable due to it's special plastic composite material - anvilNITE (TM)
- Dimensions 95 x 88 x 112 mm (3.75 x 3.5 x 4.4 in.)
- Tube diameter: 35 mm (1.4 in.)
- Max tube diameter to which mount can be attached: 65 mm (2.56 in.)
- Maximum antenna weight: 1.5 kg
- Maximum wind load: 100 N
- Turn angle for MikroTik products: 140°
- Compatible devices: LHG 5
- anvilNITE
(4) 6x30mm wall anchor
(4) Self tapping screw
(4) M6x20 buton head screw
(4) M6 locking nut
(1) 50-70mm hose clamp
