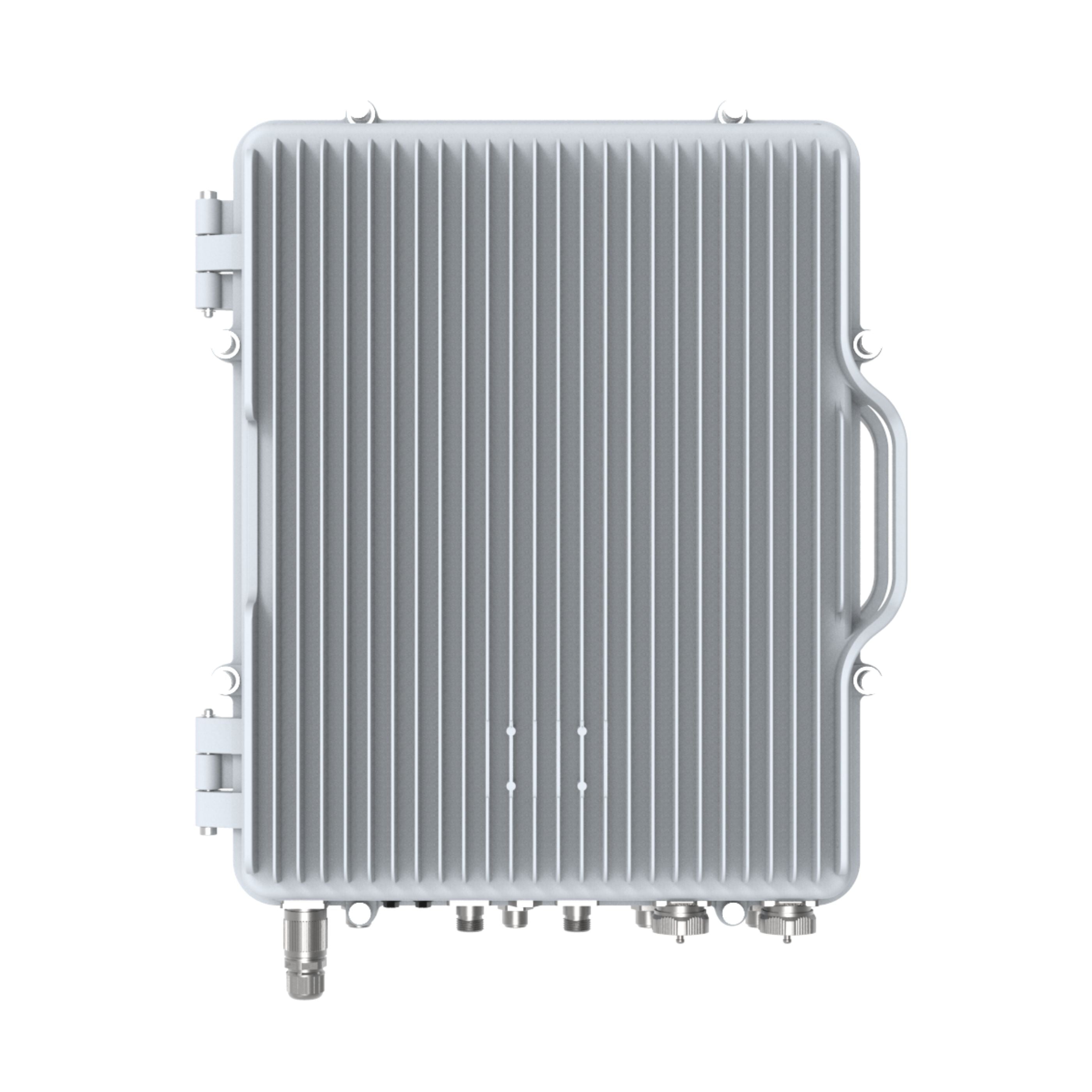

MikroTik Intercell 10 B38+B39 Outdoor TDD-LTE Dual Carriers Base Station for Bands 38 and 39 [P02003-B38B39-10W]

Out of stock
$3,500.00 USD

Product details

  • Type LTE
  • Vendor MikroTik
  • SKU P02003-B38B39-10W

Documentation

Share on Social Media:

Description
The MikroTik Intercell 10 B38+B39 [P02003-B38B39-10W] is an outdoor TDD-LTE dual carriers base station with 2*(2*10W) output power (each carrier supports 2x2 MIMO with 10W output each RF channel ). The unit is compact, light weight, and easy to deploy. The Intercell 10 B38+B39 offers excellent performance, helping operators provide better coverage and higher capacity with minimal effort.
  • Standard TDD bands 38 and 39
  • Peak data rate of each carrier (20 MHz)
    • DL 140Mbps (256QAM,SF2)
    • UL 30Mbps (64QAM,SF1)
  • Peak data rate of carrier aggregation (20 MHz)
    • DL 280Mbps (256QAM,SF2)
    • UL 60Mbps (64QAM,SF1)
  • Maximum 2 * 192 RRC connected users and 2 * 96 active users
  • 5/10/15/20 MHz operation bandwidth
  • All IP based backhaul, many IP backhaul methods can be used, including RJ45 Ethernet, SFP
  • Plug-and-play with SON features, including self-configuration/self-optimization/self-healing
  • High transmission power to extend NLOS coverage, low power consumption to save OPEX.
