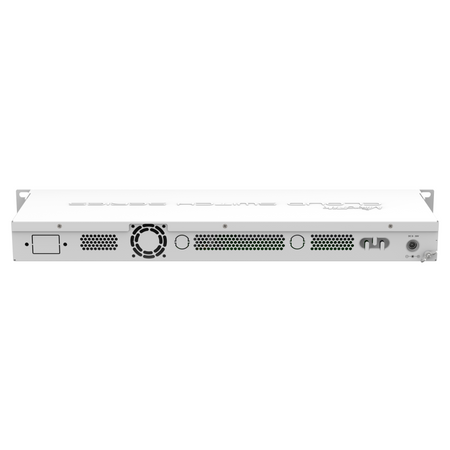

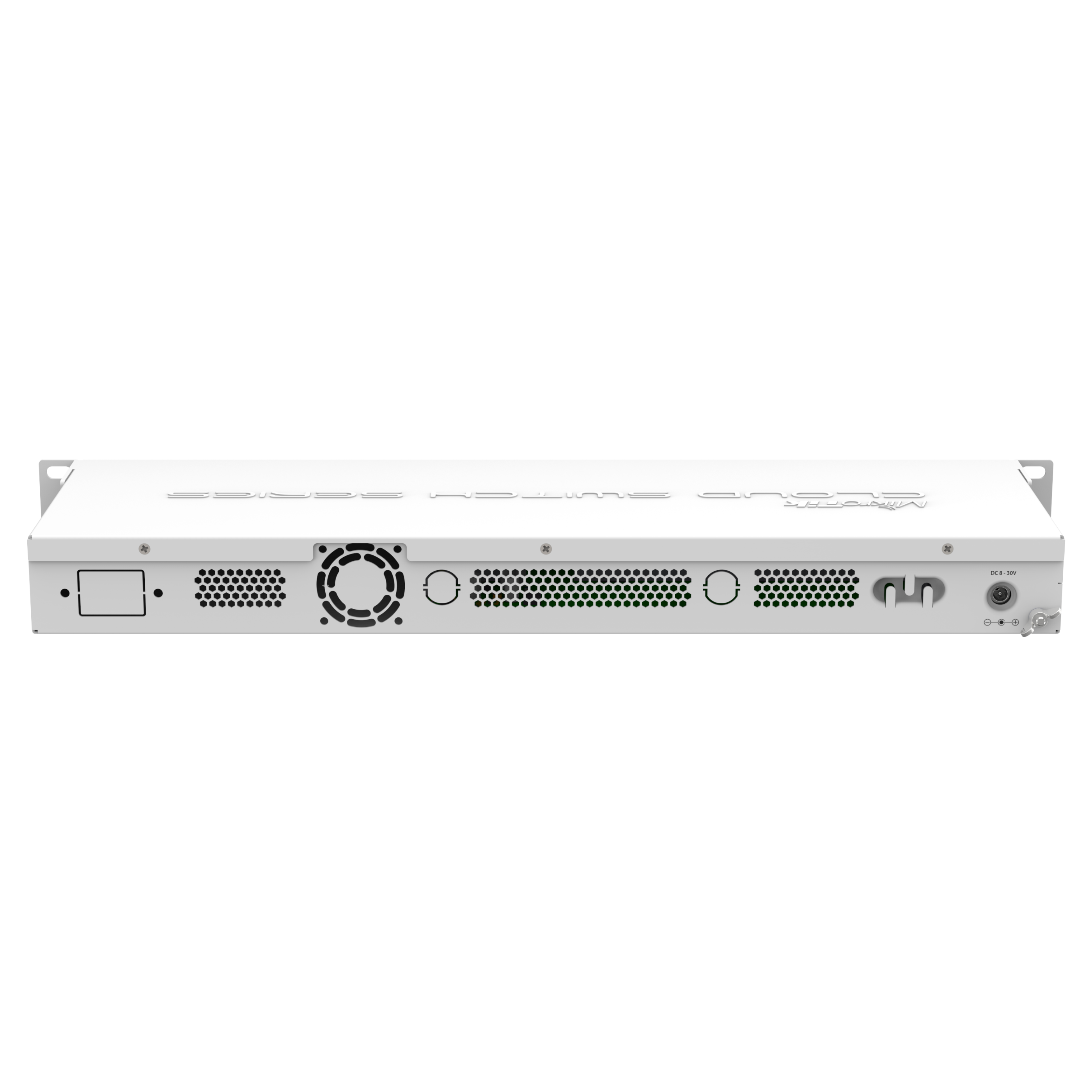

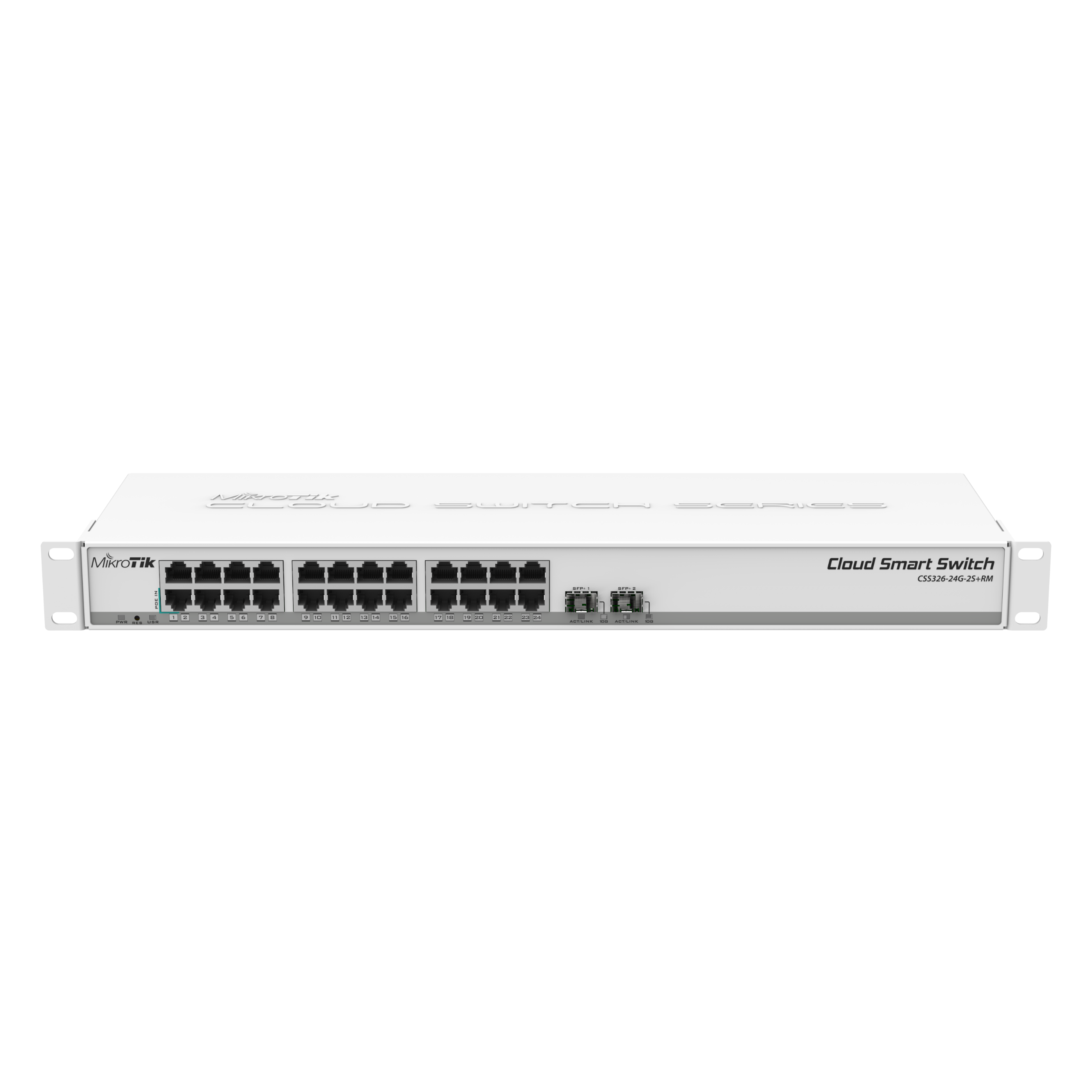

MikroTik CSS326 Cloud Smart Switch w/24xGB and 2xSFP+ [CSS326-24G-2S+RM]

The CSS326-24G-2S+RM is a MikroTik Cloud Smart Switch powered by a Marvell DX switch chip. The device running on an operating system designed specifically for MikroTik switch products - SwOS, which is configurable form your web browser. It gives you access to all the basic functionality for a manages switch, and more; allowing you to manage port-to-port forwarding, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. The SFP cage supports both 1.24Gb SFP and 10Gb SFP+ modules.

Product Features:

• Non-blocking Layer 2 switching capacity
• 16K host table
• IEEE 802.1Q VLAN
• Supports up to 4K simultaneous VLANs
• Port isolation
• Port security
• Broadcast storm control
• Port mirroring of ingress/egress traffic
• Rapid Spanning Tree Protocol
• Access Control List
• MikroTik neighbor discovery
• SNMP v1
• Web-based GUI

• Product code: CSS326-24G-2S+RM
• Switch chip model: 98DX3216A1
• Storage type: Flash
• Storage size: 2 MB
• 10/100/1000 Ethernet ports: 24
• SFP+ cages: 2
• Operating system: SwOS
• Supported input voltage: 12 to 30V (jack or passive PoE)
• Dimensions: 440 x 144 x 44 mm
• Operating temperature: -40 to +70°C tested
• Max power consumption: 19W
• Serial port: RJ45

(1) Mikrotik CSS326-24G-2S+RM Cloud Smart Switch

(1) 24V 1.2A Power Adapter

(2) Rack Ears
