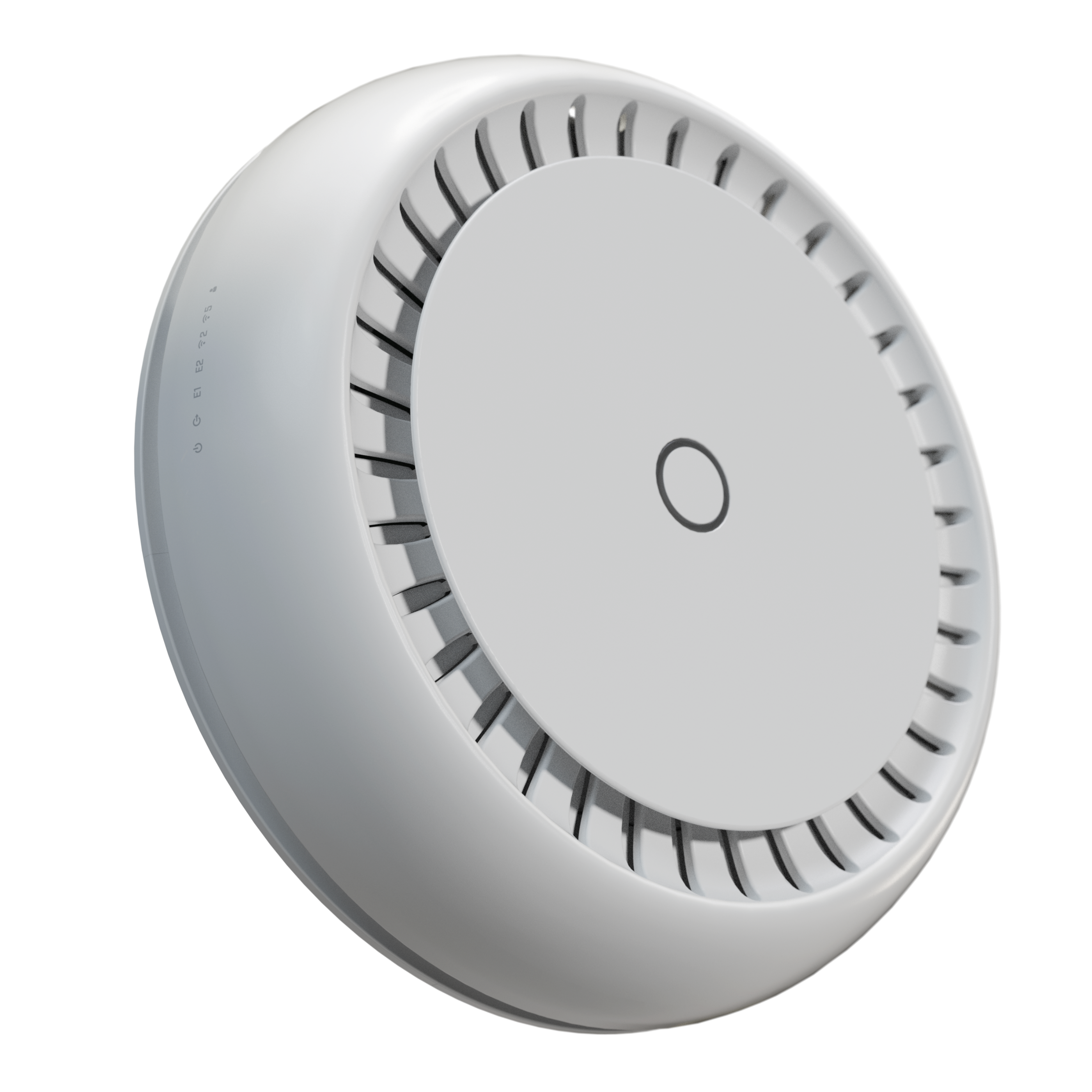

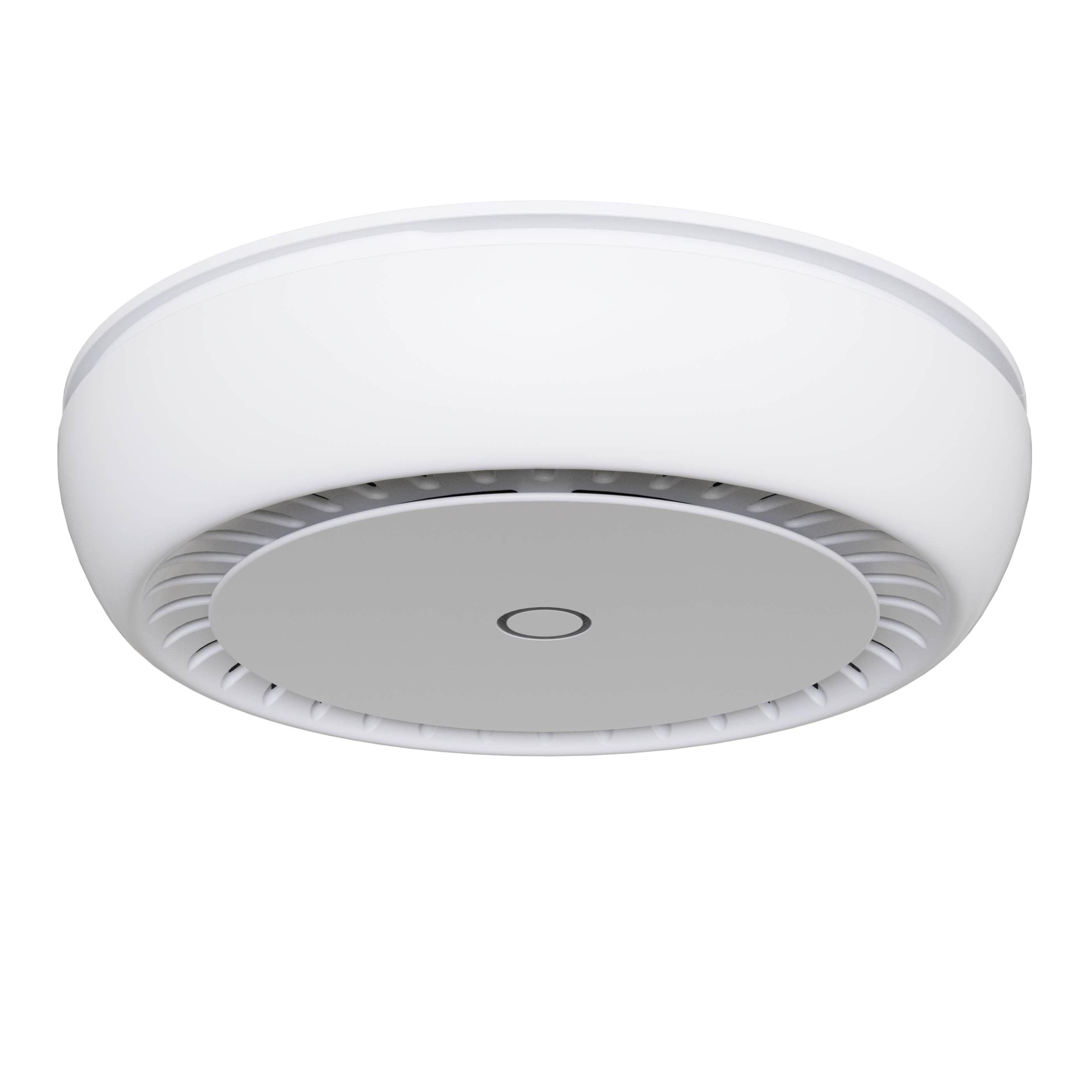

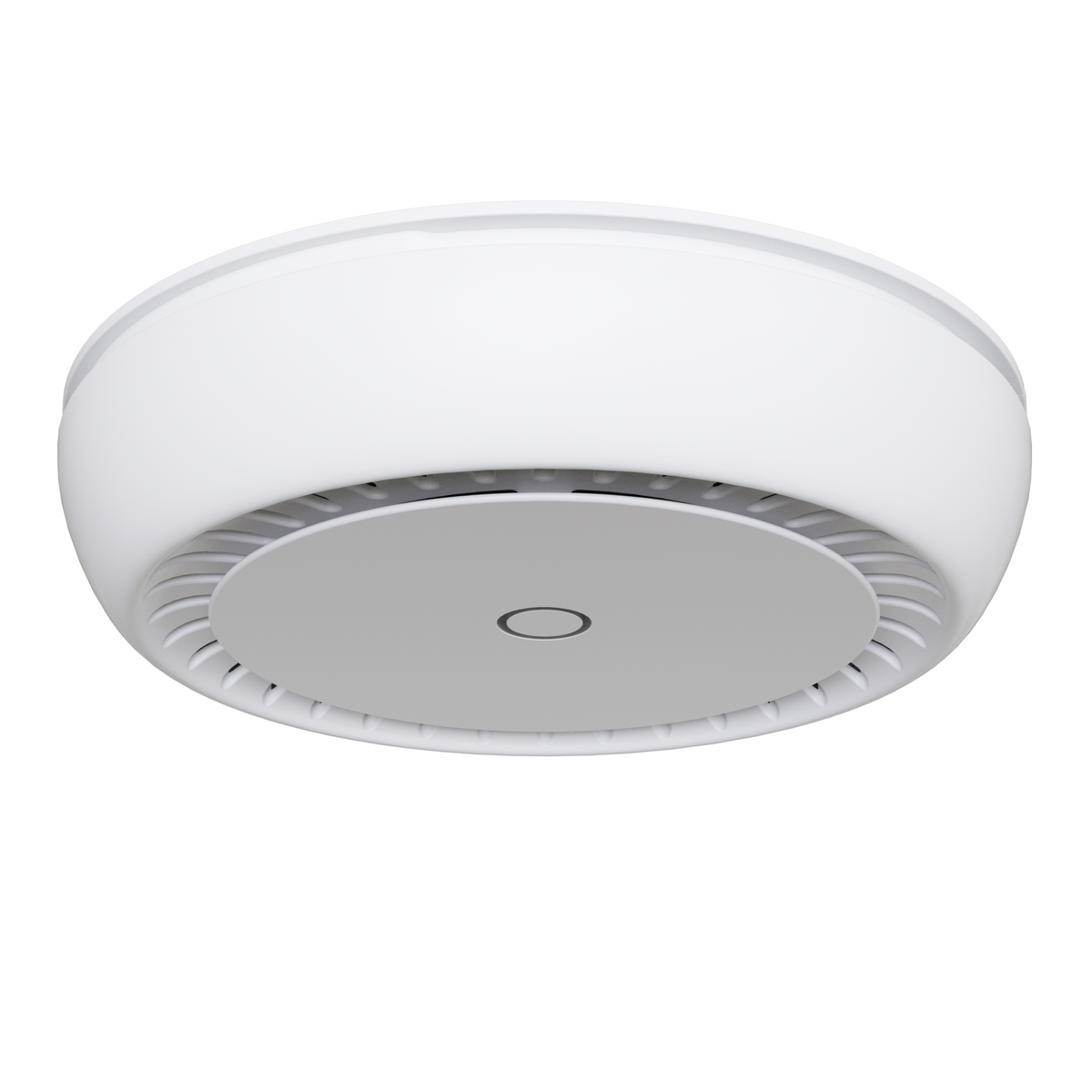

MikroTik cAP XL ac Dual Band Wall / Ceiling Access Point INTL [RBcAPGi-5acD2nD-XL]

In stock
Regular price $99.00 USD

Product details

  • Type WiFi
  • Vendor MikroTik
  • SKU RBcAPGi-5acD2nD-XL


Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

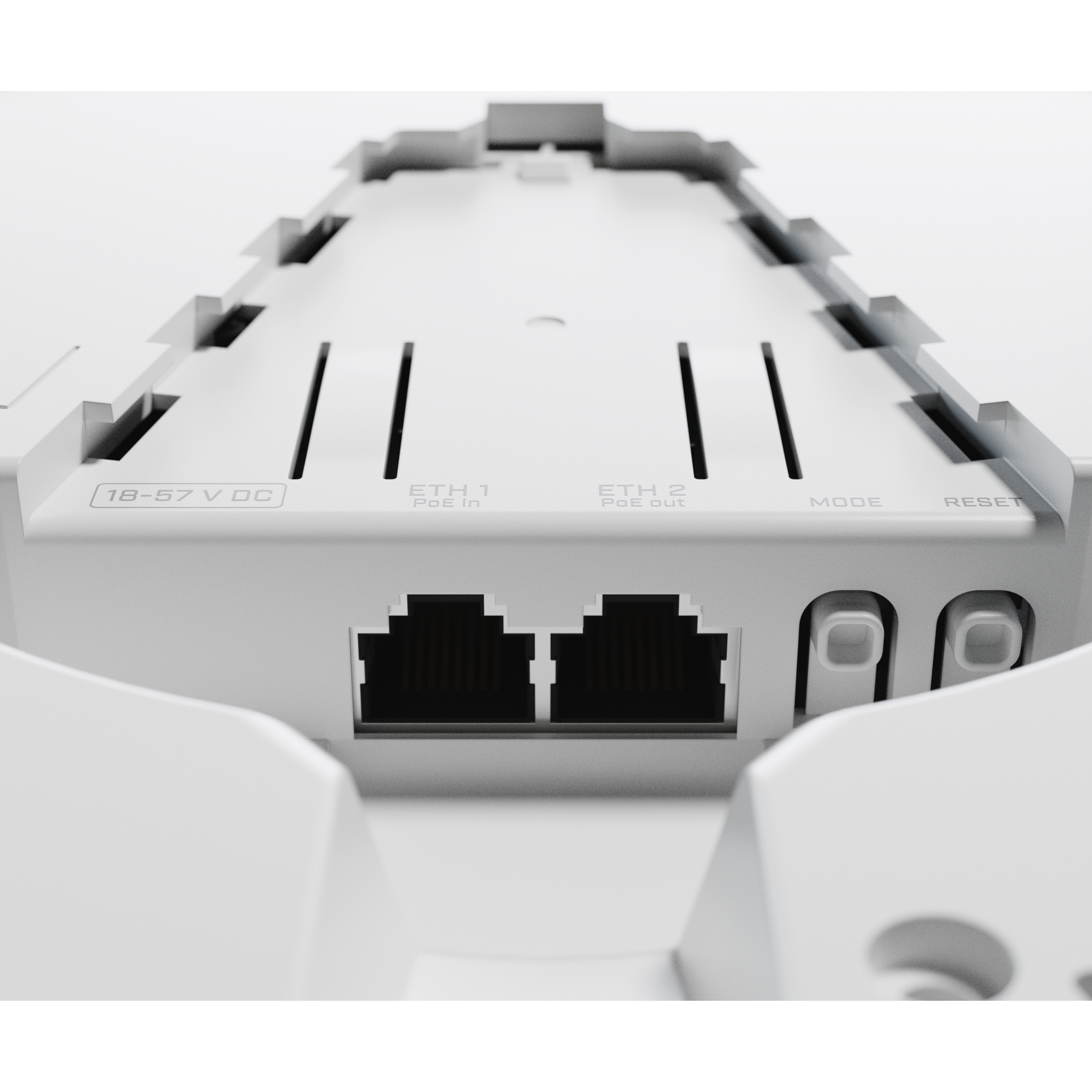

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.

Product Specifications:

  • Product code: RBcAPGi-5acD2nD-XL
  • CPU: Quad core IPQ-4018 710 MHz
  • Size of RAM: 128MB
  • RAM type: DDR3L
  • Storage: 16MB, Flash
  • Number of 1G Ethernet ports: 2
  • Wireless: 2.4GHz, 5GHz
  • Supported protocols: 802.11b/g/n, 802.11a/n/ac (respectively)
  • Antenna gain: 6dBi, 5.5dBi (respectively)
  • Number of chains: 2
  • Operating system RouterOS: (License level 4)
  • Switch chip model: IPQ-4018
  • PoE-in: 802.3af/at
  • PoE-out: Passive PoE up to 57V
  • Smart PoE: Injector
  • Number of DC inputs: 1
  • PoE-out ports: Ether2
  • Supported input voltage: 17-57V
  • Power adapter nominal voltage: 24V
  • Power adapter nominal current: 1.2A
  • Max power consumption (without attachments): 11W
  • Max power consumption: 24W
Product Includes:
(1) RBcAPGi-5acD2nD-XL cAP XL ac Dual Band Wall / Ceiling AP
(1) 24V 1.2A power adapter
(1) Ceiling mount
(1) Gigabit PoE injector
(1) Fastening set
