Meraki Omni Antenna 2.4/5GHz 4/7dBi MiMO Dual-pol N-type

Out of stock
Regular price $235.39 USD

Product details

  • Type Antennas
  • Vendor Meraki
  • SKU MA-ANT-20

This product usually ships within 3-5 business days.

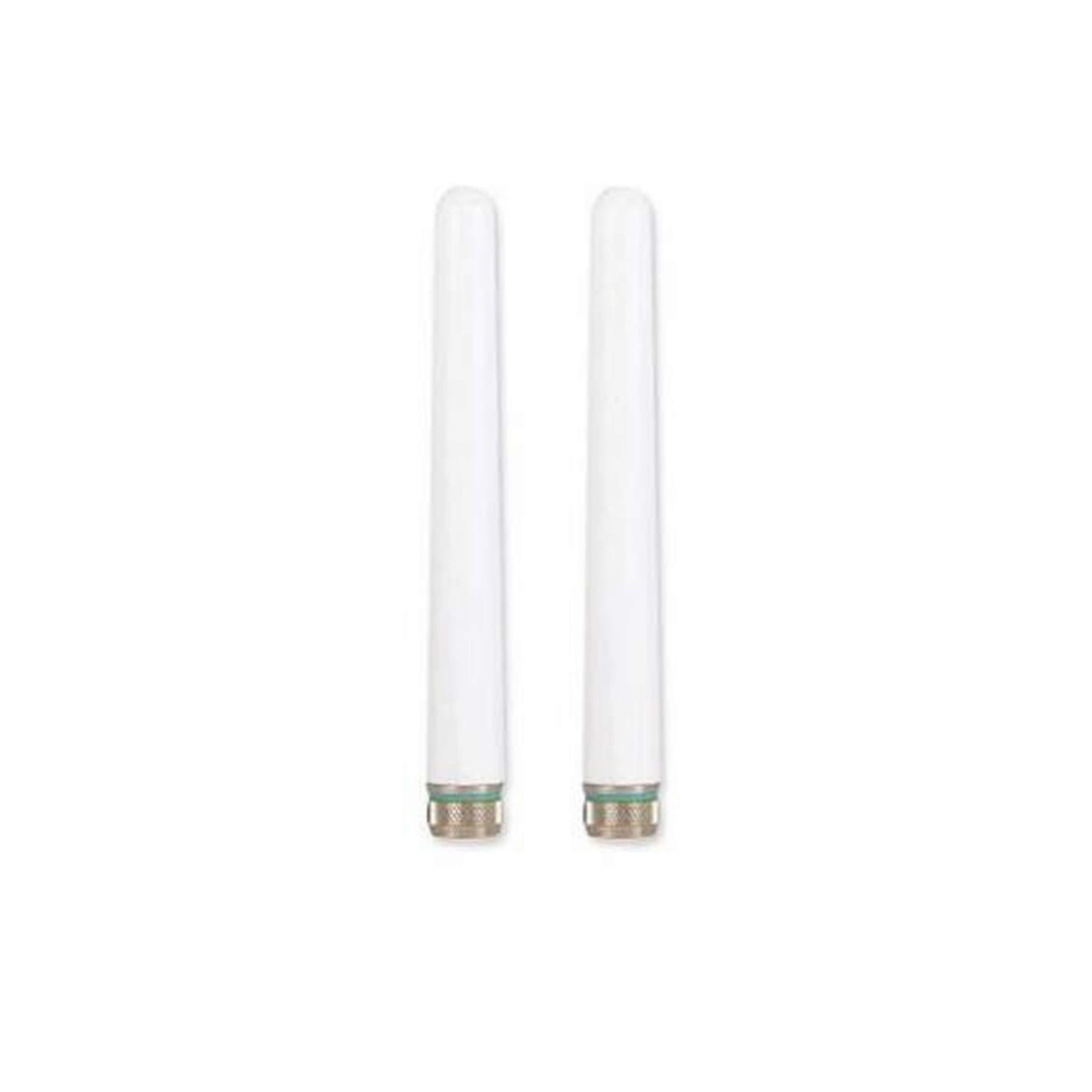

The Meraki MA-ANT-20 antenna is a multi-band, omni-directional antenna designed for use with Meraki APs that have N-type connectors. It is a versatile antenna and is suitable for a broad range of applications. The MA ANT-20 is sold in sets of 2.


Easy to Mount

These antennas are equipped with everything needed to easily attach to a Meraki AP.


Improved Connectivity

The Meraki antenna improves the reach and connectivity of a network by increasing signal strength between clients and repeaters.


Product Specifications:
  • Frequency range: 2.4-2.5GHz; 5.15-5.875GHZ
  • Gain: 2GHz: 4dBi, 5GHz: 7dBi
  • Polarization: Vertical
  • Material: ABS plastic
  • Operating temperature: -40 to 158deg F (-40 to 70deg C)
  • Connector: N-type
  • Dimensions: 1 x 7.1in (25 x 180mm)
Compatible with:
  • MR66
  • MR72
The Meraki MR series is an enterprise-grade line of cloud-managed WLAN access points. It is designed for challenging enterprise environments, the MR access points use advanced 802.11n technologies including MiMO, beamforming and channel bonding to deliver the throughput and reliable coverage required by demanding business applications.


Product Includes:

  • 2 x MA-ANT-20 omni antennas
Mounts directly to units. No cable required.
