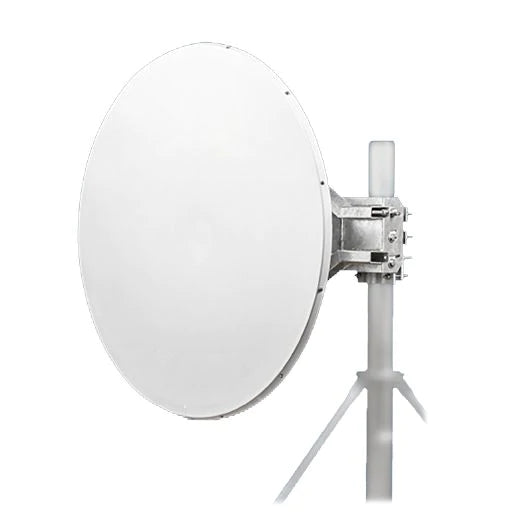

Jirous JRMC-1200-10/11Ra 11GHz Parabolic Dish Antenna with JRZ-1200 Adjustable Wind Brace 2-Pack

Out of stock
Regular price $2,979.00 USD

Product details

  • Type Antennas
  • Vendor Jirous
  • SKU JRMC-1200-10/11Ra 2-Pack

Documentation

This product is too bulky to ship via Ground Carriers. Product will ship via Motor Freight. Contact us for questions about shipping this item.


Jirous JRMC-1200-10/11Ra 11GHz parabolic dish antenna is designed for microwave links at the frequency band 10 and 11 GHz. Precise performance with deep reflector dish is complying with standard ETSI class 3 and FCC Part 101A. The antenna is supplied together with a massive holder that allows easy mounting on a mast. Holder can be installed separately on the mast. Subsequently, the antenna with microwave unit can be simply hung up into it. Antenna holder allows fine setting elevation ± 15°and azimuth ± 7°. Ready for right and left side mounting. In the areas with the expected occurrence of the strong winds the usage of the (adjustable) wind bracing set is recommended. For mounting on the mast ø 60 – 80 mm the usage of the (adjustable) wind bracing set is strongly recommended. The usage of adjustable wind bracing set allows to set azimuth more comfortably. 2-Pack


Electrical Parameters:
  • Frequency range 10.0 – 12.0 GHz
  • Gain – Low frequency 40.0 ± 1 dBi
  • Gain – High frequency 41.0 ± 1 dBi
  • Front to back ratio ≥ 66 dB
  • Beamwidth-3 dB 1.5°
  • Return loss ≥ 18 dB/10.3 – 11.7 GHz
  • Polarization Linear, vertical/horizontal
  • Electrical Compliance
        US FCC Part 101A | 10.550 – 10.680 GHz
        US FCC Part 101A | 10.7 – 11.7 GHz
        Class 3 ETSI EN 302-217-4-2
        ACMA - RALI FX3 Grade B


Mechanical Parameters:
  • Parabola Ø 1200 mm, aluminum alloy
  • Radom UV steady plastic ABS
  • Input / output Circle waveguide Ø 19 mm
  • Installation for mast ø 80 - 120 mm ø 60 - 80 mm – with wind bracing set
  • Operating wind load
        without wind bracing set 110 km/h (68 mph)
        with wind bracing set 140 km/h (87 mph)
  • Survival wind load 210 km/h (130 mph)
  • Weight of antenna 40 kg (88.0 lbs.)
  • Shipping dimensions – 2 pcs 1300 x 1100 x 1430 mm / 110.4 kg (241.1lbs)


Product Includes:


(2) Jirous JRMC-1200 Antennas
(2) Jirous JRZ-1200 Adjustable Wind Braces
(1) User Guide
