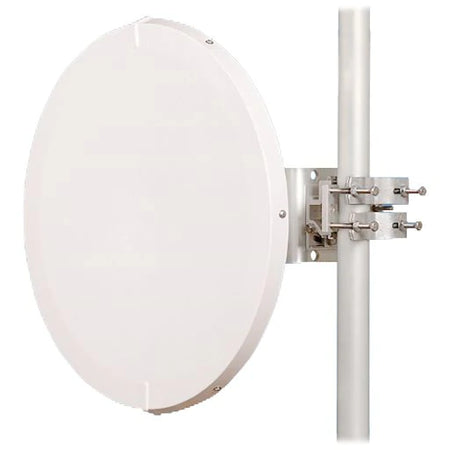

Jirous JRC-29DD DuplEX 4.9-6.1 GHz 29dBi RPSMA Parabolic Antenna with JDMW-900 AR Precision Mount

Out of stock
Regular price $639.00 USD

Product details

  • Type Antennas
  • Vendor Jirous
  • SKU JRC-29DD DuplEX - Precision RPSMA

Documentation

The Jirous dual-polarized parabolic antenna JRC-29 Deep Dish DuplEX Precision is designed for directional links with full-duplex mode or MIMO mode duplex mode at the frequency band 5 GHz with high isolation level. The antenna is designed for long distances. Its design with deep dish increases isolation among antennas on a mast increases front to back ratio. The Precision version includes a massive holder JDMW-900 developed for microwave links.


This is the revised version of this antenna which now has the JDMW-900 Precision Mount Included


Product Features:
  • Dual-polarized antenna Full duplex or MIMO, horizontal/vertical or 2x45° polarization
  • Good port to port isolation allows fully duplex links
  • Precise, robust bracket JDMW-900 developed for professional microwave links
  • Setting elevation (of a gradient) and azimuth has independent adjustment
  • Deep dish increases isolation among antennas on a mast
  • New concept with extended frequency band
  • High front-to-back ratio
  • Extra corrosion resistance
  • Direction links or client connection for medium distance or short link in difficult conditions
  • Possible to count attainable distance from section of calculation
  • Radom (plastic parabola cover) is included in the price
  • Radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity


Product Specifications:
  • Frequency range: 4.9 - 6.1 GHz
  • Gain: 29.0 ±1 dBi
  • VSWR: 5.1 - 5.9 GHz ≤1.6
  • Front to back ratio: ≥ 49 dB
  • Beamwidth (-3 dB): 5.5°
  • Polarization: linear, horizontal/vertical, or 2x45°
  • Port to port isolation (5.1 - 5.9 GHz): 53 dB (≥ 50 dB)
  • Connector: R-SMA
  • Parabola: ø 680 mm; aluminum alloy with baking color
  • Radom: UV stabilized ABS
  • Installation on mast: ø 40 - 120 mm right or left mounting


Product Includes:


(1) Antenna (Assembled)

(1) Mounting Bracket
