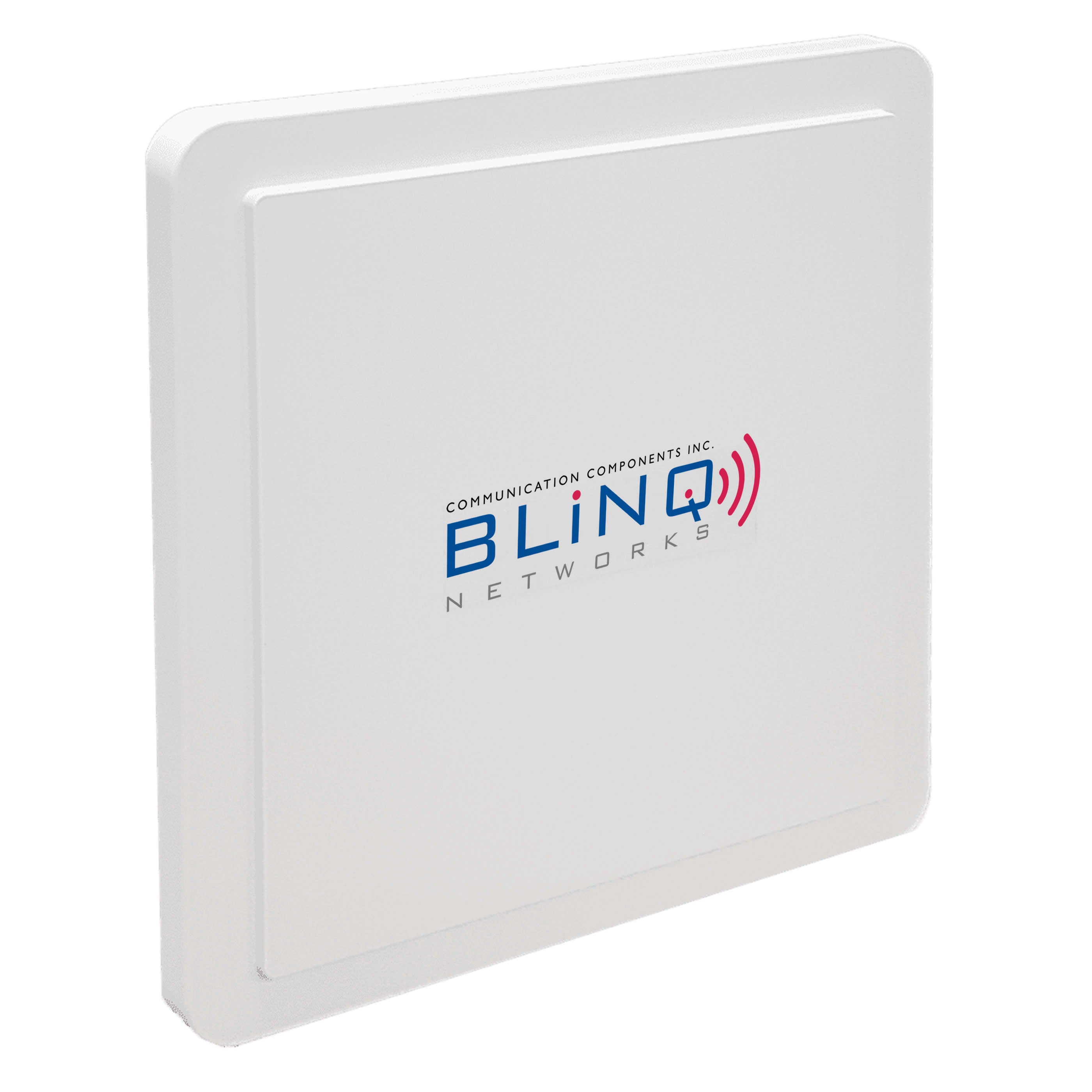

BLiNQ Networks FWC 110HG 3.5 High Gain LTE CPE [FWC-110HG-35] **OPEN BOX**

Out of stock
Regular price $300.00 USD

Product details

  • Type LTE
  • Vendor BLiNQ Networks
  • SKU FWC-110HG-35 OB

Documentation

BLiNQ Networks FW-35-CPE 3.5GHz Outdoor High Gain 20+ / -1.0dBi CPE CAT6 LTE MIMO Band 42 / 43 / 48


Product Specifications:
  • Base Modul: FWC-110HG-35
  • Peak Throughput: 220 Mbps (Config 2-7)
  • Carrier Aggregation: 2CC up to 20 MHz each
  • Frequency Band: TDD LTE Bands 42, 43, 48
  • Transmit Power: Up to +23 dBm
  • Tx Power Dynamic Range: 63 dB
  • Receiver Sensitivity: -93-95 dBm
  • Integrated Antenna Peak Gain: 20 ± 1.0dBi
  • Channel Bandwidth/Carrier: 10, 20MHz
  • MIMO: DL MIMO 2x2 & 4x2
  • LTE Compliance: 3GPP Release 10 & 11
Mechanical & Regulatory:
  • Dimensions: (L x W x H) 340 (L) 340 (W) 75(H)mm w/o mounting rib
  • PoE: 802.3at
  • Survival Wind Speed: > 200 km/hr
  • Weight: 2 Kg
  • Operating Humidity: 5 to 95
  • Operational Temperature: -40 to 55 °C
  • MTBF ODU: 300,000 at 55 ͦC
  • LTE: EN 301 908-1 V11.1.1 EN 301 908-13 V11.1.1
  • Safety: IEC 60950-1/EN 60950-1
  • EMC: Draft EN 301 489-52 V.1.1.0
  • Environmental: IP67
Networking & OAM:
  • Ethernet Ports: 802.3, IEEE 802.3u, IEEE 802.3ab
  • SIM Function: 1.8V, 3V SIM and USIM card
  • PIN/PUK Code: Yes
  • Stack: IPv4 , IPv6 , Dual
  • NAT/Dynamic NAT: Yes
  • Router Mode: Yes
  • Bridge Mode: Yes
  • Tunnel Mode: GRE, L2TP, IPsec, PPTP -available per request
  • DHCP Server in LAN: Yes (253 clients)
  • DNS Relay: Yes
  • DDNS Client: Yes
  • VPN Pass-Through – IPSec/PPTP/L2TP: Yes
  • UPNP: Yes
  • HTTP Server: Yes
  • ALG Support (FTP/SIP/…): Yes
  • Networking Debug/Testing IPerf, Ping , Trace-route
Device Management & Security:
  • WEB: Yes
  • SNMP: Yes
  • TR-069 (TR-0143): Yes (ready for IOT)
  • FOTA Upgrade: Yes (IOT with different network )
  • System Log/Diagnostic: Yes (chip set embedded tool)
  • User Name/Password Configuration: Yes
  • L2/L3 Firewall Basic/Port Forwarding/Port Trigger/DMS / Remote
  • WAN Ping / Remote Web Access Control
Product Includes:


(1) BLiNQ Networks FW-35-CPE
(1) PoE Adapter
(1) Power Cord
(1) Mounting Bracket
(1) CAT 5 Cable
