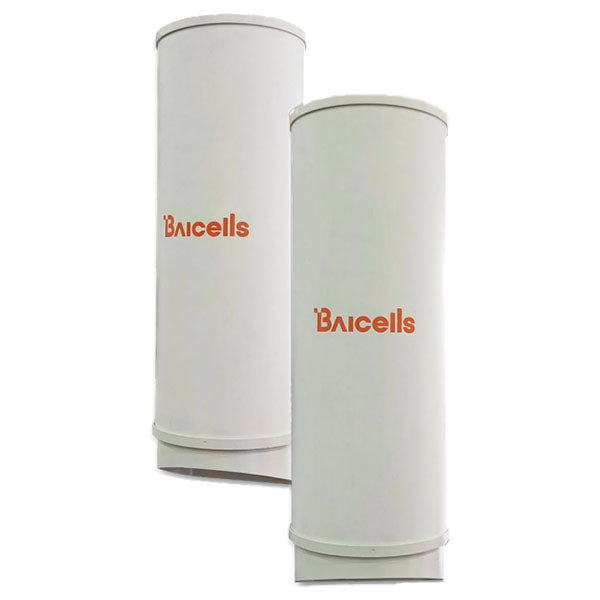

Baicells Nova 442i Outdoor TDD eNodeB Base Station [mBS31010]

In stock - 14 available
$5,999.00 USD

Product details

  • Type LTE
  • Vendor Baicells
  • SKU mBS31010

Documentation

Share on Social Media:

Description

The Baicells Nova442i is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x2W eNB operates in Carrier Aggregation (CA) mode or Dual Carrier (DC) mode.


In CA mode, Nova442i supports 2CC (two Component Carriers) DL/UL CA. 2CC DL/UL CA doubles DL/UL peak throughput compared to a single carrier by aggregating two separate spectrum resources into a virtual contiguous spectrum resource.


In DC mode, each carrier is treated as an independent cell, supporting 96+96 users, with each cell supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova442i in DC mode simplifies and streamlines the deployment of split sectors


In addition, HaloB (an embedded EPC option) is available on the Nova442i as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.


This product has a standard one-year warranty; an extended warranty is available.


Features:

  • Standard LTE TDD Band 48
  • GUI-based local and remote Web management
  • Excellent Non-Line-of-Sight (NLOS) coverage
  • Peak rate: Up to DL 290 Mbps with 2x20 MHz bandwidth
  • 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources
  • Suitable for private and public deployments; any IP based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
  • 96 RRC connected users per carrier (96+96 in DC mode); upgradeable to higher capacity in future releases
  • Built-in RF antenna and GPS antenna
  • Integrated small cell form factor for quick and easy installation
  • Configured out of the box to work with Baicells CloudCore
  • HaloB as embedded EPC solution
  • Supports Transparent Bridge Mode
  • Supports Citizens Broadband Radio Service (CBRS)
  • Plug-and-play with Self-Organizing Network (SON) capabilities
  • Interoperable with all standard LTE Evolved Packet Core (EPC)
  • Supports TR-069 network management interface
  • Lower power consumption, which reduces OPEX
